TIP-ON BLUMOTION combines the mechanical convenience of TIP-ON push-to-open with the proven soft-close action of BLUMOTION. A gentle touch opens the drawer, and a firm push activates smooth, quiet closing — all entirely mechanical.
Specifically designed for MOVENTO runner systems, it enables effortless, handle-free drawer operation. Its wide trigger range makes access intuitive, and synchronisation is recommended to optimise performance and extend the trigger range.
Features
● Adjustable to a narrow 2.5 mm front gap
● Four-way adjustment ensures precise and even drawer front alignment
● Integrated, tool-free depth adjustment via turnable wheel
● Tool-free assembly for the TIP-ON BLUMOTION unit and components
Specifications

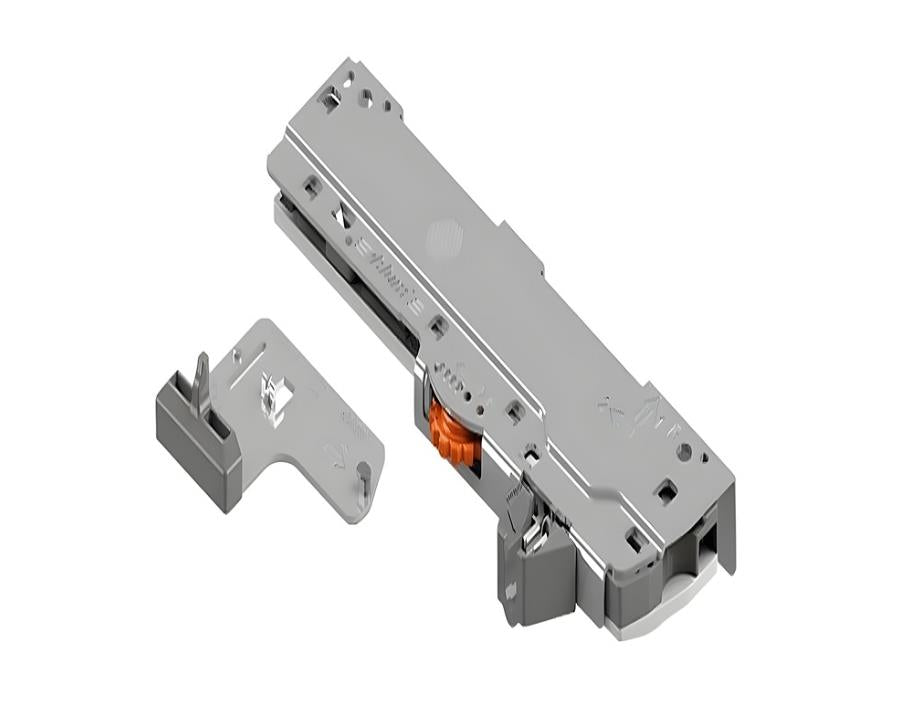

● Type: TIP-ON BLUMOTION unit
● Compatible Systems: LEGRABOX, MOVENTO
● Dynamic Load Bearing: 40 kg
● Nominal Length: 350–550 mm
● Description: Type L3
● Supported Pull-Out Weight: 15–40 kg
● Trigger Path: 1 mm
● Trigger Force: 22 kg
● Clamping Distance: 41.5 mm
● Soft-Close Activation Distance: 27 mm (BLUMOTION/BLUMATIC), 12 mm (self-closing)
● Material: Nylon and steel
● Colour/Finish: Light grey (RAL 7035)
● Version: Optional component
● Fixing Method: Slip-on
● Depth Adjustment: Spiral screw, ±3 mm

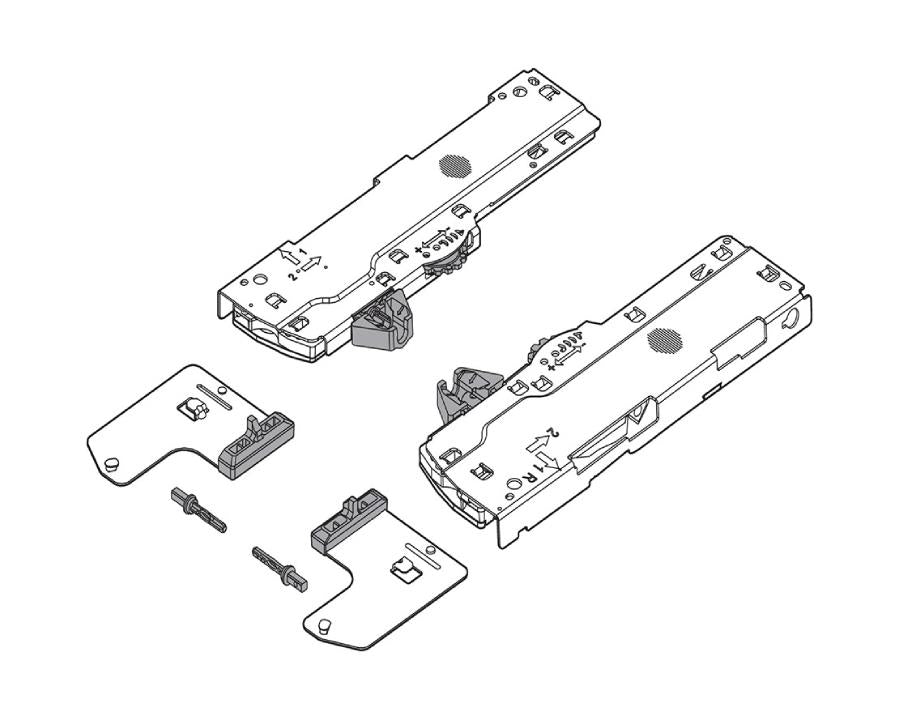

● Included: Latch and 2 adapters

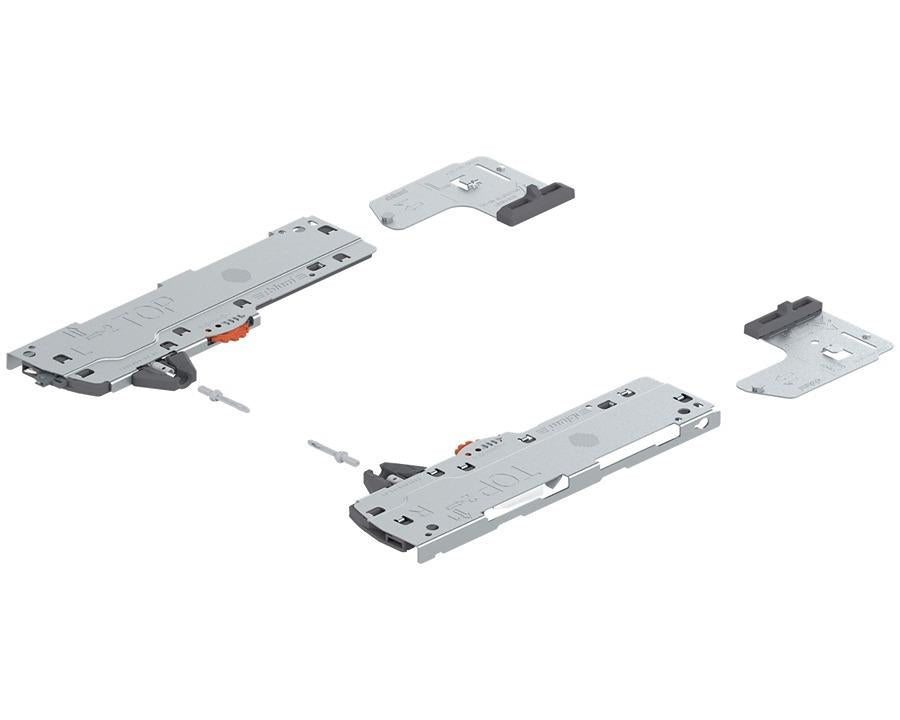

● Package Contents: Left and right units
● Packaging Type: Commercial
