Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley
Blum's ingenuity and engineering excellence are embodied in our advanced hinge systems. Known for their precision, our hinges offer reliable performance, enhanced adjustability, and a visually appealing design. With a 3-dimensional adjustment feature, these hinges make installation easier and ensure smooth functionality.
Built to endure over 200,000 cycles of opening and closing, our hinge range serves a variety of applications, including wood, glass, and aluminum frame doors, with solutions for both thin and thick doors. Special solutions are also available for corner and angled door configurations.

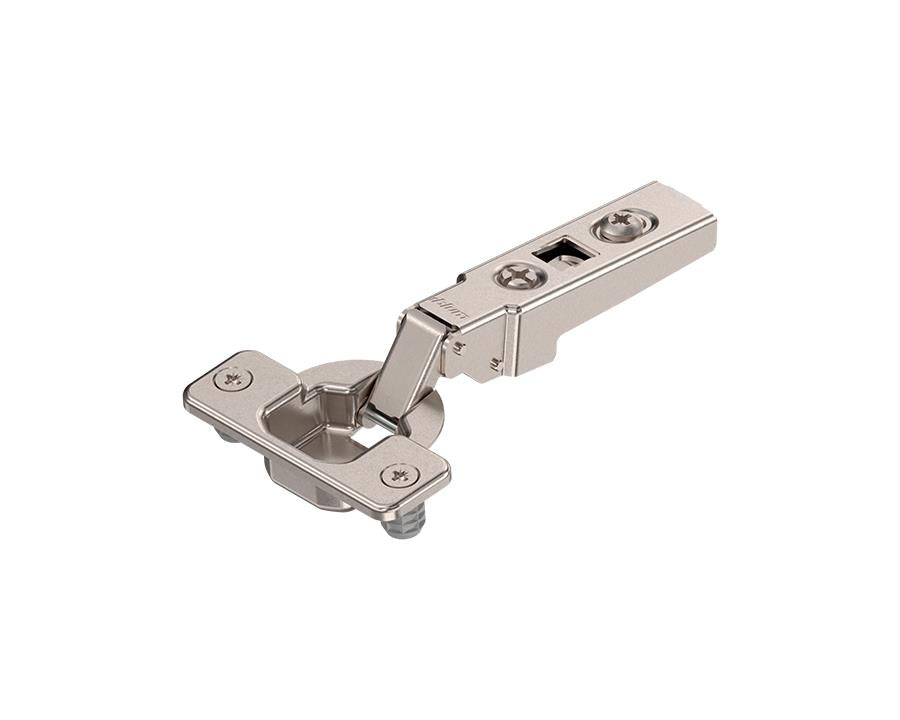

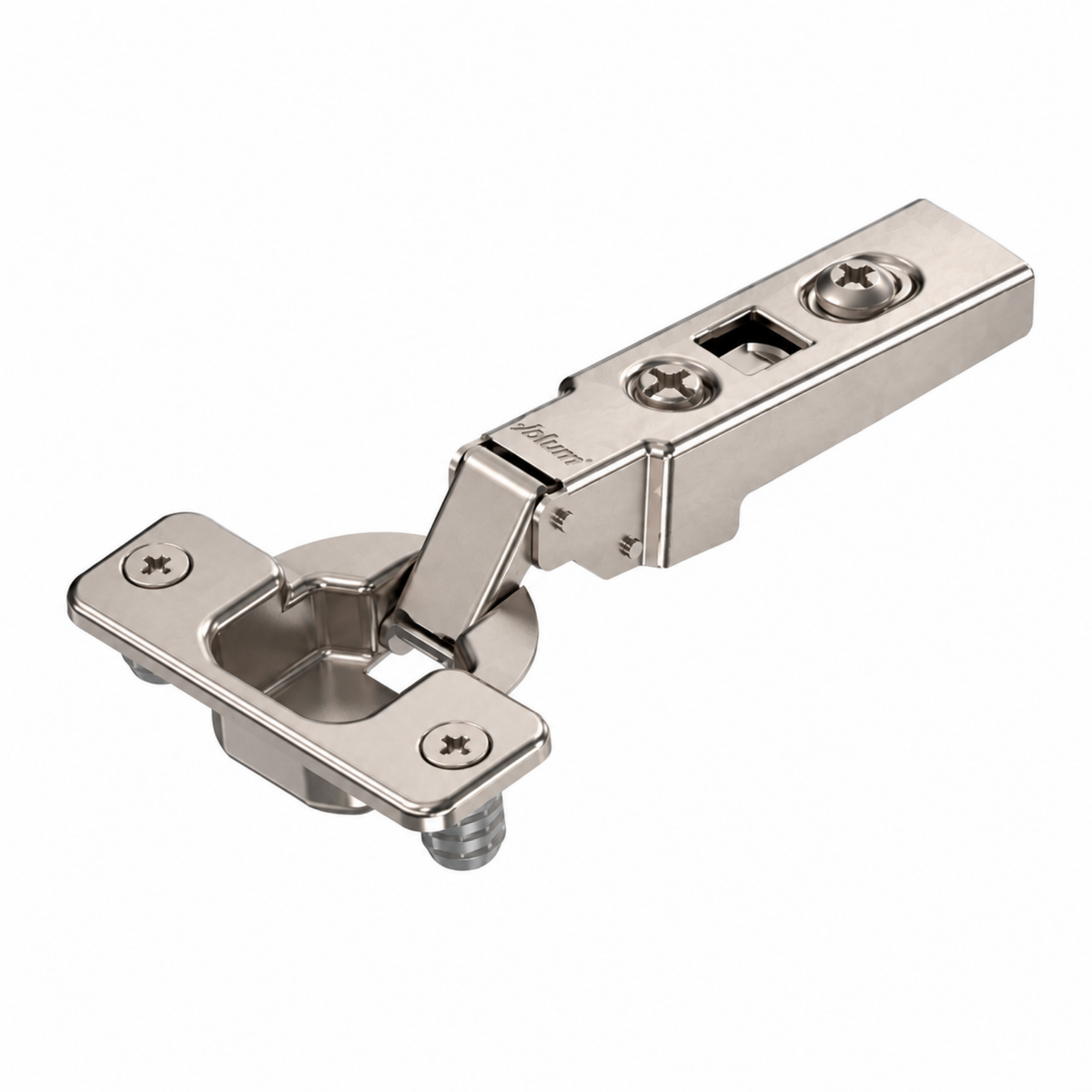

Our CLIP top sprung hinges are compatible with all CLIP mounting plates and offer effortless side, height, and depth adjustments using a spiral screw mechanism. Additionally, several mounting plates provide cam height adjustment. The tool-free attachment of door fronts makes assembly quick and convenient.

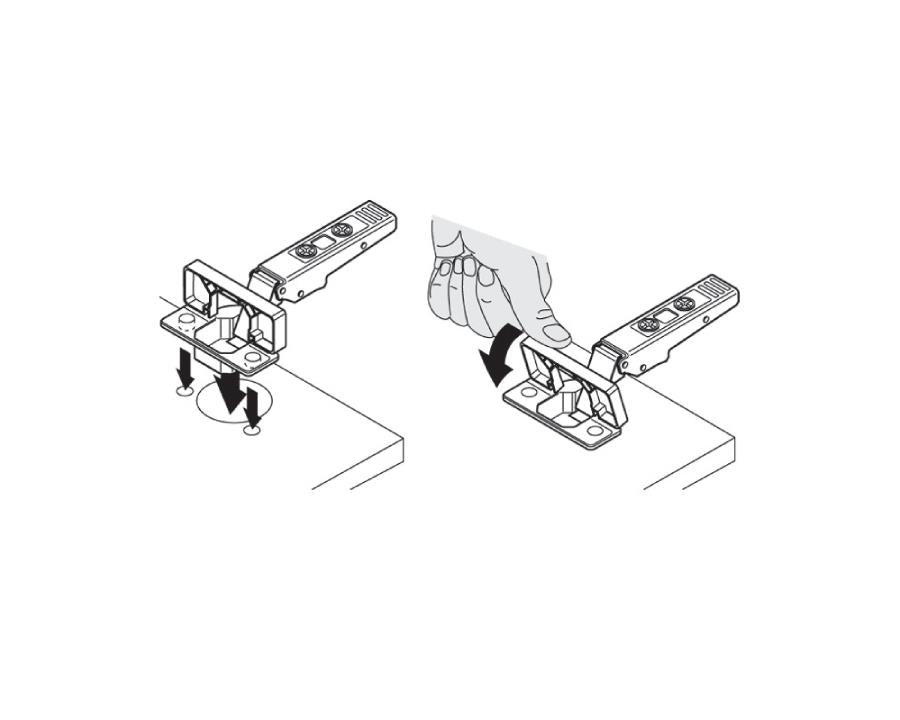

Blum's proven CLIP mechanism simplifies door-to-cabinet assembly, ensuring a fast and easy installation process while guaranteeing long-lasting, reliable door operation.
Key Features:
Endurance-tested for over 200,000 opening and closing cycles
Compatible with a variety of door materials and thicknesses
3-dimensional adjustment for optimal alignment
Quick and tool-free assembly
Specifications:
Application: Standard hinge

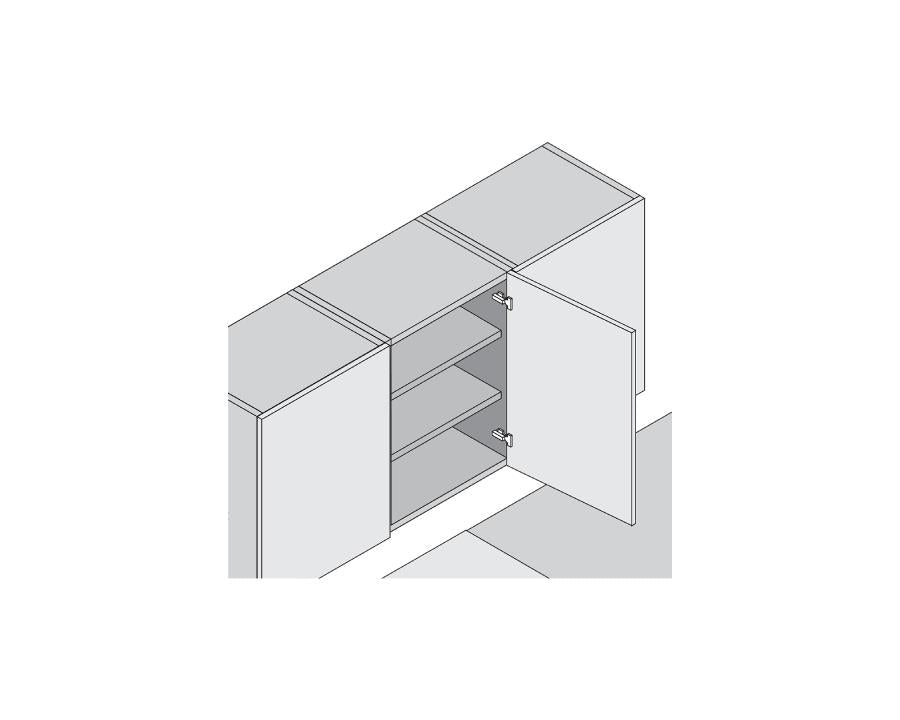

Cranking: Overlay application
Opening angle: 100°
Closing mechanism: Spring-assisted
Cover cap types: 90M2503, 70.1553
Boss material: Steel, nickel-plated
Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Arm material: Steel, nickel-plated
Collision measurement (arm height): 20mm

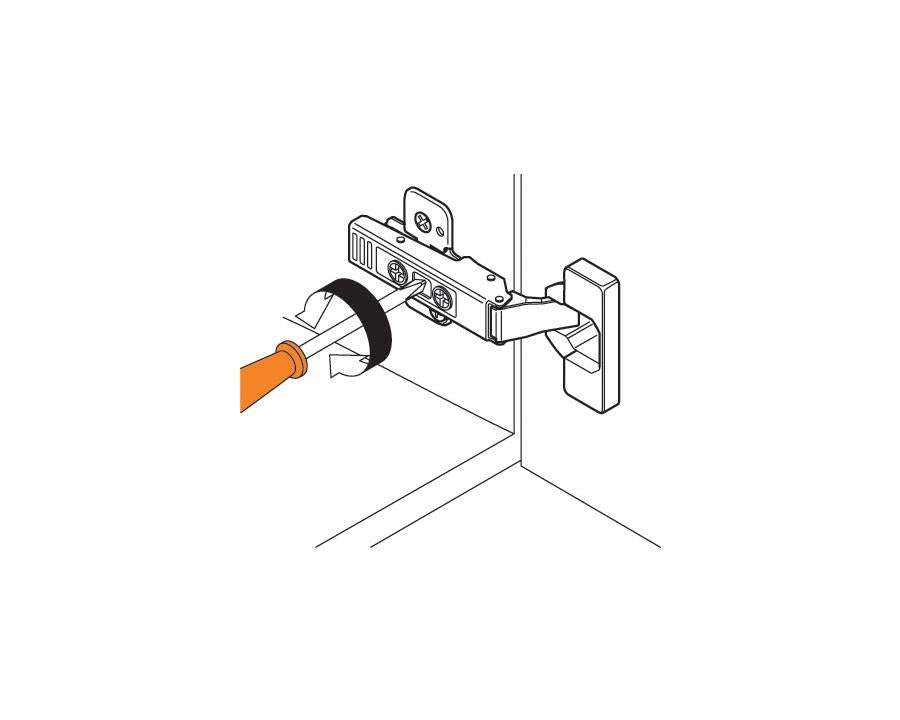

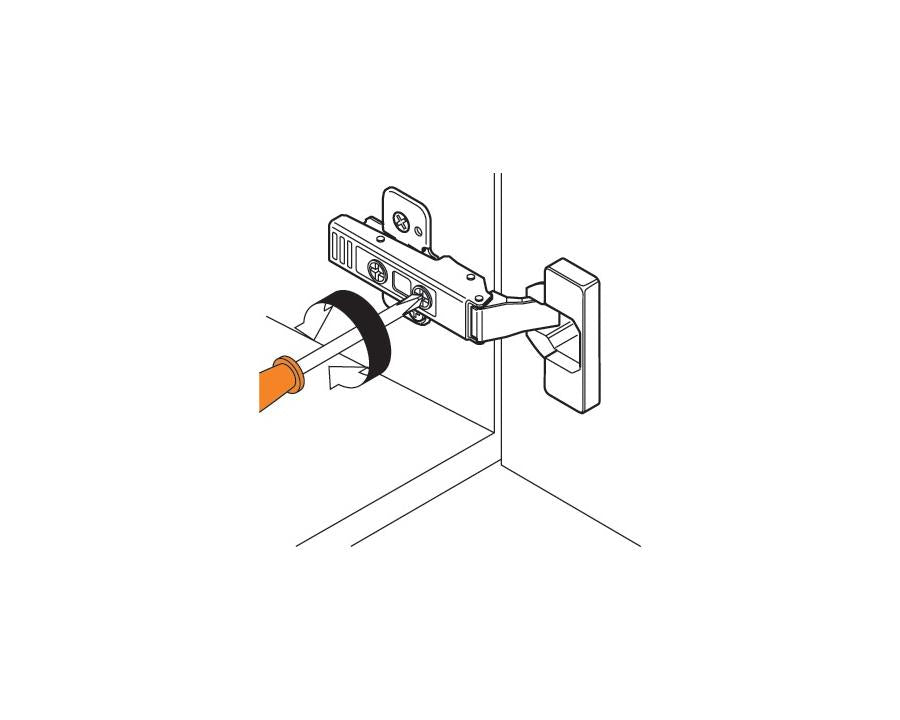

Adjustment type: Side and depth with screw (+/-2mm side, +3/-1mm depth)
Gap: 1.2mm
Packaging: Industrial packing (1 piece per package)
