Blum Hinge Systems – Advanced Functionality by Wilson and Bradley
Blum's innovation and ingenuity are reflected in our hinge systems, offering reliable performance, easy adjustment, and an attractive design. Our hinges provide 3-dimensional adjustability, making them versatile and simple to install.
Built to withstand over 200,000 opening and closing cycles, our hinge range accommodates various applications, including wood, glass, and aluminium frame doors. We also offer solutions for both thin and thick doors, along with specialized options for blind corner and angled applications.
Blum's CLIP top sprung hinges are compatible with all CLIP mounting plates and allow easy adjustments for side, height, and depth using a spiral screw mechanism. Additionally, several mounting plates come with cam height adjustment, and door fronts can be quickly attached or removed without the need for tools.
Thanks to Blum's reliable CLIP mechanism, door-to-cabinet assembly is quick, tool-free, and hassle-free, ensuring every door operates smoothly.
Key Features:
Tested to withstand over 200,000 opening and closing cycles
Versatile for various door materials and thicknesses
3-dimensional adjustability for precise alignment
Easy, tool-free assembly and adjustment
Specifications:

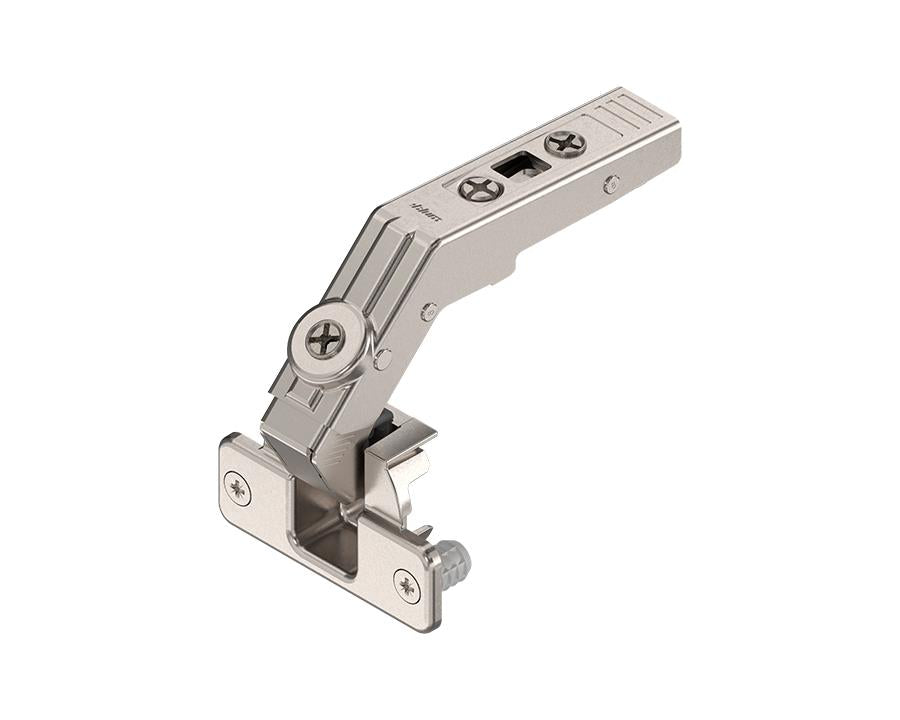

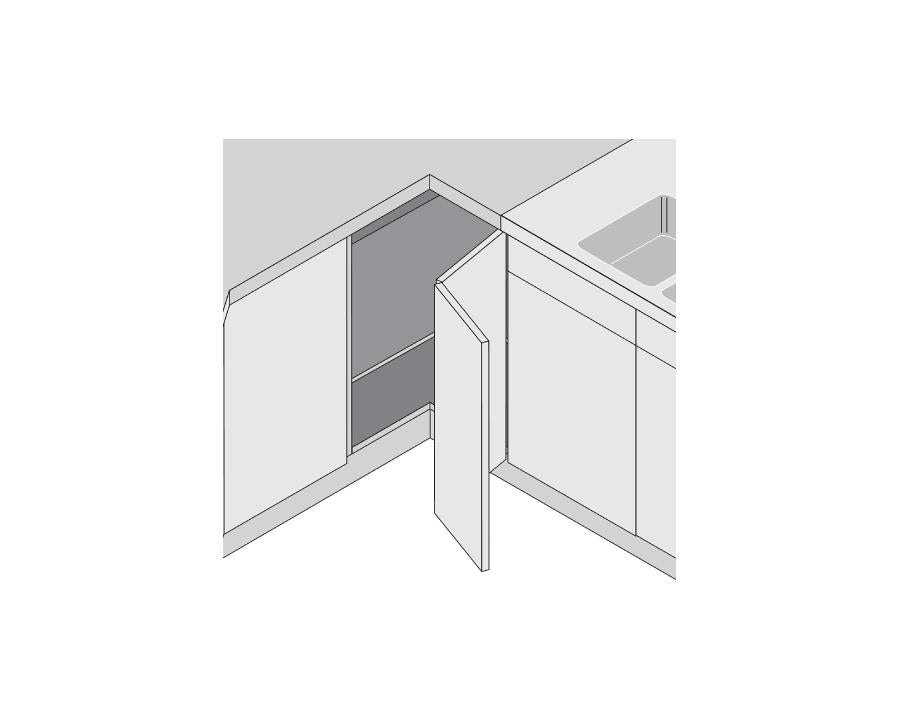

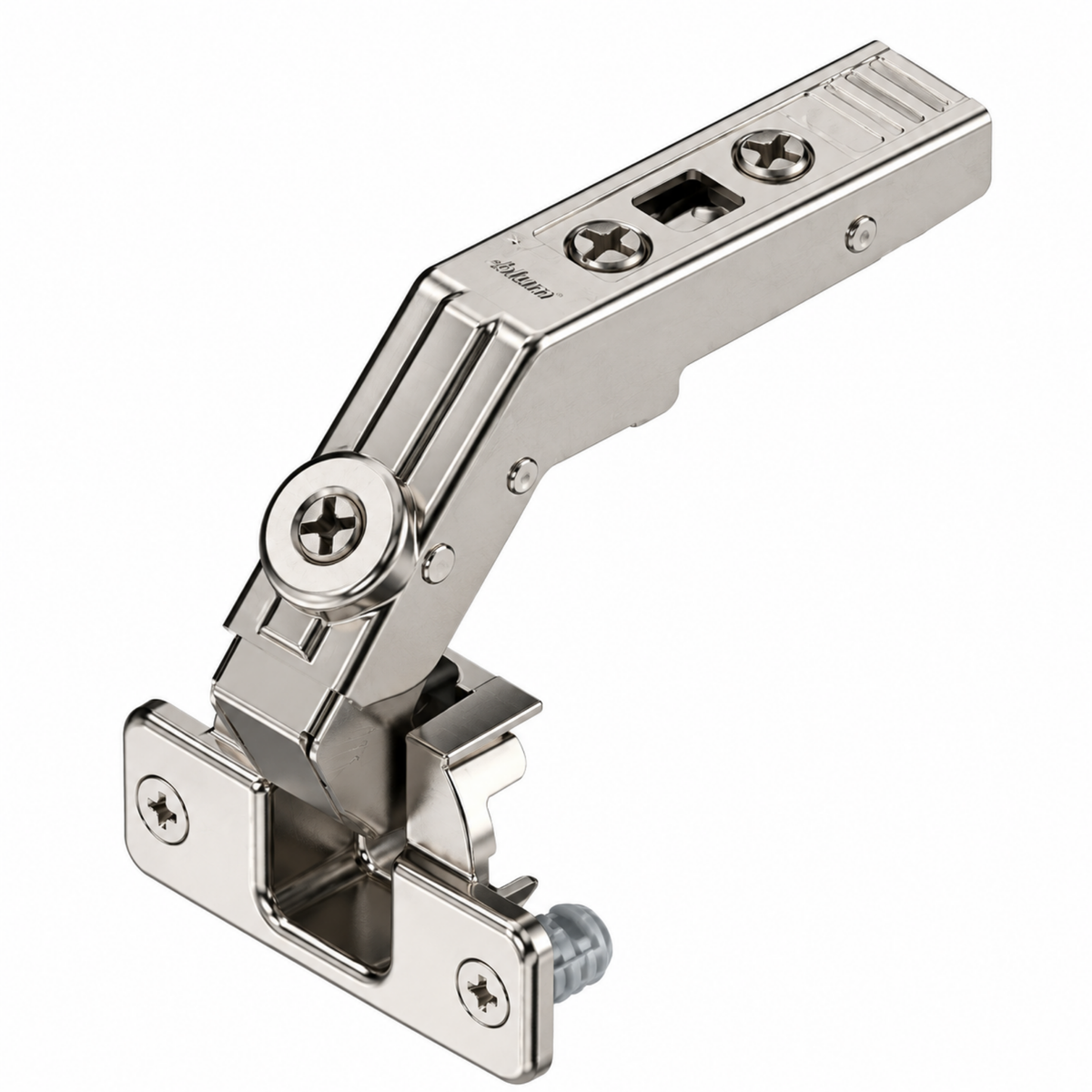

Application: Bi-fold hinge
Opening angle: 60°
Closing mechanism: Spring-assisted
Cover cap types: 70.1503 (BPC10021)
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Boss drilling depth: 11.5mm
Arm material: Steel, nickel-plated
Collision measurement (arm height): 20.5mm
Factory setting (fixed dimension): 0mm

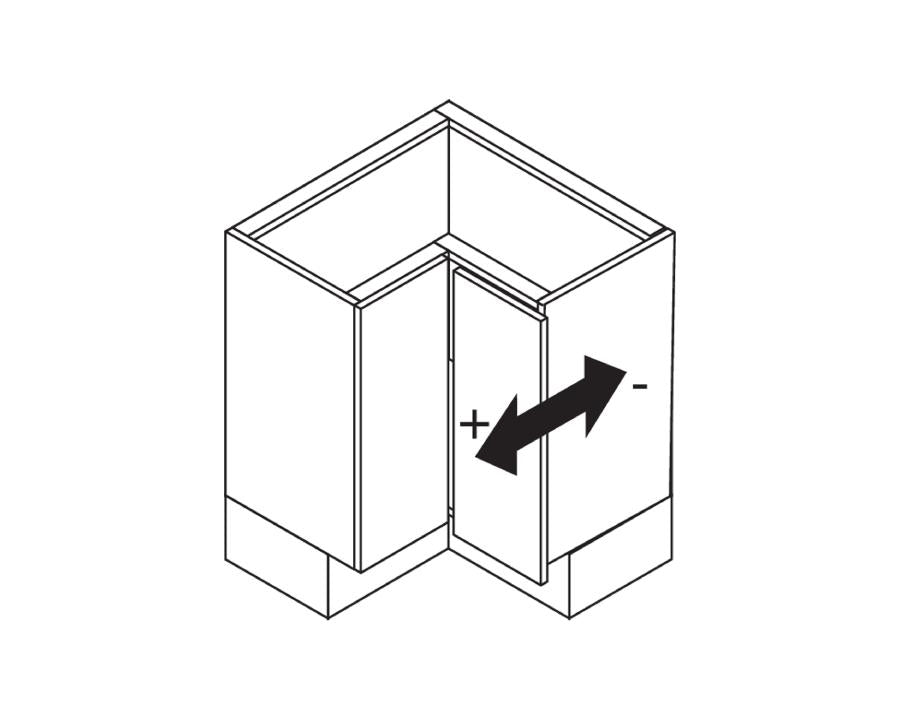

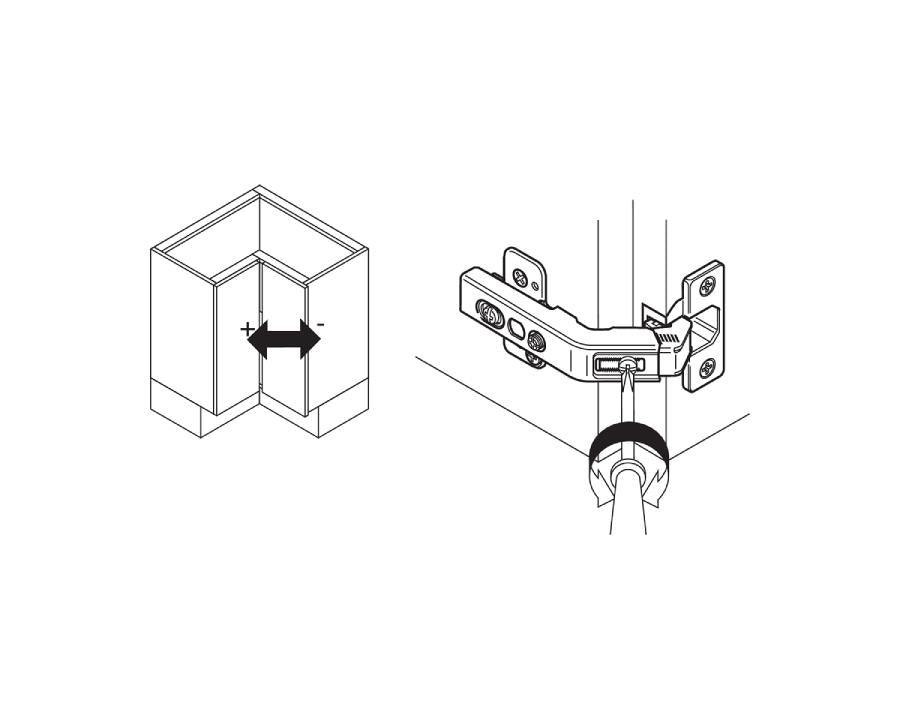

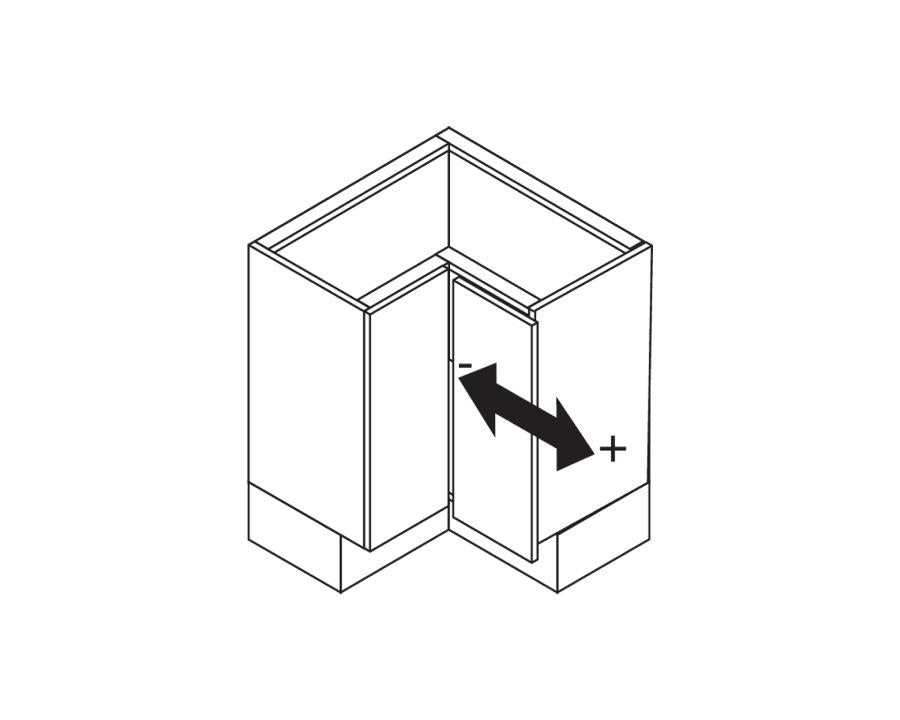

Side adjustment: +/-2mm (with screw)

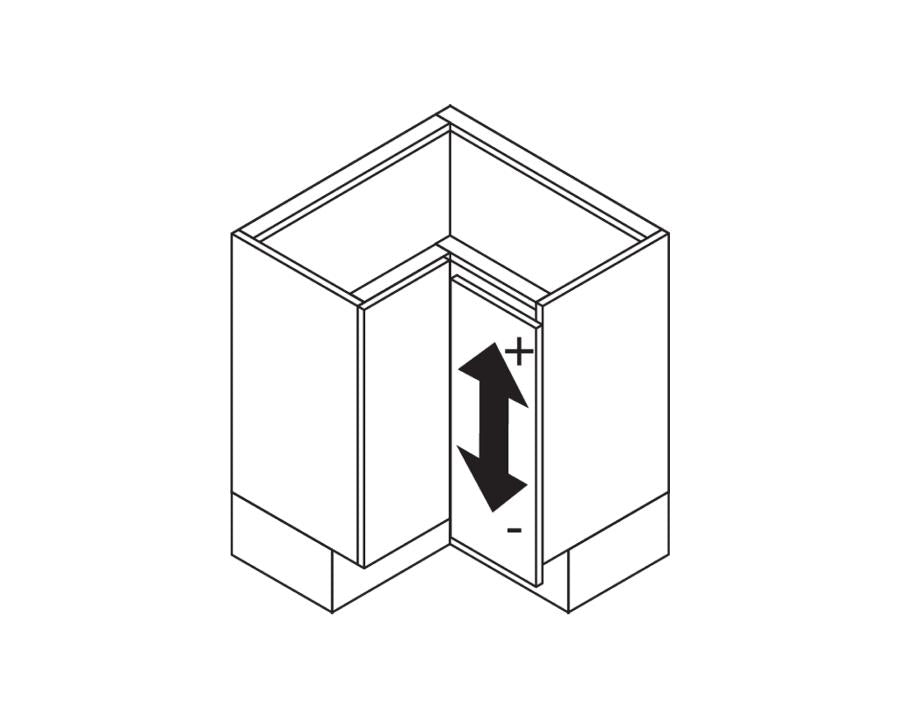

Gap adjustment: +7.2/-4.2mm
Depth adjustment: +3/-2mm (via spiral screw)
Gap: 1.5mm
Packaging: Industrial packing (1 piece per package)
