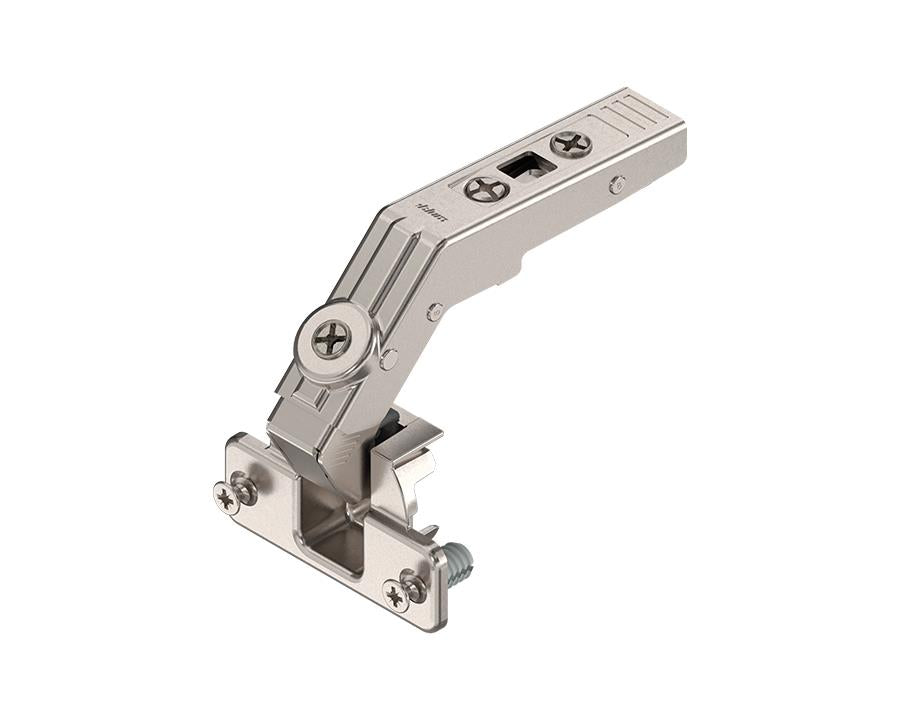

Blum CLIP top Bi-Fold Hinge E Dowel 60 Degree. Boss: EXPANDO 79T853E by W&B

Blum CLIP top Bi-Fold Hinge E Dowel 60 Degree. Boss: EXPANDO 79T853E by W&B

Regular price $15.53 AUD
Regular price Sale price $15.53 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Wilson and Bradley Bi-Fold Hinge with CLIP Mechanism

Wilson and Bradley hinges deliver top-notch functionality with cutting-edge design and durability. Engineered to meet the demands of modern cabinetry, our hinges offer smooth, reliable function, quick adjustments, and a sleek appearance. Whether used on wood, glass, or aluminum frame doors, or for unique configurations like bi-folds and angled setups, our hinges are crafted to withstand over 200,000 opening and closing cycles.

Our CLIP mechanism ensures tool-free, easy installation, making assembly quick and hassle-free. Once in place, the hinges allow for smooth, precise door movement every time.

Features:

  • Tested to last over 200,000 cycles for maximum durability
  • Ideal for a wide range of applications, including bi-fold doors
  • 3-dimensional adjustment for optimal door alignment
  • CLIP mechanism for quick and tool-free assembly

Specifications:

  • Application: Bi-fold hinge
  • Opening angle: 60°
  • Closing mechanism: With spring
  • Cover cap type: 70.1503 (BPC10021)
  • Boss material: Zinc, nickel-plated finish
  • Boss assembly: EXPANDO
  • Flange dimensions:
    • Width: 57mm
    • Length: 20mm
    • Height: 3.2mm
  • Diameter hinge boss drilling: 35mm
  • Fixing holes diameter: 8mm
  • Distance between drillings: 45mm
  • Boss drilling depth: 11mm
  • Minimum/Maximum drilling distance: -5mm
  • Arm material: Steel, nickel-plated finish
  • Collision measurement (hinge arm height): 20.5mm
  • Fixed dimension/factory setting: 0mm
  • Side adjustment: +/- 2mm (with screw)
  • Gap adjustment: +7.2/-4.2mm
  • Depth adjustment: +3/-2mm (spiral screw)
  • Gap: 1.5mm
  • Item package: 1 piece
  • Packaging: Industrial packing

Note: All plates are sold separately
