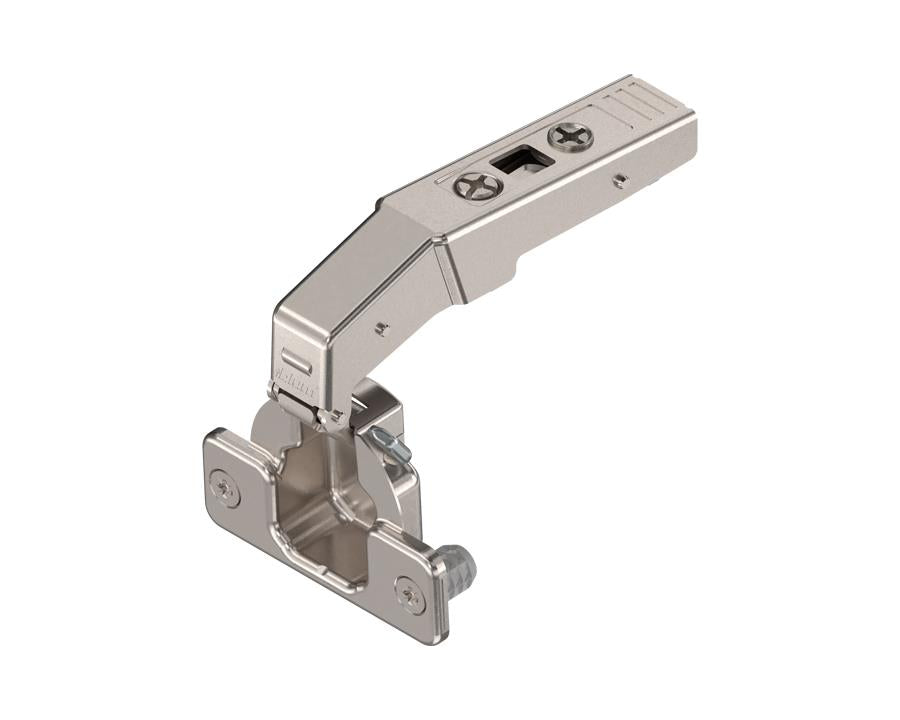

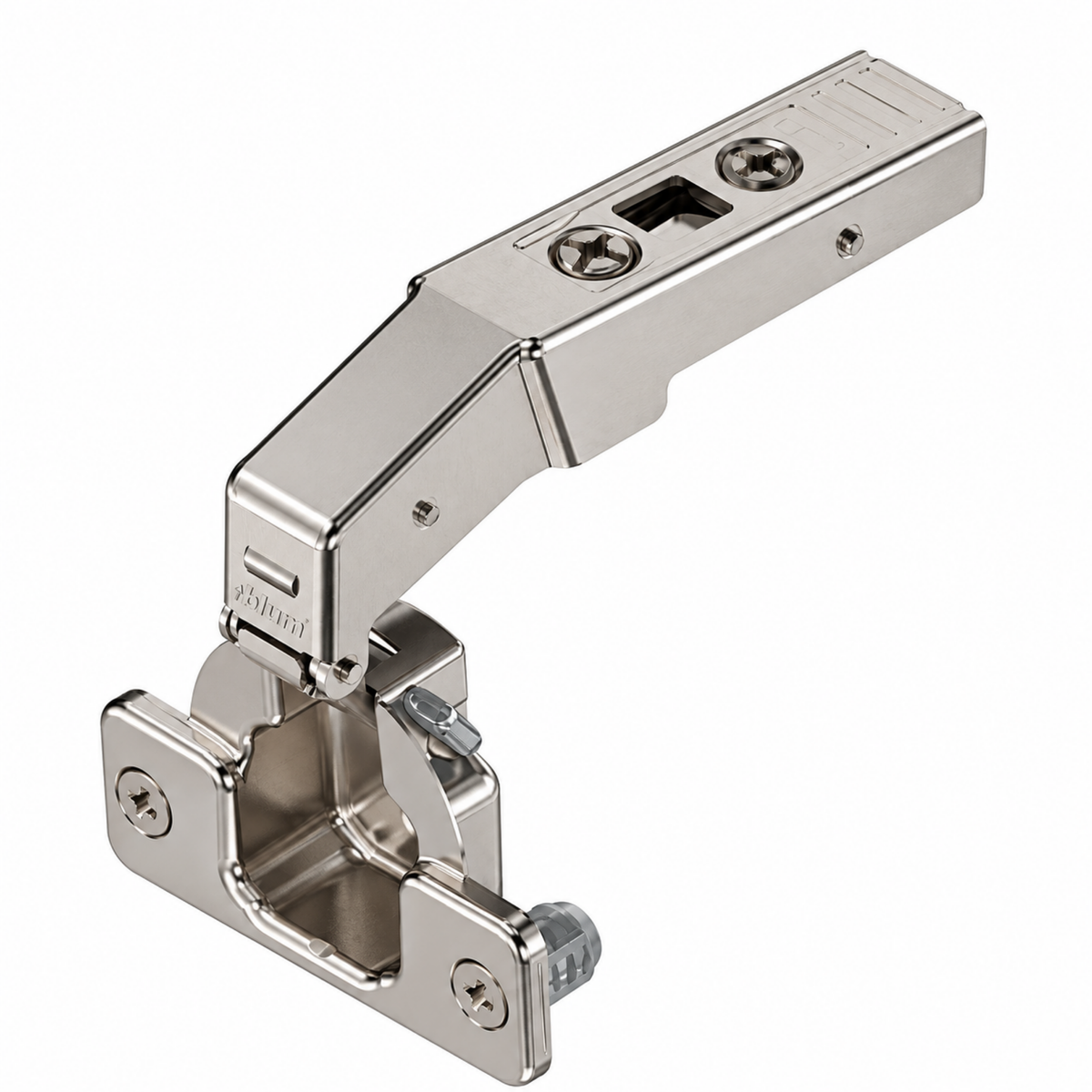

Blum CLIP top Blind Corner hinge 95 Degree Inset Application Boss knock-in by W&B

Blum Hinge Systems – Advanced Functionality by Wilson and Bradley

Blum's innovative approach and engineering excellence result in hinges that are renowned for their reliable performance, enhanced adjustability, and sleek design. Our hinge systems offer 3-dimensional adjustability, making them versatile and easy to install.

Engineered to withstand over 200,000 opening and closing cycles, Blum's hinge range is suitable for a variety of applications, including wood, glass, and aluminium frame doors. Our solutions also cover both thin and thick doors, with specialized offerings for blind corners and angled door applications.

Blum’s trusted CLIP mechanism makes assembling doors to cabinets quick, tool-free, and simple, ensuring each door opens and closes with seamless reliability.

Key Features:

• Tested to endure over 200,000 opening and closing cycles
• Suitable for all applications
• 3-dimensional adjustment for precise alignment
• Simple and tool-free assembly

Specifications:

• Application: Blind corner hinge
• Opening angle: 95°
• Closing mechanism: Spring-assisted
• Cover cap types: 90M2503, 70.1503
• Boss material: Steel, nickel-plated
• Boss assembly: Knock-in
• Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
• Hinge boss drilling diameter: 35mm
• Fixing hole diameter: 8mm
• Distance between holes: 45mm
• Eccentric positioning: 9.5mm
• Boss drilling depth: 12.3mm
• Arm material: Steel, nickel-plated
• Collision measurement (arm height): 21mm
• Factory setting (fixed dimension): -8mm
• Side adjustment: +/-2.5mm (via screw)
• Depth adjustment: +/-1mm (via spiral screw)
• Gap: 3mm
• Packaging: Commercial packing (1 piece per package)

Note: All plates are sold separately
