Blum Hinge Systems by Wilson and Bradley
Blum hinge systems offer exceptional reliability, smooth operation, and innovative design. Engineered for both functional excellence and aesthetic appeal, they provide easy 3-dimensional adjustment, enhanced assembly efficiency, and long-lasting durability. Tested to endure over 200,000 cycles of opening and closing, Blum hinges are ideal for a range of materials, including wood, glass, and aluminum-framed doors, as well as thin and thick doors. Specialized solutions are available for unique applications like blind corners and angled doors.

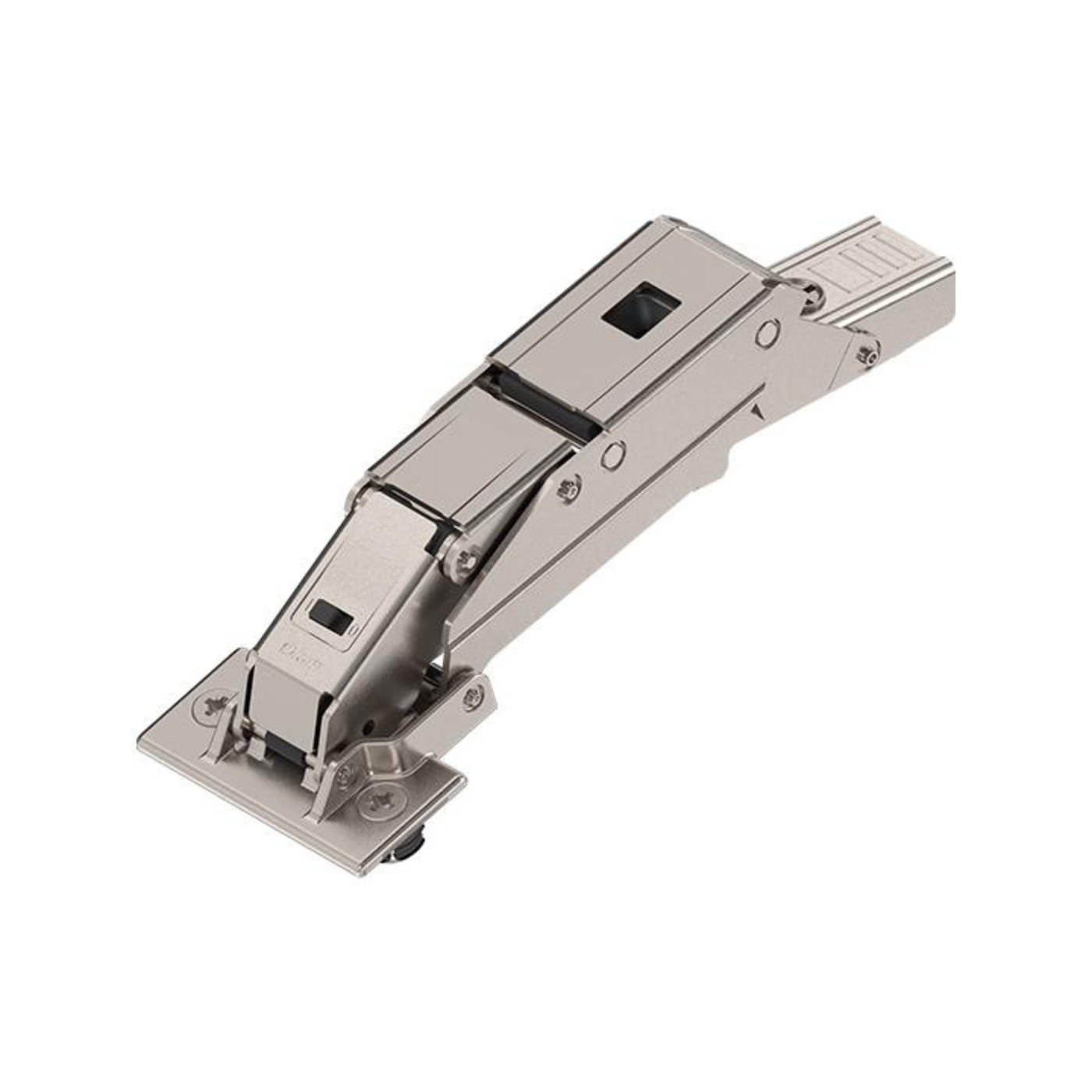

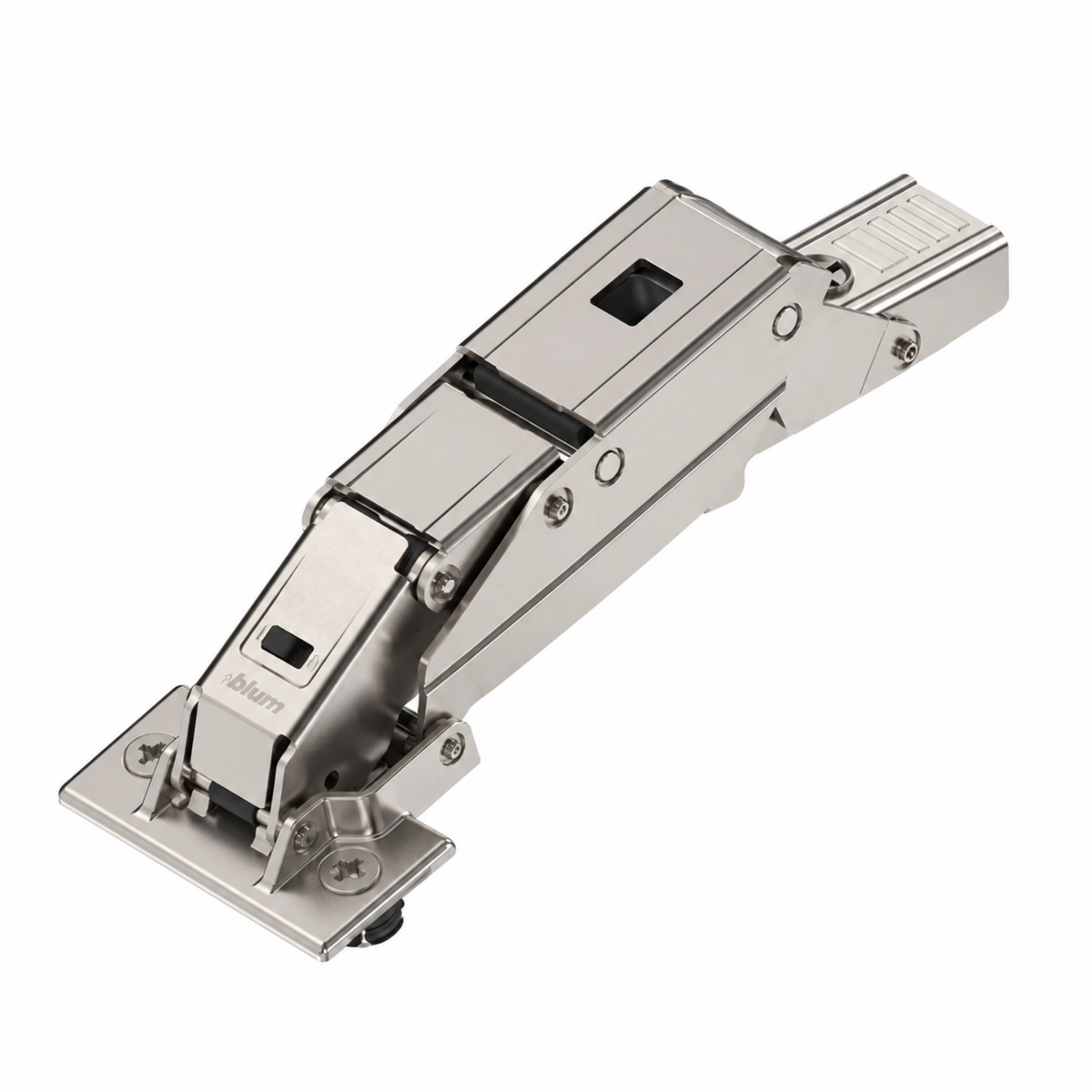

The CLIP top BLUMOTION system ensures a soft, controlled closing action for doors of all sizes and weights. The BLUMOTION feature can be deactivated on one or both hinges for optimal door closure speed. Available in 95°, 107°, 110°, and 155° angles, this system uses Blum's CLIP technology for quick, tool-free assembly, and easy 3-dimensional adjustments.
For thinner doors (8mm - 14mm thickness), Blum’s EXPANDO T fixing system offers versatile, secure solutions with a steel anchor for harder materials and plastic jaws for softer ones. The system allows for innovative design flexibility and a secure fit, with a fixed drilling diameter of 10mm and minimal drilling depth.
Blum's CLIP mechanism ensures that every door equipped with Blum hinges opens and closes smoothly, with minimal effort and maximum reliability.
Key Features:
- Tested to 200,000 cycles for long-term durability
- Versatile for a wide range of applications
- 3-dimensional adjustment for easy installation
- Quick and tool-free assembly with Blum's CLIP system
Specifications:
- Application: Suitable for thin doors
- Opening Angle: 110°
- Closing Mechanism: Spring-based with BLUMOTION
- Cover Cap: Available in types 70.4503 (BM704503) and 70T7504-boss (BM70T7504)
- Flange: Width 44mm, Length 22mm, Height 2.2mm
- Drilling Requirements: 10mm hole diameter, 32mm hole spacing
- Side Adjustment: +/- 2mm with screw
- Depth Adjustment: +3/-2mm with spiral screw
- Gap: 1.5mm
- Package: Includes 1 piece, industrial packing
Note: Plates are sold separately.
