Blum Hinges: Innovative Solutions by Wilson and Bradley
Blum hinges exemplify ingenuity and design excellence, delivering unparalleled functionality with a focus on reliable performance, easy adjustment, and appealing aesthetics. Offering 3-dimensional adjustment, Blum hinges ensure precise door alignment for any application.
Built to withstand up to 200,000 cycles of opening and closing, our hinges are suitable for wood, glass, and aluminum frame doors, as well as both thin and thick doors. We also offer specialized solutions, such as those for blind corner and angled doors.

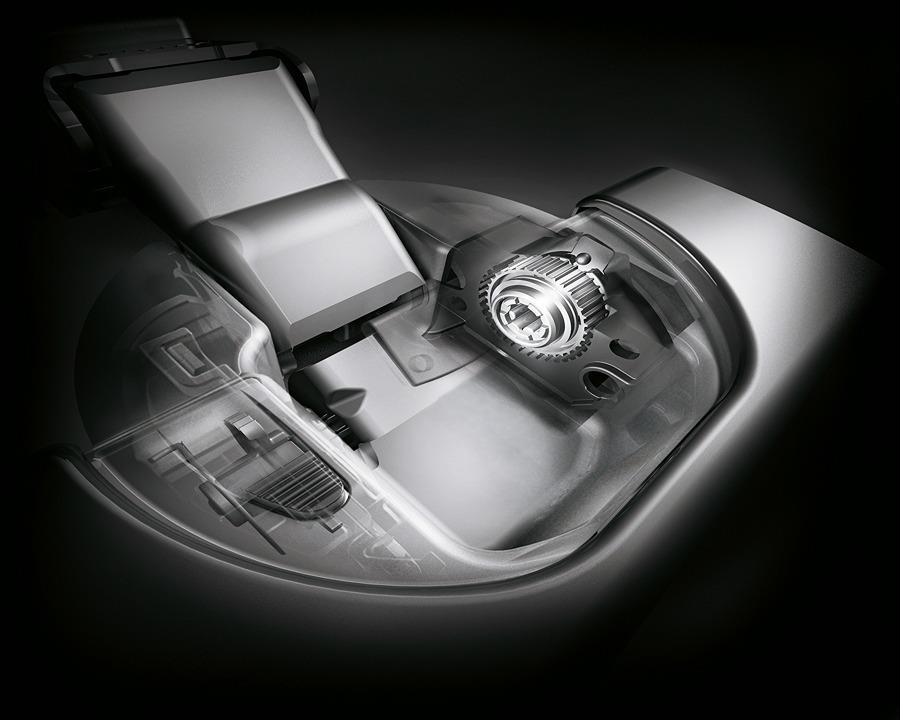

The CLIP top BLUMOTION system seamlessly adapts to each door’s dynamics, ensuring a smooth and controlled closing action—regardless of the door's size, weight, or the force used. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges for optimized speed control. Thanks to CLIP technology, doors are easy to mount and adjust, with no tools required for 3-dimensional and cam adjustments.
Blum’s time-tested CLIP mechanism simplifies door-to-cabinet assembly, making the process fast, tool-free, and straightforward. Every Blum-equipped door offers reliable ease of operation.
Key Features:
- Rigorously tested for 200,000 opening and closing cycles for maximum durability
- Versatile, fitting a wide range of applications
- 3-dimensional adjustment for precision alignment
- Easy, tool-free assembly and adjustment

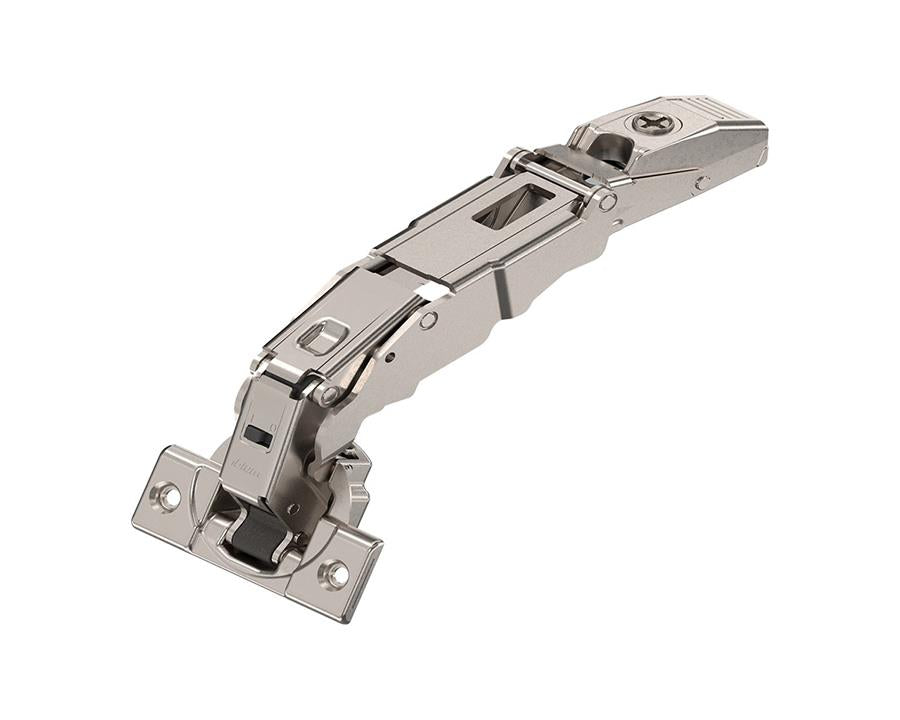

Specifications:
- Application: Wide-angle hinge for zero protrusion
- Cranking: Overlay application
- Opening Angle: 155°
- Closing Mechanism: Spring-assisted
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 70.4503 (BM704503), 70T7504-Boss cover cap
- Boss Material: Steel, nickel-plated finish
- Boss Assembly: Screw-on
- Flange Dimensions: Width: 57mm, Length: 22mm, Height: 3.2mm
- Hinge Boss Drilling: 35mm diameter
- Fixing Holes: 8mm diameter, 45mm distance between holes
- Eccentric Position of Fixing Holes: 9.5mm
- Boss Drilling Depth: 11.7mm
- Minimum/Maximum Drilling Distance: 3mm/8mm
- Arm Material: Zinc, nickel-plated finish
- Collision Measurement: 62mm arm height
- Factory Setting: 11mm
- Side Adjustment: +/- 2mm (screw-driven)
- Depth Adjustment: +3/-2mm (spiral screw)
- Gap: 1.5mm
- Item Package: 1 piece
- Packaging: Industrial packing
Note: Plates sold separately.
