Blum Hinges: Innovative, Reliable, and Adjustable – Wilson & Bradley
Blum hinge systems combine ingenuity and inventiveness to create functionality that is unique in the industry. Our hinges offer reliable performance, enhanced adjustability, and ease of assembly—all while maintaining an attractive design. With 3-dimensional adjustment capabilities, Blum hinges are engineered to fit perfectly in any setting.
Constructed to endure over 200,000 opening and closing cycles, our hinges provide solutions for a wide range of applications including wood, glass, and aluminum frame doors, as well as both thin and thick doors. We also offer specialized solutions, such as blind corner and angled applications.
The CLIP top BLUMOTION system adapts to the unique dynamics of each door, ensuring a smooth closing action regardless of the size, weight, or force used to close the door. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges to allow for tailored closing speeds. Using CLIP technology, doors can be quickly snapped on and off with easy 3-dimensional and cam adjustments.
The CLIP mechanism makes assembly quick and tool-free, ensuring every door equipped with Blum hinges opens and closes with ease.
Key Features
- Durability: Tested to withstand over 200,000 opening and closing cycles for long-lasting performance.
- Versatility: Suitable for wood, glass, aluminum frame doors, as well as thin and thick doors.
- 3-Dimensional Adjustment: Allows for precise alignment and easy adjustments.
- Tool-Free Assembly: Quick and easy door-to-cabinet assembly thanks to the CLIP system.
- Smooth and Controlled Closing: BLUMOTION ensures silent and soft closing for doors of all sizes and weights.
Specifications

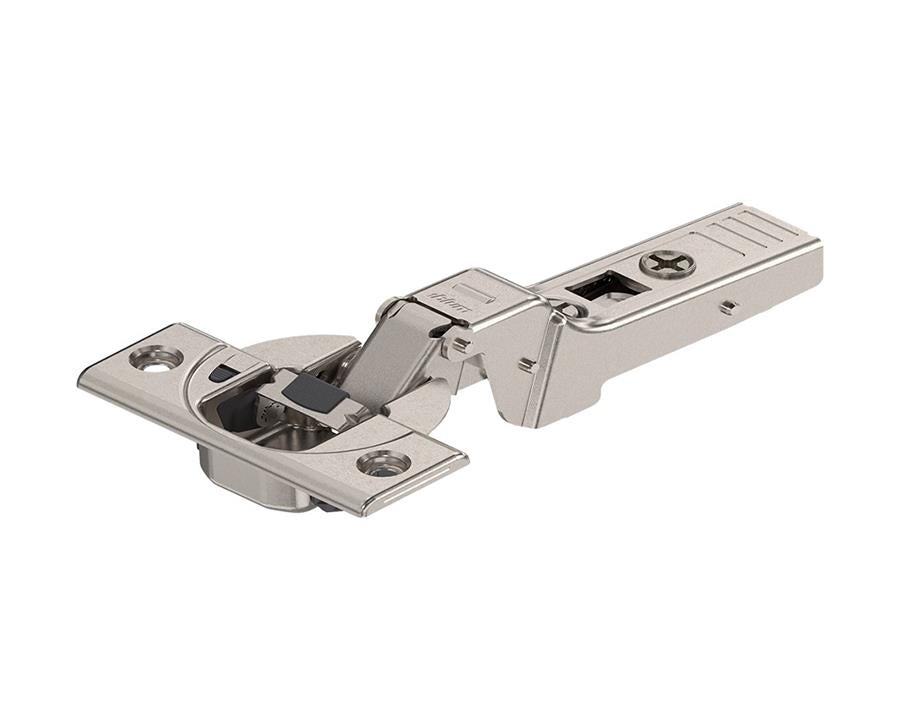

- Application: Profile door hinge
- Cranking: Dual application
- Opening Angle: 95°
- Closing Mechanism: Spring-assisted
- Hinge Variant: Integrated BLUMOTION
- Cover Cap Types: 94M3603, 70.1663, 70T3504 (BHBC)
- Boss Material: Steel, Nickel-plated

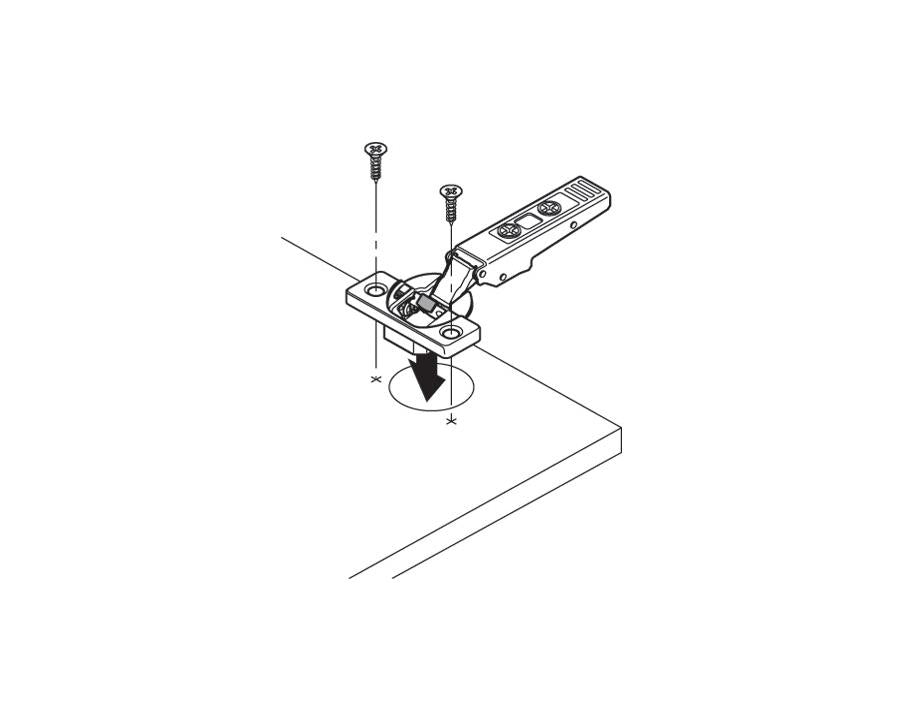

- Boss Assembly: Screw-on
- Flange Dimensions: Width: 57mm, Length: 22mm, Height: 3.2mm
- Diameter of Hinge Boss Drilling: 35mm
- Distance Between Drillings: 45mm
- Eccentric Position of Fixing Holes to Hinge Boss Hole: 9.5mm
- Boss Drilling Depth: 13mm
- Minimum/Maximum Drilling Distance: 3mm/7mm
- Arm Material: Steel, Nickel-plated finish
- Collision Measurement (Hinge Arm Height): 31mm
- Fixed Dimension/Factory Setting: 1.5mm
- Side Adjustment: +/-2mm (Screw-driven)
- Depth Adjustment: +3/-2mm (Convenient with spiral screw)
- Gap: 1.5mm
- Item Package: 1 piece
- Packaging: Commercial packing (1 piece)
Note: Plates are sold separately.
