Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley
Blum’s ingenuity and engineering excellence define the performance and functionality of our hinge systems. With a focus on reliable operation, ease of adjustment, and stylish design, our hinges feature 3-dimensional adjustability for precise alignment and smooth performance.
Designed to endure over 200,000 opening and closing cycles, Blum hinges are ideal for a wide variety of applications, including wood, glass, and aluminum frame doors. Whether you’re working with thin or thick doors, we offer specialized solutions for angled or blind corner configurations as well.
Fully compatible with all CLIP mounting plates, Blum’s CLIP top sprung hinges provide simple side, height, and infinitely adjustable depth with a spiral screw mechanism. Several mounting plates also offer cam height adjustment. Plus, the tool-free system allows for easy attachment and removal of door fronts.
Blum’s proven CLIP mechanism makes assembly fast and effortless, ensuring doors open and close smoothly and reliably every time.
Key Features:
Tested to withstand over 200,000 opening and closing cycles
Suitable for a wide range of applications
3-dimensional adjustment for perfect alignment
Easy and quick assembly without tools
Specifications:

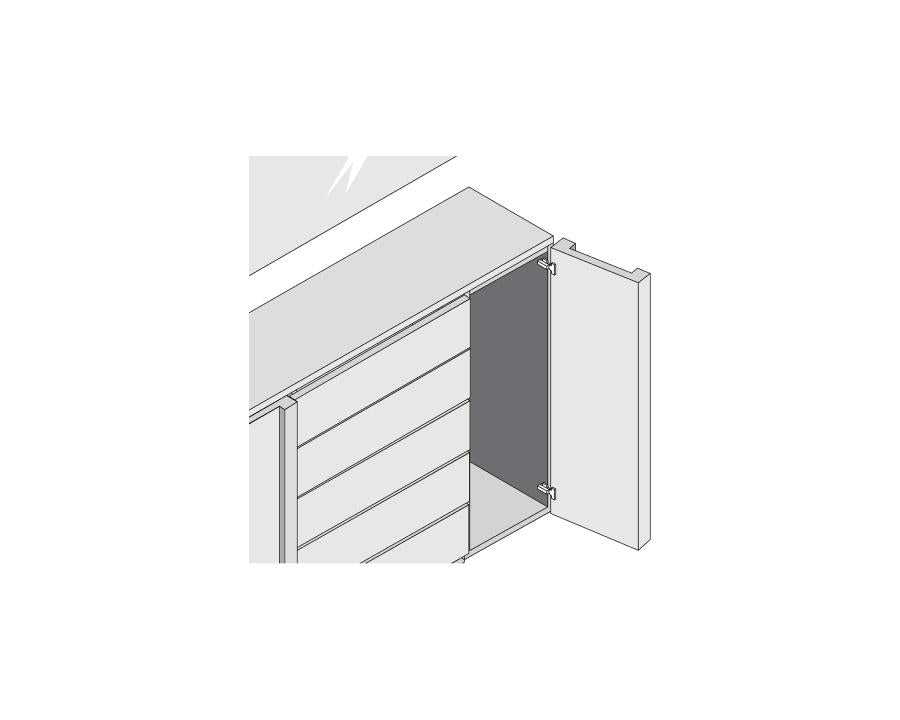

Application: Profile door hinge
Cranking: Overlay application
Opening angle: 95°
Closing mechanism: Spring-assisted
Cover cap types: 90M2503, 70.1553
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 30.5mm (length) x 3.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Boss drilling depth: 12.3mm
Arm material: Steel, nickel-plated
Collision measurement (arm height): 22mm
Factory setting (fixed dimension): 11mm
Side adjustment: +/-2mm (with screw)
Depth adjustment: +3/-2mm (via spiral screw)
Gap: 1.5mm
Packaging: Industrial packing (1 piece per package)
