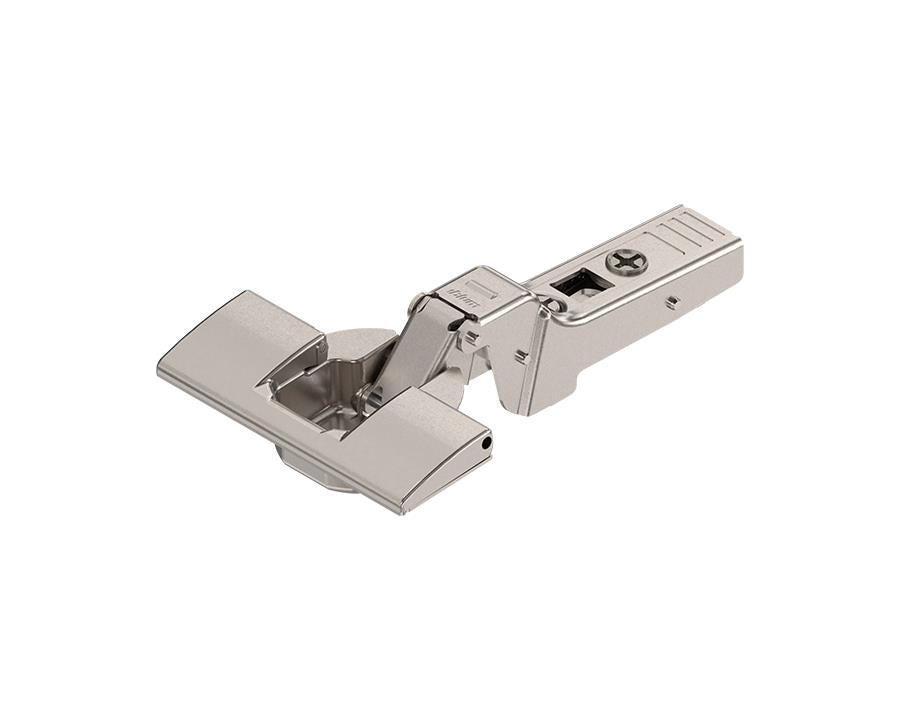

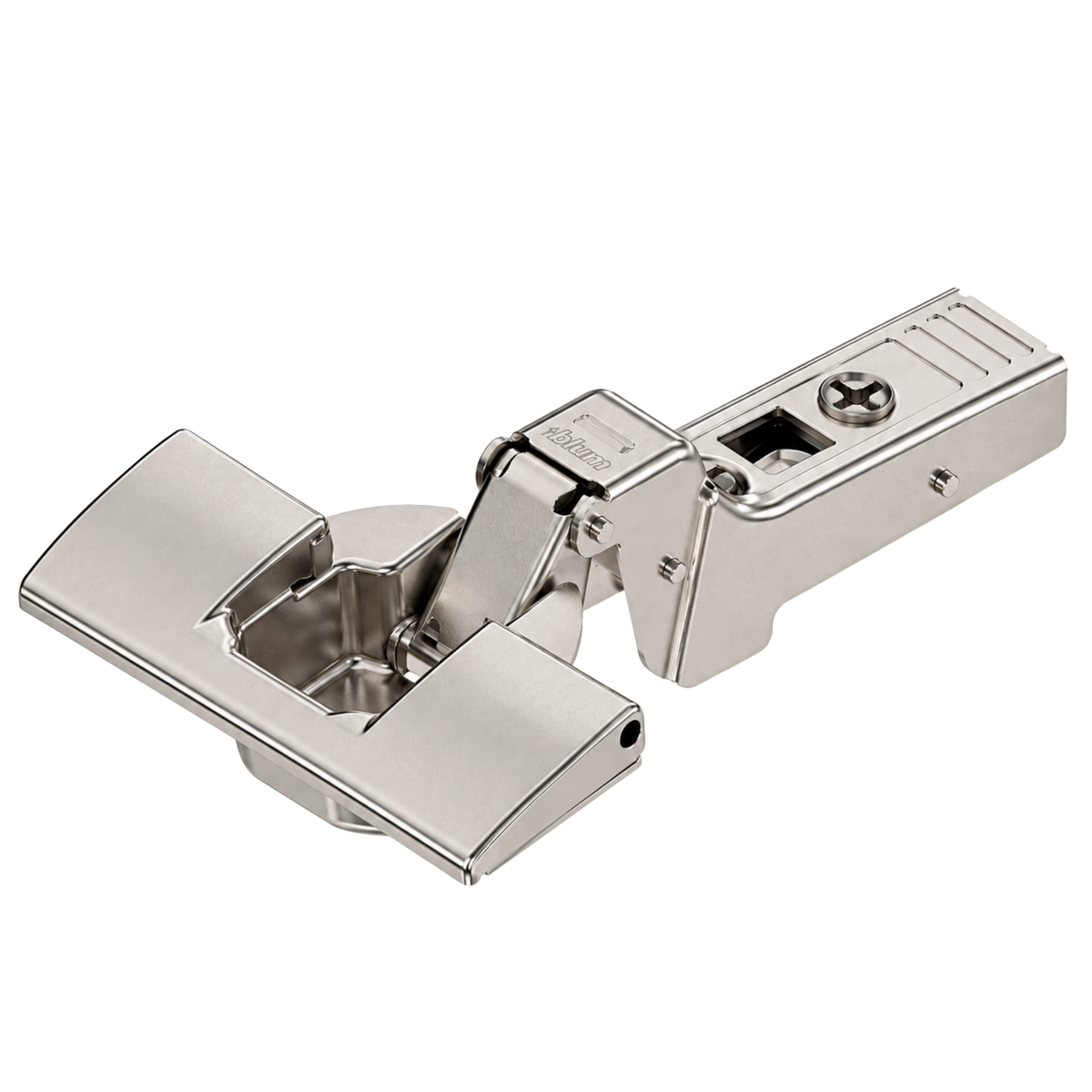

Blum CLIP top Profile Door Hinge 95 Degree Half Overlay Boss INSERTA by W&B

Blum CLIP top Profile Door Hinge 95 Degree Half Overlay Boss INSERTA by W&B

Regular price $11.19 AUD
Regular price Sale price $11.19 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley

Blum's hinges embody a combination of creative engineering and functional design. Our systems are built to provide reliable performance, ease of adjustment, and a sleek, attractive look. Featuring 3-dimensional adjustability, these hinges allow precise alignment for perfect door positioning.

Engineered to endure 200,000 opening and closing cycles, Blum hinges are versatile enough to suit various materials, including wood, glass, and aluminum-framed doors, as well as both thin and thick door designs. We also offer customized solutions for specialized applications like blind corners or angled door configurations.

Blum’s INSERTA and CLIP attachment systems make assembly quick and easy. The hinges snap into place with minimal effort, and Blum’s full range of boring and insertion tools, as well as assembly aids and templates, ensure a fast and accurate installation process.

With Blum’s proven CLIP mechanism, the door-to-cabinet assembly becomes tool-free, reducing the time and effort required. Each Blum-equipped door opens and closes smoothly and consistently.

Key Features:

  • Tested for over 200,000 cycles for enduring reliability
  • Adaptable for a variety of applications
  • 3-dimensional adjustability for easy alignment
  • Fast and tool-free assembly

Specifications:

  • Application: Profile door hinge
  • Cranking: Dual application
  • Opening Angle: 95°
  • Closing Mechanism: Spring-based
  • Hinge Variant: Compatible with BLUMOTION 973A
  • Cover Cap Types: 94M3603, 70.1663
  • Boss Material: Steel (Nickel-plated)
  • Boss Assembly: INSERTA
  • Flange Dimensions: Width: 65mm, Length: 23mm, Height: 7mm
  • Hinge Boss Drilling Diameter: 35mm
  • Fixing Hole Diameter: 8mm
  • Distance Between Drillings: 45mm
  • Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
  • Boss Drilling Depth: 12.6mm
  • Side Adjustment: +/- 2mm (screw-based)
  • Depth Adjustment: +3/-2mm (spiral screw)
  • Gap: 1.5mm
  • Arm Material: Steel (Nickel-plated)
  • Arm Height (Collision Measurement): 31mm
  • Fixed Dimension/Factory Setting: 1.5mm
  • Packaging: Commercial packing (1 piece)

Note: All plates are sold separately.
