Blum’s hinge systems combine innovative design with unmatched functionality. With a focus on reliability, easy adjustability, and appealing aesthetics, these hinges offer precise 3-dimensional adjustment to ensure the perfect fit for every door.
Engineered to withstand 200,000 opening and closing cycles, Blum hinges are designed for a wide variety of applications, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Specialized solutions are also available for unique configurations, such as blind corners and angled door installations.

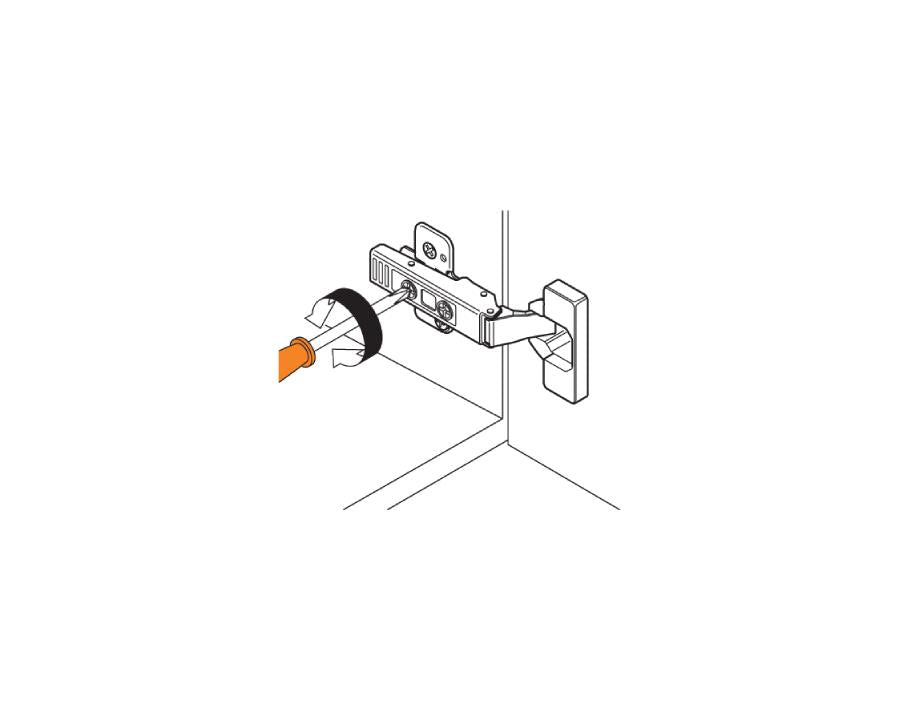

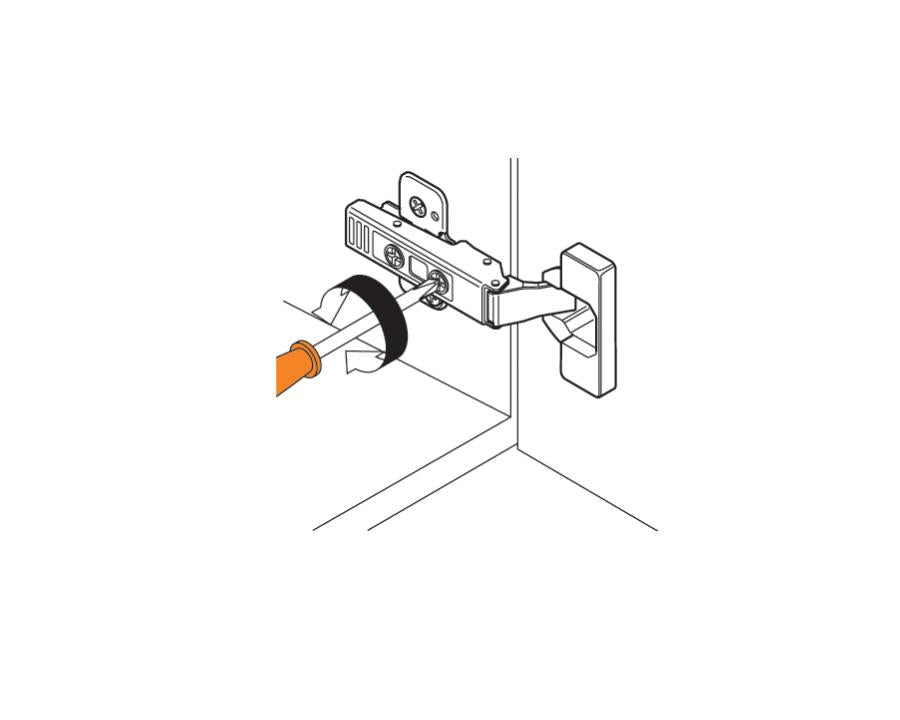

TheCLIP top sprung hinge is fully compatible with all CLIP mounting plates, allowing easy side, height, and infinitely variable depth adjustments using a spiral screw. Several mounting plates also feature cam height adjustments, making it simple to attach and remove doors without the need for tools.

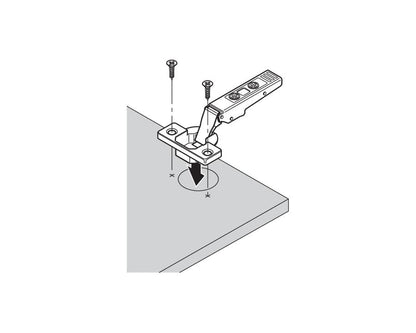

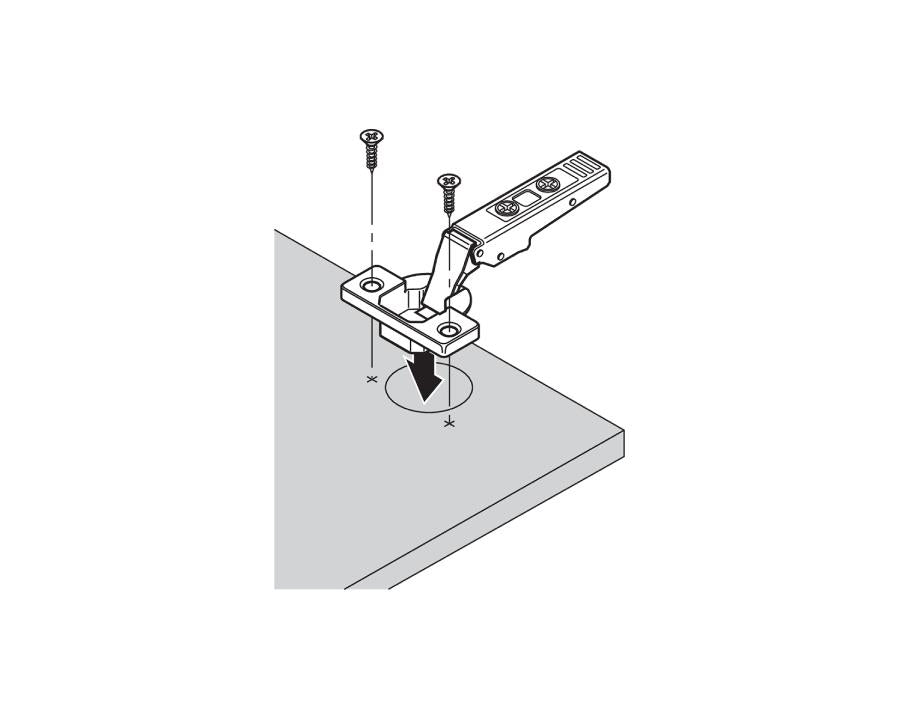

Blum’s tested CLIP mechanism streamlines the door-to-cabinet assembly process, ensuring a quick and tool-free installation. Every door equipped with Blum hinges opens and closes with smooth, reliable action.
Key Features:
Proven durability: Tested to withstand over 200,000 opening and closing cycles
Versatile: Suitable for various applications and door types
Precision 3-dimensional adjustment for a perfect fit
Tool-free assembly and simple adjustments with Blum’s CLIP system
Specifications:
Application: Profile door hinge for dual applications
Opening Angle: 95°
Closing Mechanism: Spring-assisted
Cover Cap Types: 94M3603, 70.1553
Boss Material: Steel, nickel plated
Boss Assembly: Screw-on
Flange: Width 57mm, Length 30.5mm, Height 3.2mm
Hinge Boss Drilling: Diameter 35mm, Drilling Depth 12.3mm
