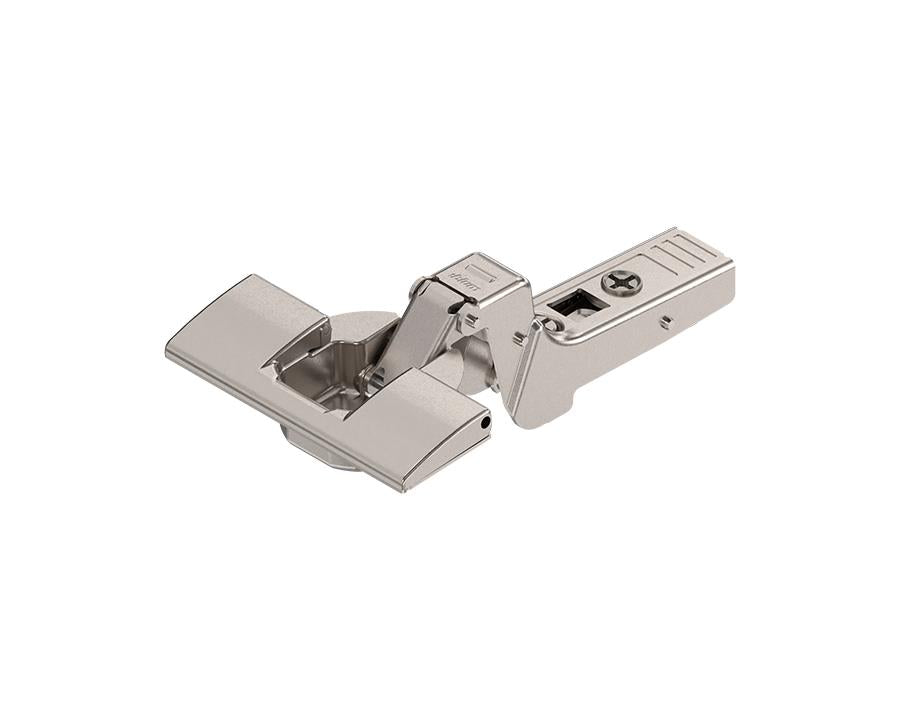

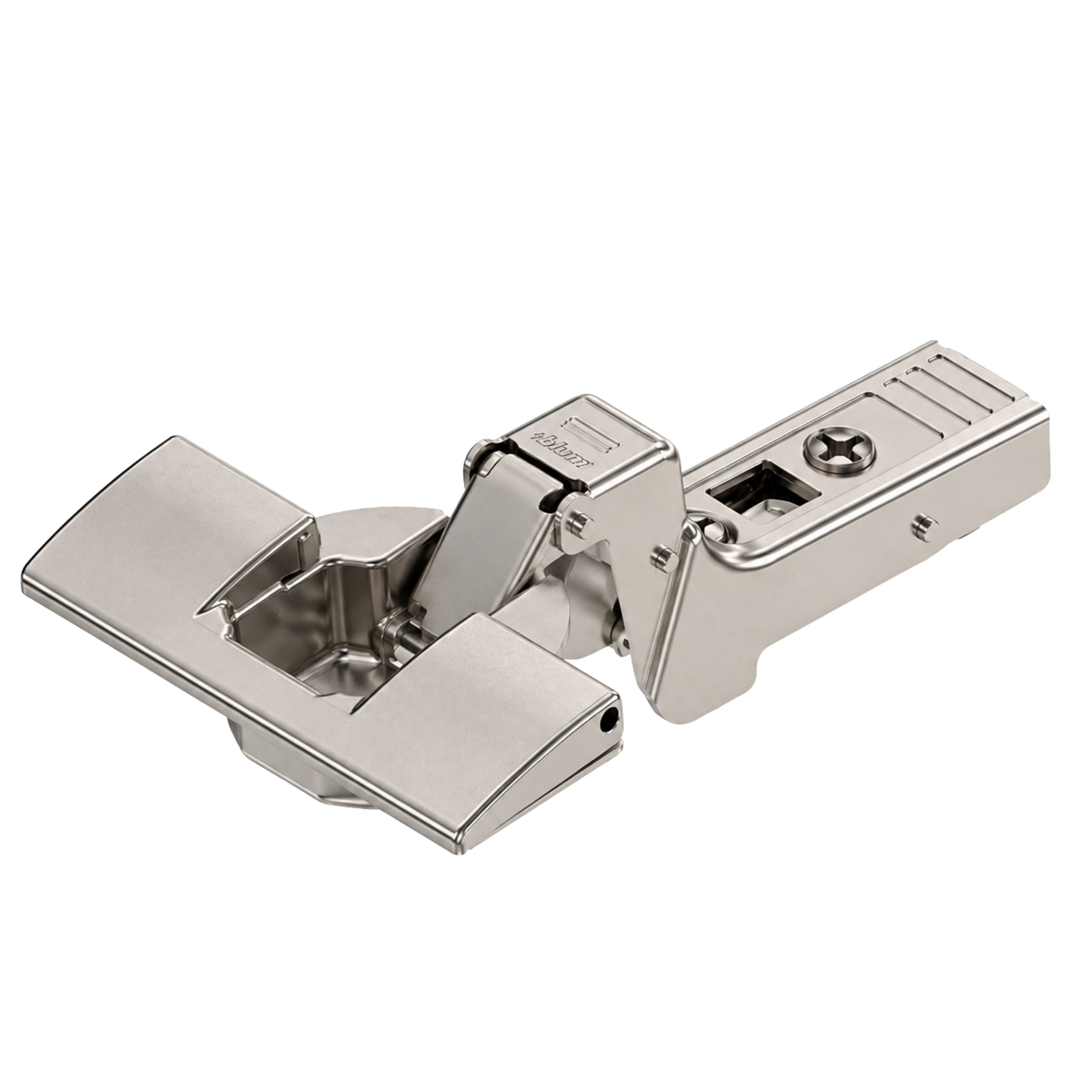

Blum CLIP top Profile Door Hinge 95 Degree Inset Application Boss INSERTA BM71979B by W&B

SKU: IWBCTPDH95DIABI

Price

$11.97

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley

Blum hinges are crafted with a perfect blend of ingenuity and precision, offering outstanding functionality. These systems provide reliable performance, easy adjustability, and a sleek, modern design. Featuring 3-dimensional adjustment, Blum hinges make alignment effortless and installation more flexible.

Designed to withstand 200,000 cycles of opening and closing, Blum hinges are versatile and cater to a wide range of materials, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Specialized options are also available for challenging applications, such as blind corners or angled door installations.

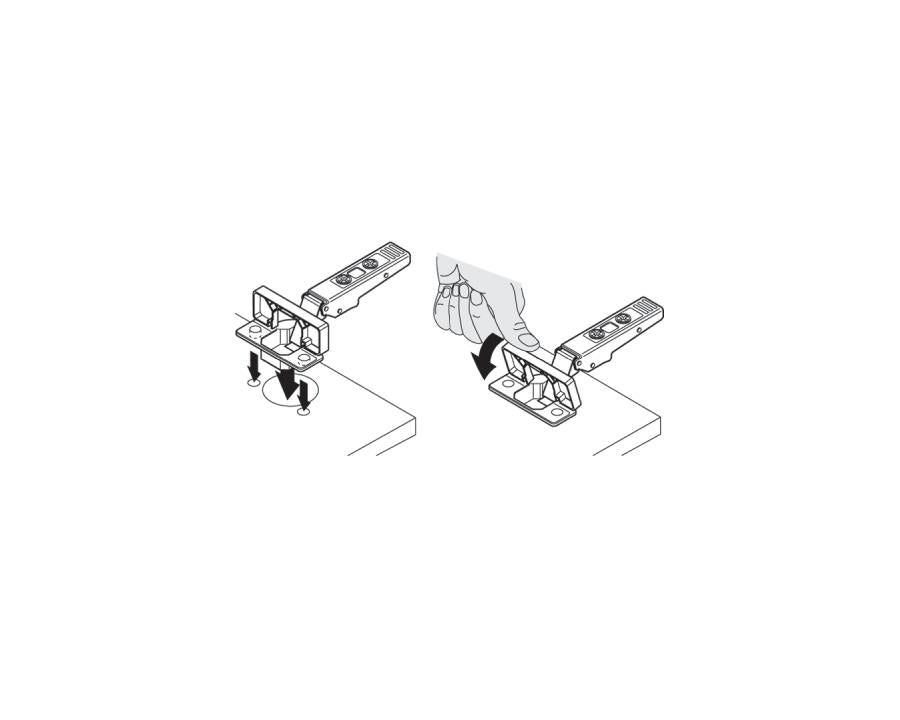

Thanks to features like INSERTA and the CLIP attachment mechanism, attaching the hinge to both door and mounting plate is incredibly simple. Blum also offers a variety of precision boring machines, assembly aids, and templates to ensure a swift and accurate installation.

Blum’s CLIP system allows for a tool-free, quick, and efficient door-to-cabinet assembly. Once installed, each Blum-equipped door opens and closes smoothly and reliably, offering long-lasting ease of use.

Key Features:

Tested over 200,000 cycles for maximum durability
Adaptable to all types of applications
3-dimensional adjustment for optimal alignment
Quick, tool-free assembly

Specifications:

Application: Profile door hinge
Cranking: Inset application
Opening Angle: 95°
Closing Mechanism: Spring-based
Hinge Variant: Compatible with BLUMOTION 973A
Cover Cap Types: 94M3603, 70.1663
Boss Material: Steel (Nickel-plated)
Boss Assembly: INSERTA
Flange Dimensions: Width: 65mm, Length: 23mm, Height: 7mm
Hinge Boss Drilling Diameter: 35mm
Fixing Hole Diameter: 8mm
Distance Between Drillings: 45mm
Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
Boss Drilling Depth: 12.6mm

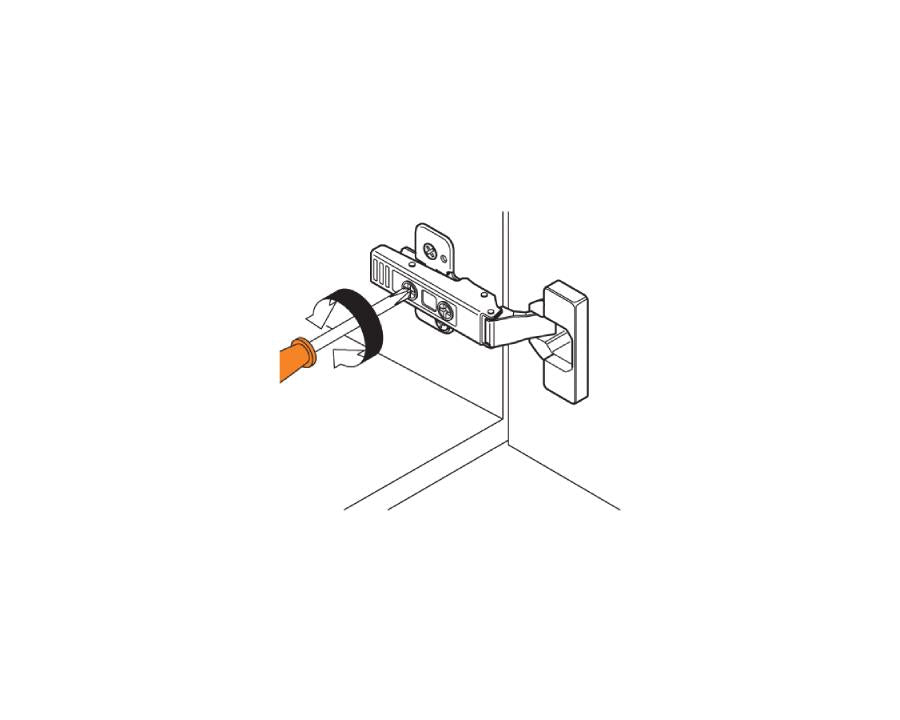

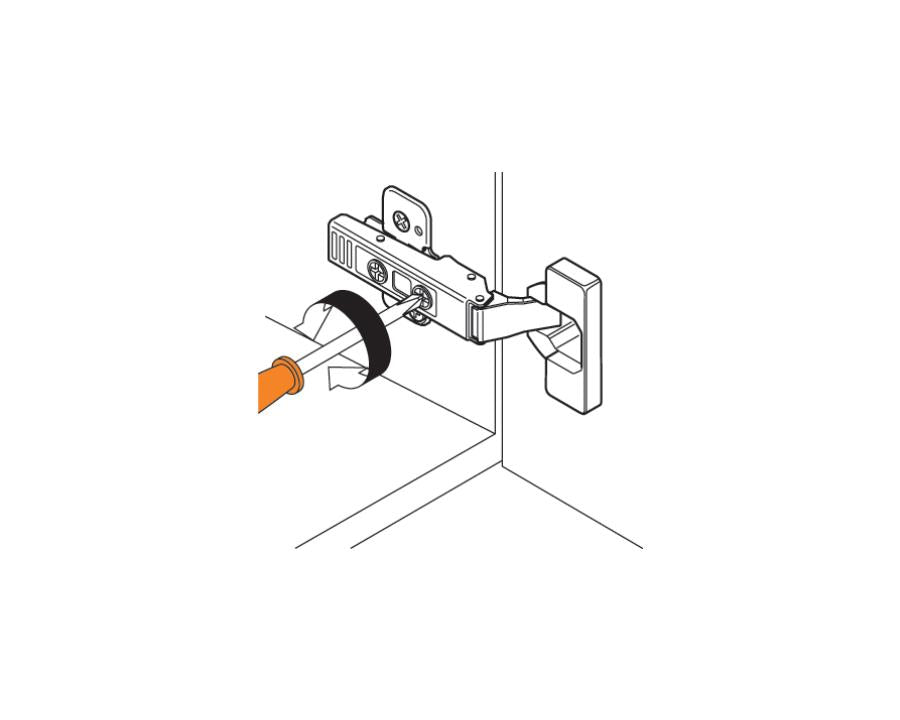

Side Adjustment: +/-2mm (screw-based)

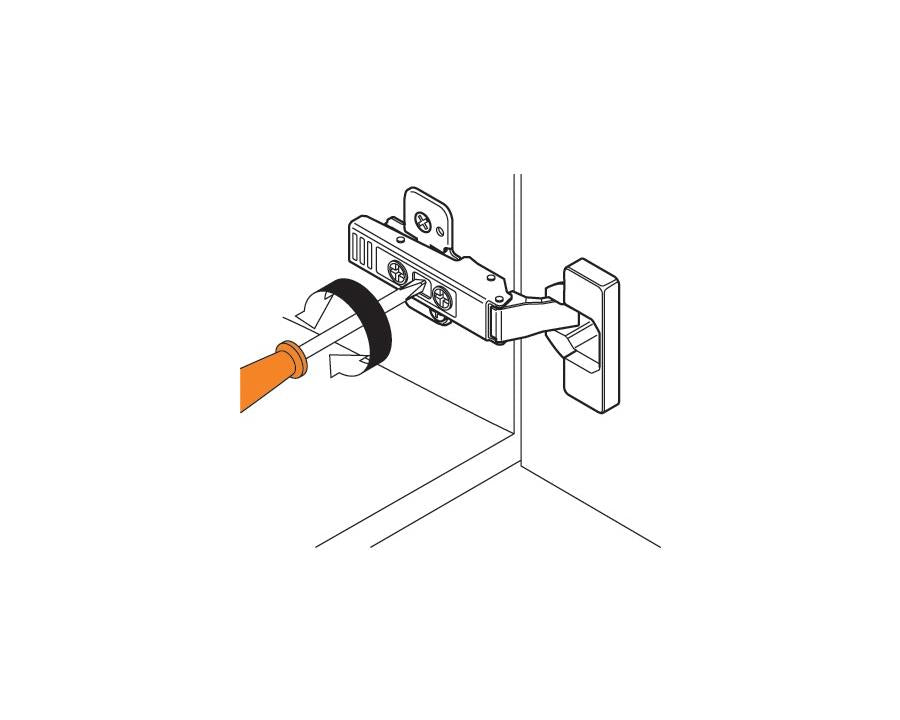

Depth Adjustment: +3/-2mm (spiral screw)
Gap: 1.5mm
Collision Measurement (Hinge Arm Height): 40mm
Fixed Dimension/Factory Setting: -7mm
Packaging: Commercial packing (1 piece)

Note: All plates are sold separately.
