SKU:IWBCTSH107DFOBI

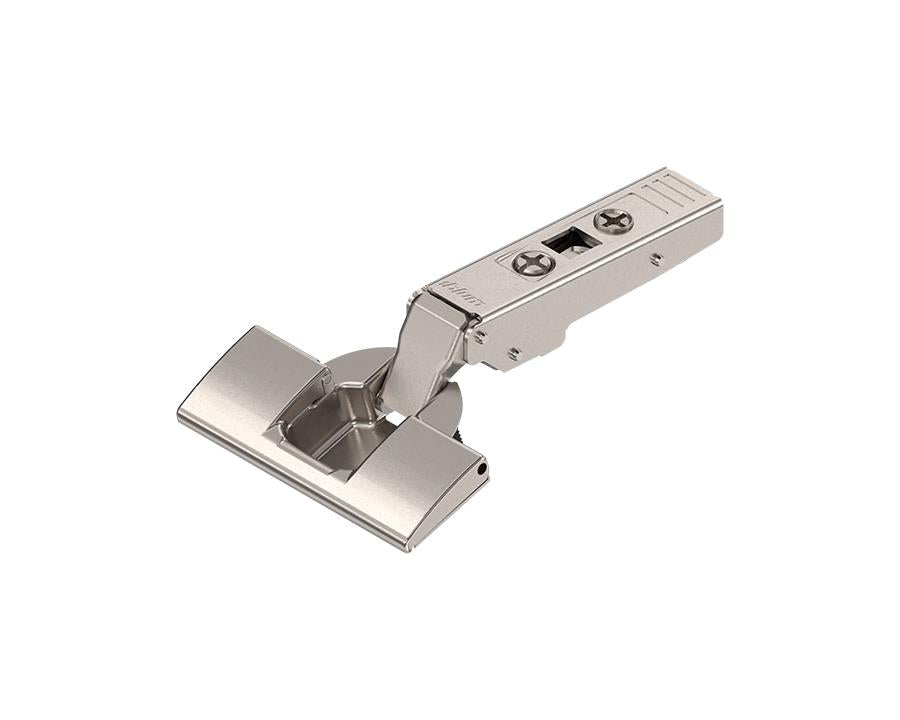

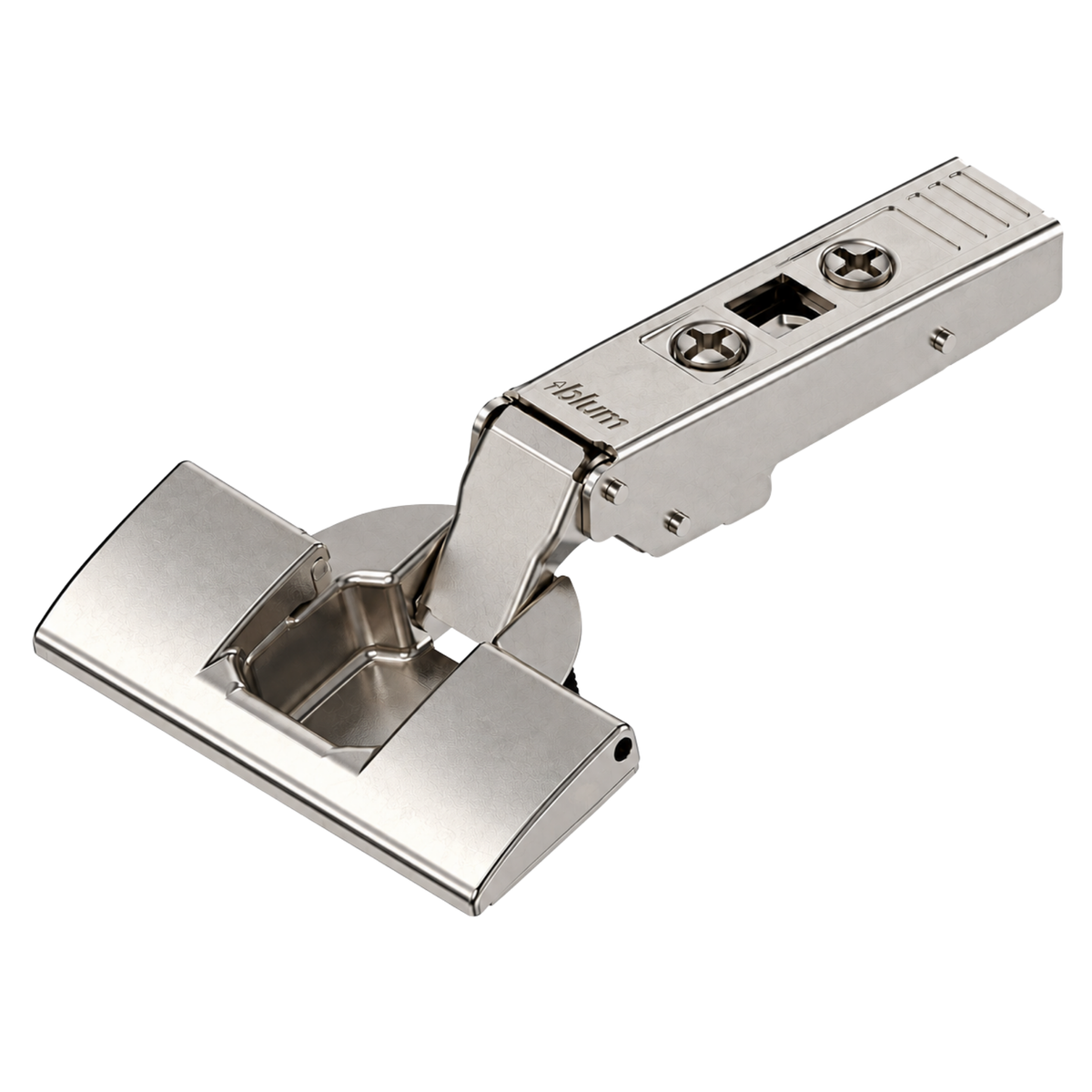

Blum CLIP top Standard Hinge 107 Degree Full Overlay Boss INSERTA by W&B

Blum CLIP top Standard Hinge 107 Degree Full Overlay Boss INSERTA by W&B

Regular price $8.38 AUD
Regular price Sale price $8.38 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley

Blum hinges combine cutting-edge design with robust functionality, ensuring dependable performance and smooth operation. Offering 3-dimensional adjustability, these hinges provide easy installation, perfect alignment, and flexibility. Their modern design is ideal for any contemporary space.

Designed to endure over 200,000 cycles of opening and closing, Blum hinges are suitable for a variety of door types, including wood, glass, and aluminum-frame doors. They accommodate both thin and thick doors, and also feature specialized solutions for challenging setups, such as blind corners or angled doors.

Thanks to the innovative IN INSERTA and CLIP attachment mechanisms, Blum hinges make installation fast, simple, and tool-free. Blum also provides a range of precision machines, assembly aids, and templates to ensure quick and accurate fitting.

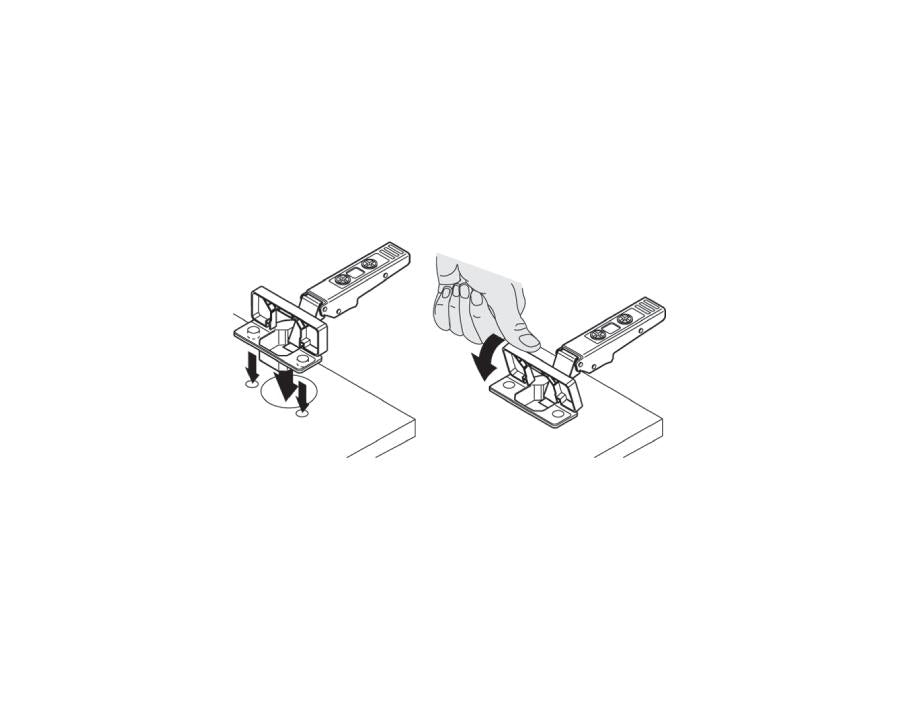

The CLIP system allows for effortless, tool-free assembly, ensuring that once installed, your Blum-equipped doors will operate smoothly for years to come.

Key Features:

  • Tested for over 200,000 cycles to guarantee long-lasting durability
  • Compatible with all types of door materials and configurations
  • 3-dimensional adjustment for easy, precise alignment
  • Fast, tool-free assembly with Blum’s CLIP system

Specifications:

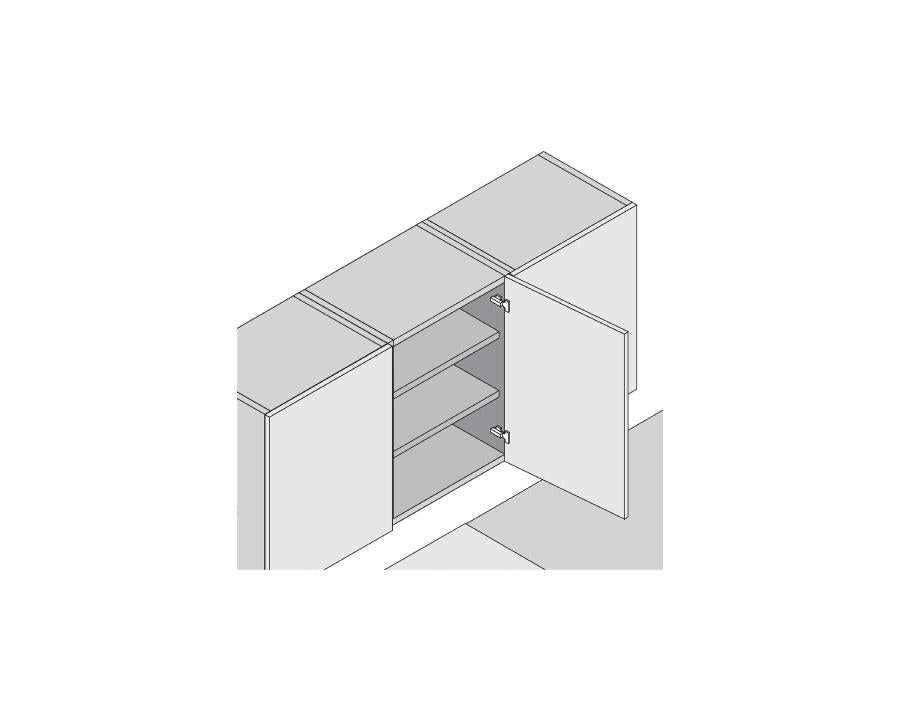

  • Application: Standard hinge for overlay doors
  • Cranking: Overlay application
  • Opening Angle: 107°
  • Closing Mechanism: Spring-loaded
  • Boss Material: Steel, Nickel-plated
  • Boss Assembly: INSERTA
  • Flange Dimensions: 65mm (Width), 23mm (Length), 7mm (Height)
  • Hinge Boss Drilling Diameter: 35mm
  • Fixing Hole Diameter: 8mm
  • Distance Between Drillings: 45mm
  • Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
  • Boss Drilling Depth: 12mm

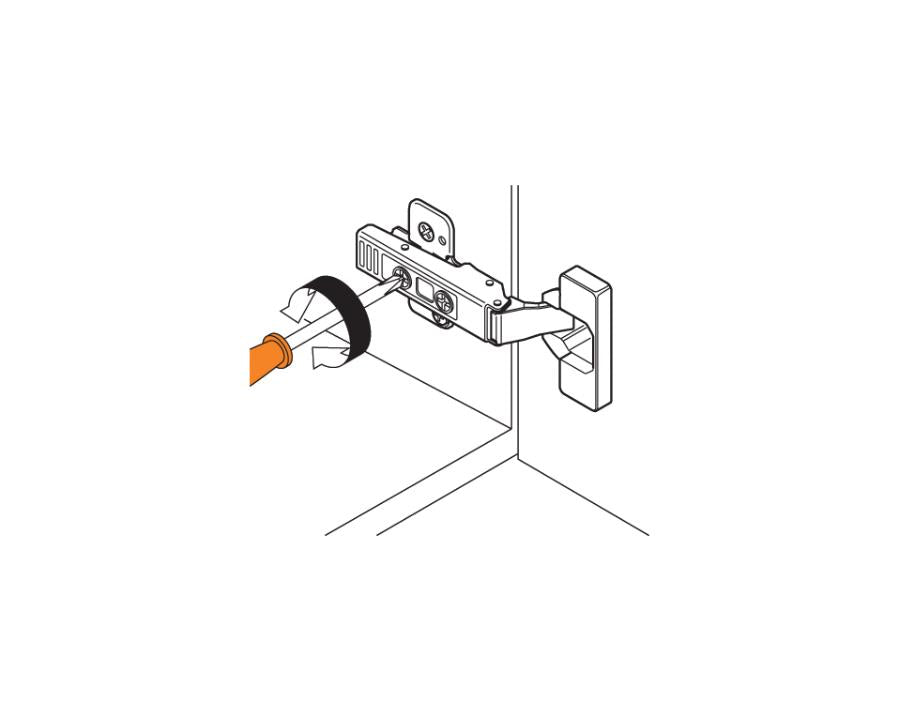

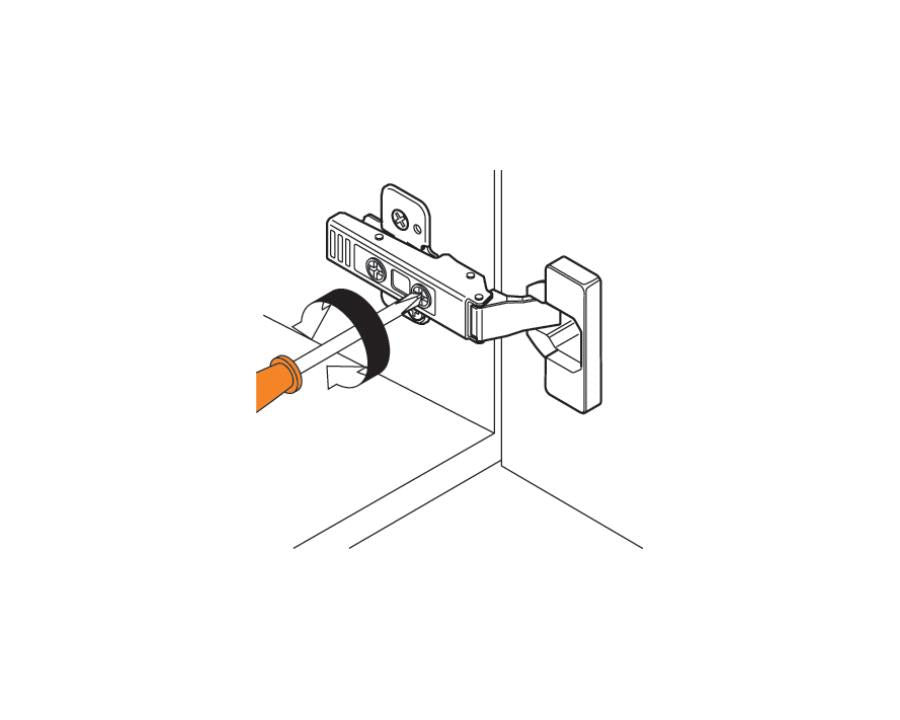

  • Side Adjustment: +/- 2mm (screw-based)

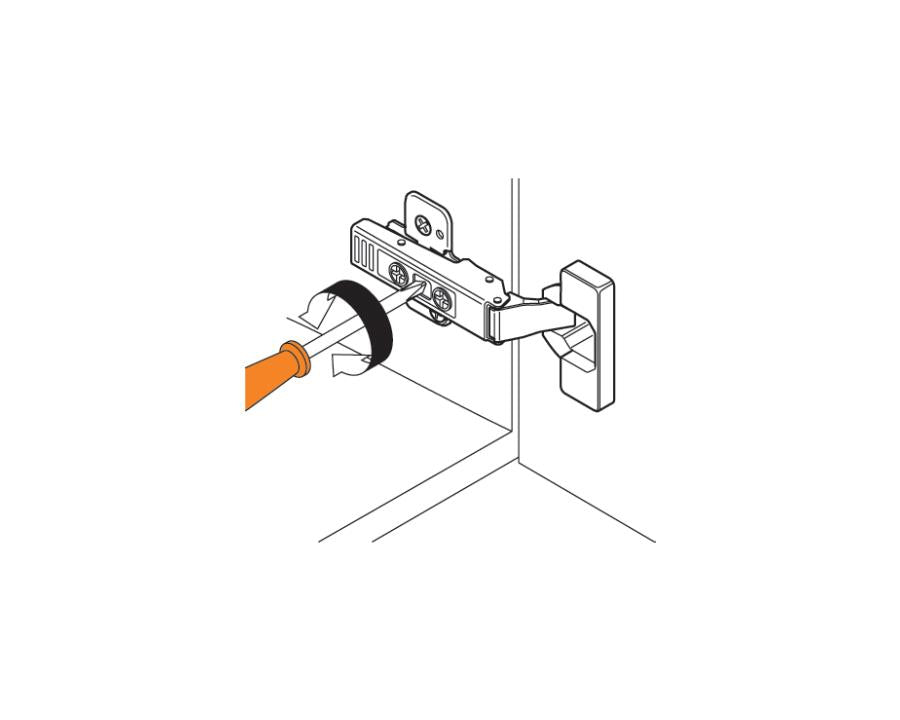

  • Depth Adjustment: +3/-2mm (spiral screw)
  • Gap: 1.5mm
  • Collision Measurement (Hinge Arm Height): 21mm
  • Fixed Dimension/Factory Setting: 11mm
  • Packaging: Industrial packing (1 piece per pack)

Note: All plates are sold separately
