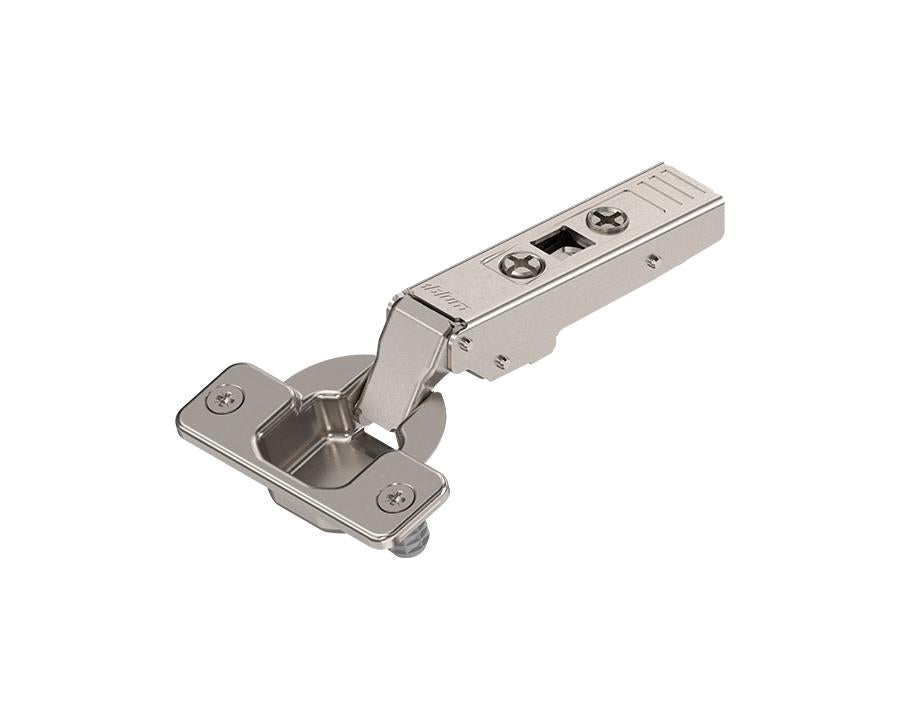

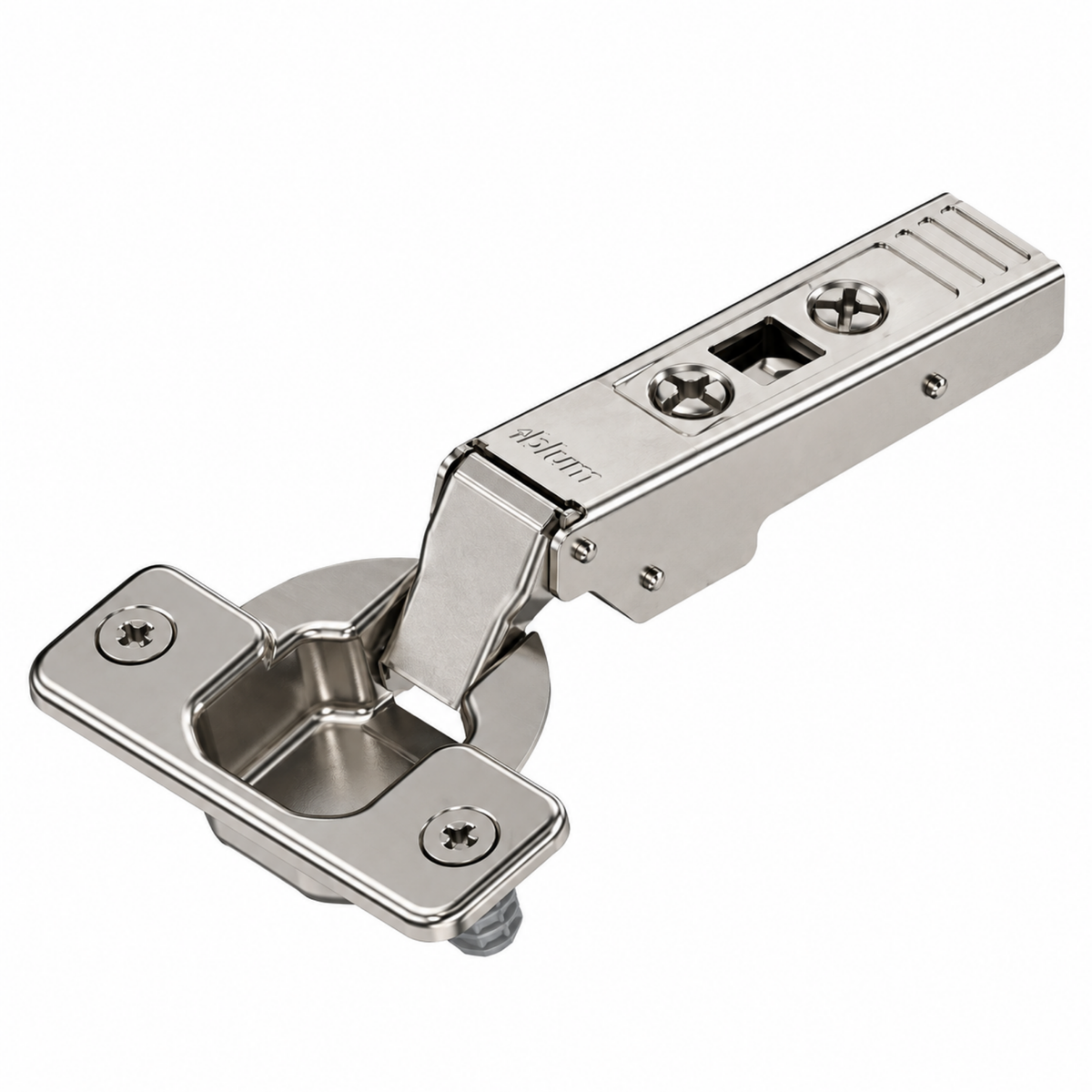

Blum Hinge Systems – Advanced Functionality by Wilson and Bradley
Blum’s innovative design and engineering deliver hinge systems that combine reliable function, enhanced adjustability, and a sleek, attractive design. Our hinges offer 3-dimensional adjustment, ensuring precise alignment and ease of use for any application.
Tested to endure 200,000 opening and closing cycles, our range of hinges caters to a wide array of door types, from wood to glass and aluminum frame doors, with solutions for both thin and thick doors. Specialized options are also available for corner and angled door configurations.
Blum’s CLIP top sprung hinges are fully compatible with all CLIP mounting plates, providing effortless side, height, and depth adjustment through a spiral screw mechanism. Several mounting plates also feature cam height adjustment for added flexibility. The tool-free system ensures quick and easy attachment and removal of door fronts.
The time-tested CLIP mechanism simplifies the door-to-cabinet assembly, making it fast, easy, and reliable—no tools required. Doors equipped with Blum hinges operate with consistent ease and durability.
Key Features:
Rigorously tested to withstand 200,000+ opening and closing cycles
Versatile for wood, glass, and aluminum frame doors
3-dimensional adjustment for perfect door alignment
Quick and easy, tool-free assembly
Specifications:
Application: Standard hinge
Cranking: Overlay application
Opening angle: 107°
Closing mechanism: Spring-assisted
Cover cap types: 90M2503, 70.1503 (BPC10021)
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Boss drilling depth: 11.5mm
Arm material: Steel, nickel-plated
Collision measurement (arm height): 21mm
Factory setting (fixed dimension): 11mm
Side adjustment: +/-2mm (via screw)
Depth adjustment: +3/-2mm (via spiral screw)
Gap: 1.5mm
Packaging: Industrial packing (1 piece per package)
