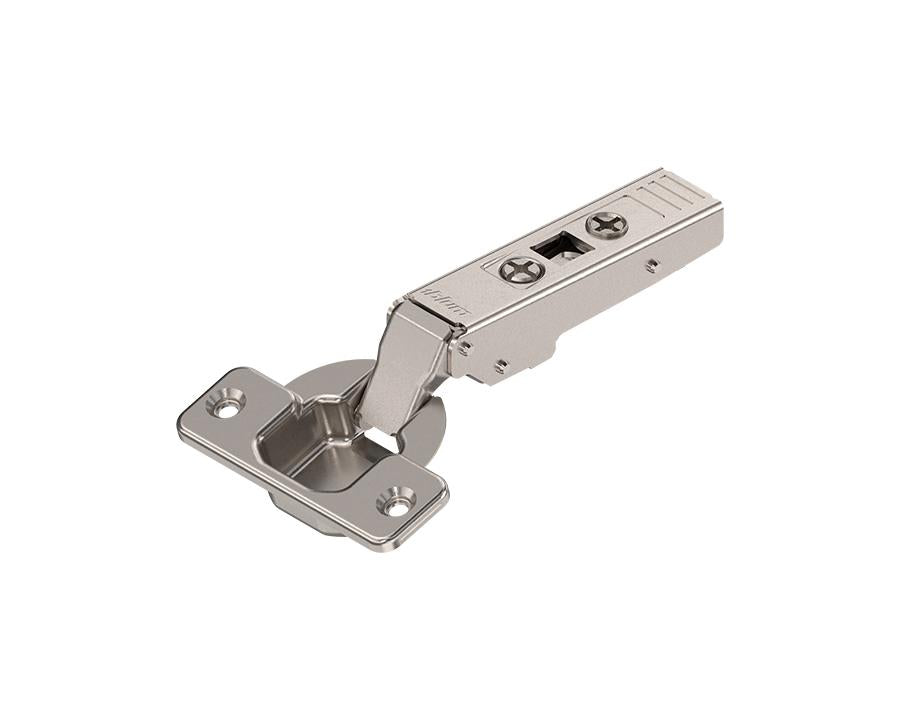

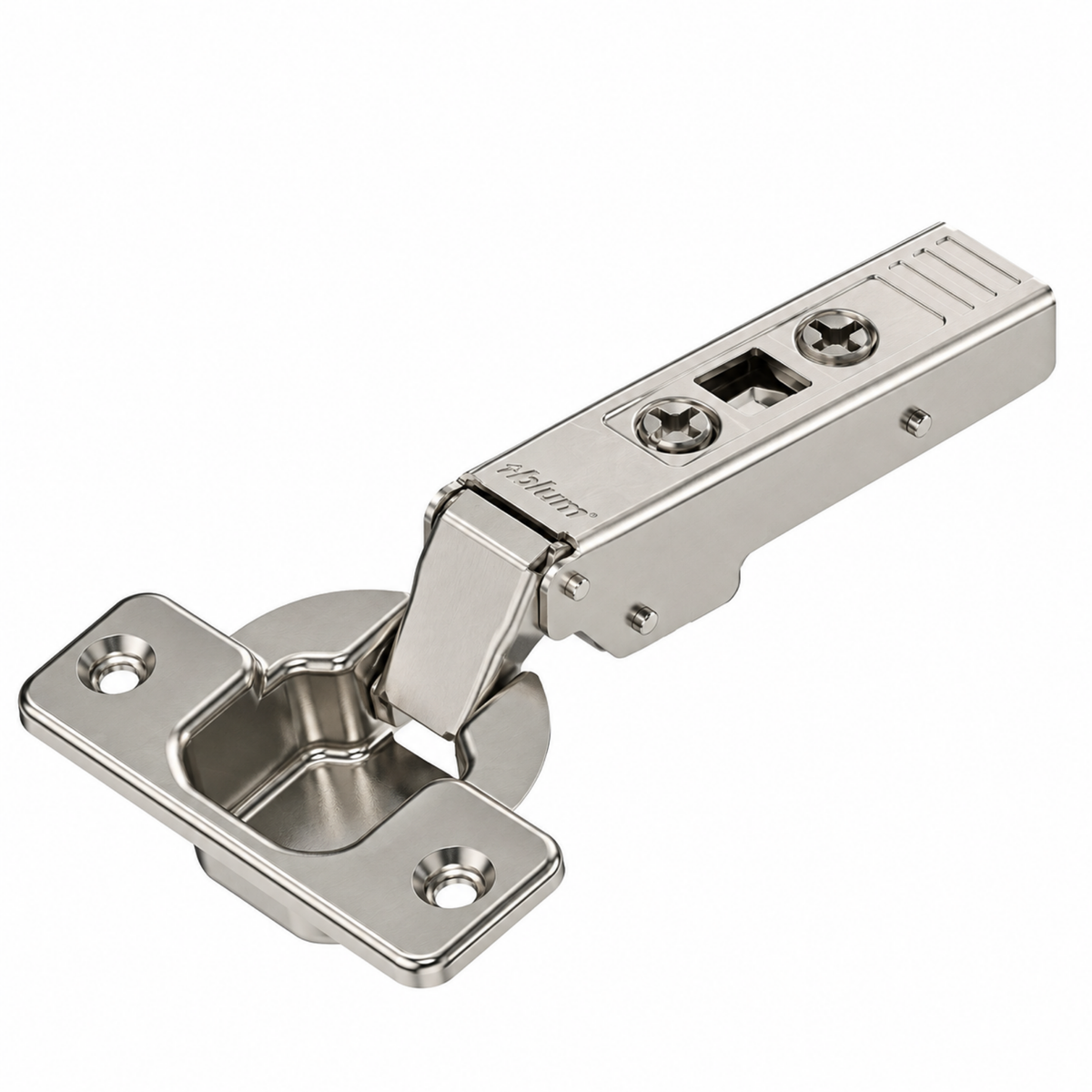

Blum CLIP top Standard Hinge 107 Degree. Full Overlay. Boss: Screw-On by W&B

Blum Hinge Systems by Wilson and Bradley

Blum’s hinge systems combine creativity and functionality to deliver exceptional performance. Engineered for reliability and ease of use, our hinges provide precise 3-dimensional adjustment, making them ideal for a wide range of door types and applications.

Built to endure over 200,000 opening and closing cycles, Blum hinges are versatile enough to accommodate wood, glass, aluminum-framed doors, and both thin and thick doors. Special configurations, such as those for blind corners and angled applications, are also available.

The CLIP top sprung hinge is fully compatible with all CLIP mounting plates, offering effortless side, height, and infinitely adjustable depth via a spiral screw. In addition, many mounting plates feature cam height adjustments. Doors can be attached and removed quickly and easily, without the need for tools.

Thanks to Blum’s reliable CLIP mechanism, assembling doors to cabinets is a quick and tool-free process, ensuring that every door opens and closes with smooth, consistent action.

Key Features:

• Tested to endure 200,000 opening/closing cycles for long-term reliability
• Suitable for a variety of door applications, from wood to glass to metal frames
• 3-dimensional adjustment for precise fit and alignment
• Tool-free assembly and easy adjustments with Blum’s CLIP system

Specifications:

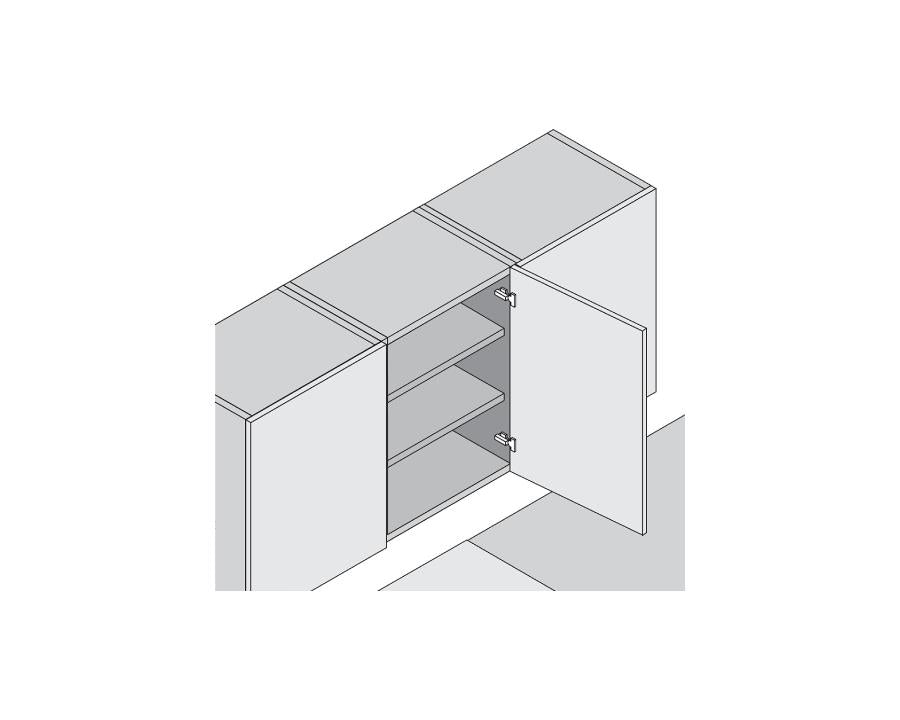

• Application: Standard hinge for overlay doors
• Opening Angle: 107°
• Closing Mechanism: Spring-assisted
• Cover Cap Types: 90M2503, 70.1503 (BPC10021)
• Boss Material: Steel, nickel-plated
• Boss Assembly: Screw-on
• Flange: Width 57mm, Length 30.5mm, Height 3.2mm
• Hinge Boss Drilling: Diameter 35mm, Drilling Depth 11.5mm
• Drilling Spacing: 45mm, eccentric position (9.5mm)
• Side Adjustment: +/- 2mm with screw
• Depth Adjustment: +3/-2mm via spiral screw
• Gap: 1.5mm
• Item Package: 1 piece (industrial packaging)

Note: Plates sold separately.
