Blum Hinge Systems – A Blend of Innovation and Precision by Wilson and Bradley
Blum hinges are crafted to offer superior functionality through a combination of innovative design and engineering. These hinges provide reliable performance, enhanced adjustability, and ease of assembly, all while maintaining a sleek, modern look. With 3-dimensional adjustability, they ensure precise alignment, making them ideal for various applications.
Built to last through 200,000 opening and closing cycles, Blum hinges are versatile and fit a wide range of door materials, including wood, glass, and aluminum frames. They can be used on both thin and thick doors, and come with specialized solutions for blind corners or angled doors.
Thanks to features like IN INSERTA and the CLIP attachment system, Blum hinges offer easy installation with quick, tool-free assembly. Additionally, Blum provides a full range of boring and insertion machines, assembly aids, and templates, ensuring fast and precise fitting.
The CLIP system ensures that doors equipped with Blum hinges open and close smoothly and reliably, year after year, with minimal effort required during assembly.
Key Features:
- Durability: Tested for over 200,000 opening and closing cycles
- Versatile Applications: Suitable for wood, glass, aluminum-framed, and both thin and thick doors
- Handle-less Fronts: TIP-ON motion technology for effortless, handle-less operation
- 3-dimensional Adjustment: For precise and easy alignment
- Tool-free Assembly: Quick, easy installation with the CLIP system
Specifications:

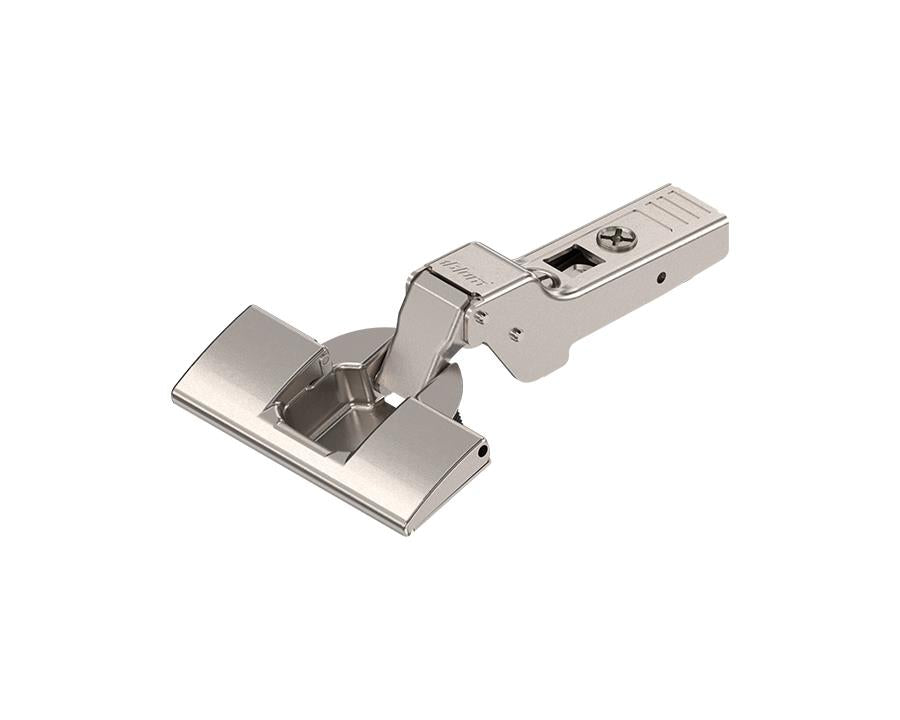

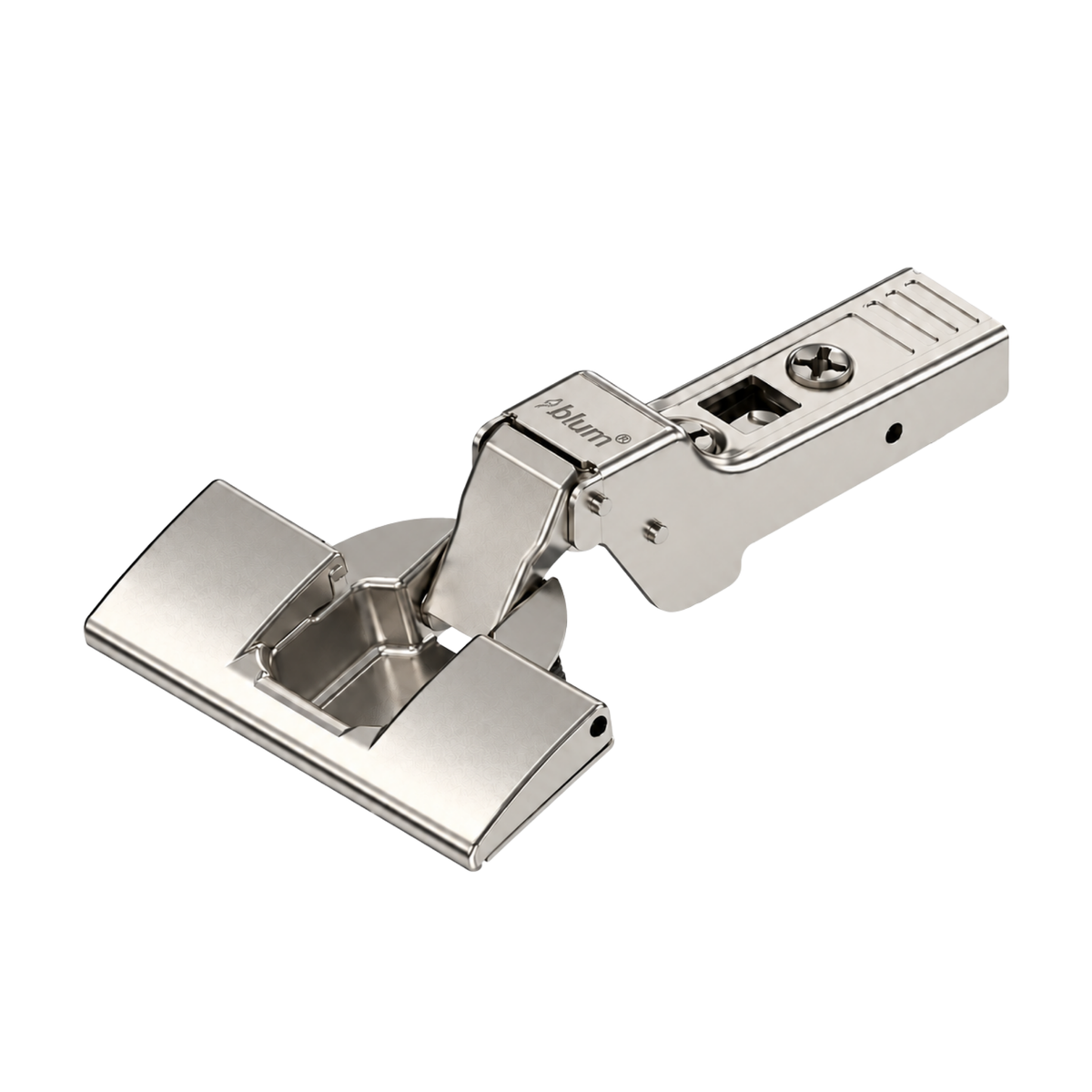

- Application: Standard hinge for overlay doors

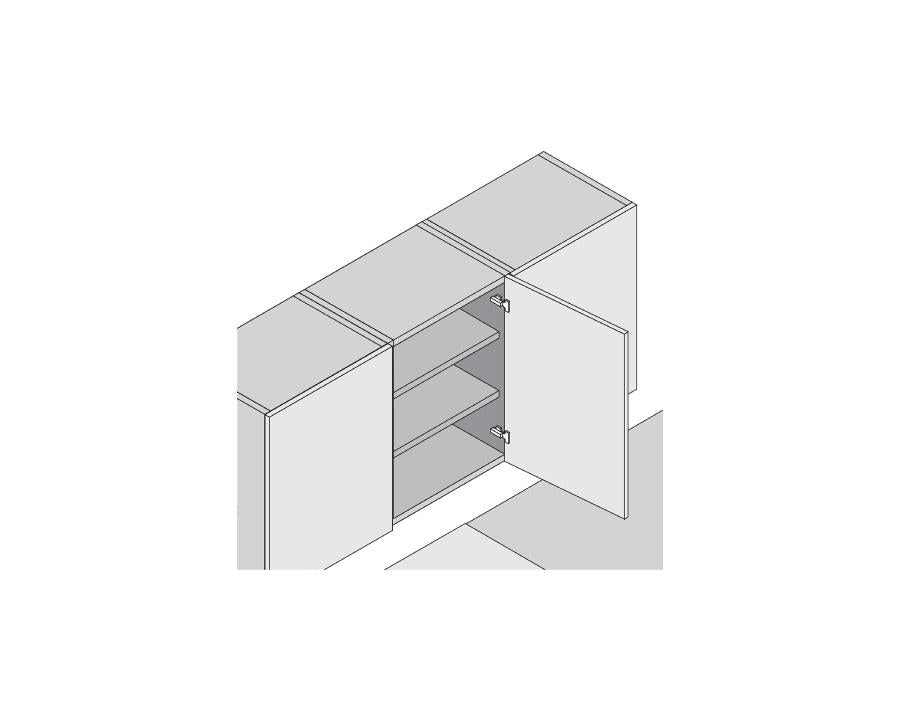

- Cranking: Dual application
- Opening Angle: 107°
- Closing Mechanism: Spring-loaded
- Boss Material: Steel, Nickel-plated
- Boss Assembly: INSERTA
- Flange Dimensions: 65mm (Width), 23mm (Length), 7mm (Height)
- Hinge Boss Drilling Diameter: 35mm
- Fixing Hole Diameter: 8mm
- Distance Between Drillings: 45mm
- Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
- Boss Drilling Depth: 12mm
- Side Adjustment: +/- 2mm (screw-based)
- Depth Adjustment: +3/-2mm (spiral screw)
- Gap: 1.5mm
- Collision Measurement (Hinge Arm Height): 31mm
- Fixed Dimension/Factory Setting: 1.5mm
- Packaging: Industrial packing (1 piece per pack)
Note: All plates are sold separately.
