SKU:IWBCTSH107DIABI

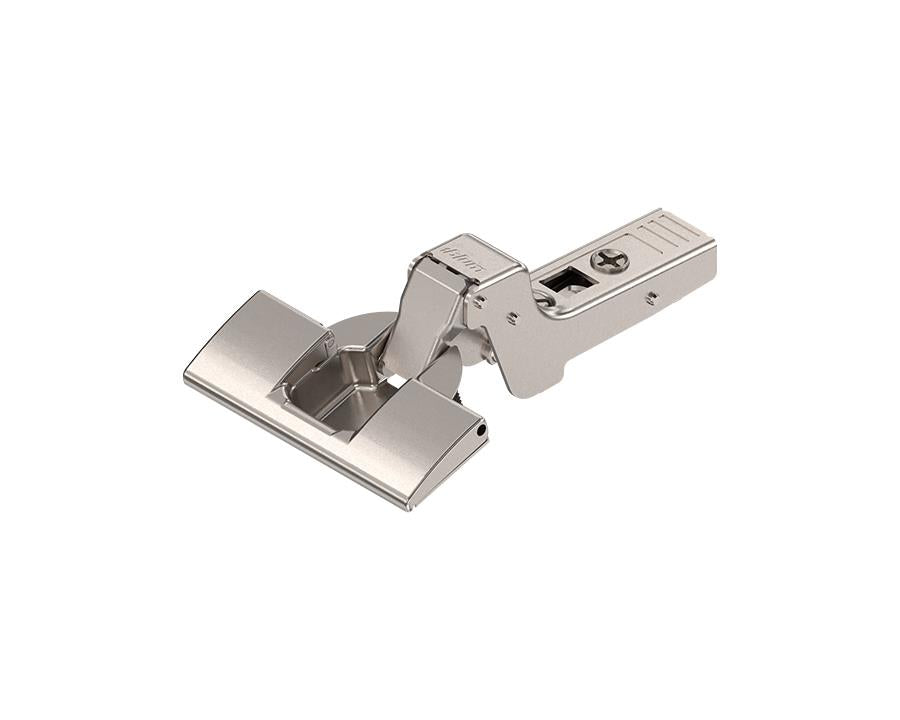

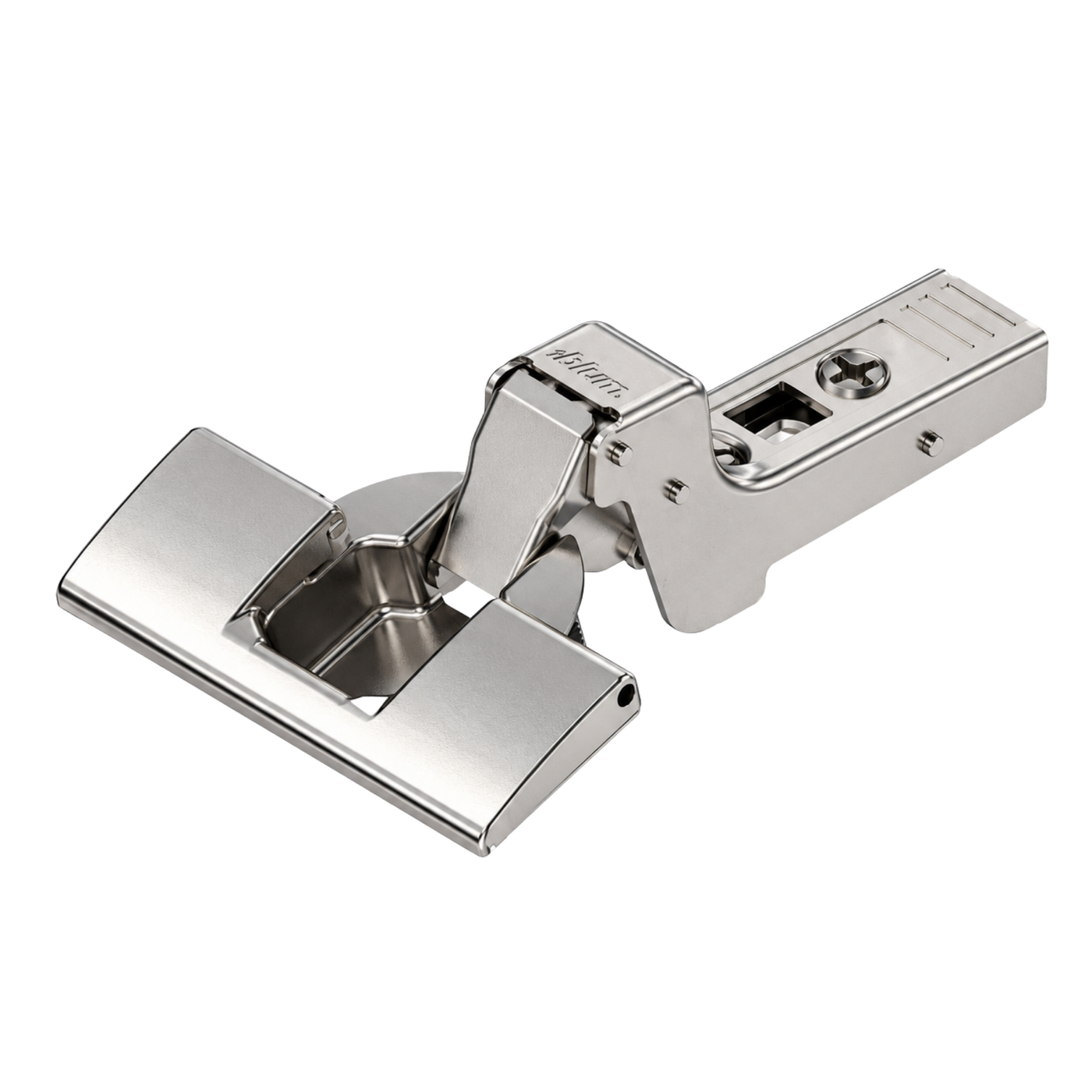

Blum CLIP top Standard Hinge 107 Degree Inset Application Boss INSERTA by W&B

Blum CLIP top Standard Hinge 107 Degree Inset Application Boss INSERTA by W&B

Regular price $9.38 AUD
Regular price Sale price $9.38 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Blum Hinge Systems – Precision and Performance by Wilson and Bradley

Blum hinge systems are designed with ingenuity and advanced engineering to offer unmatched reliability, effortless adjustments, and modern aesthetics. With 3-dimensional adjustability, these hinges allow for seamless door alignment and flexible installation.

Engineered to endure over 200,000 opening and closing cycles, Blum hinges cater to a variety of applications, from wood and glass to aluminum-framed doors. Whether for thin or thick doors, these hinges provide versatile solutions, including options for blind corner and angled door installations.

With innovative features such as IN INSERTA and the CLIP attachment mechanism, Blum makes attaching hinges to the door and mounting plate both quick and secure. Additionally, Blum provides a range of boring machines, assembly aids, and templates to facilitate accurate and efficient installations.

The CLIP system allows for tool-free assembly, simplifying the door-to-cabinet fitting process and ensuring smooth, reliable operation for every door.

Key Features:

  • Durability: Tested to withstand over 200,000 opening and closing cycles
  • Versatile: Suitable for a wide range of door types and applications
  • 3-dimensional adjustment: For precise, easy alignment
  • Quick assembly: Tool-free assembly with the CLIP system

Specifications:

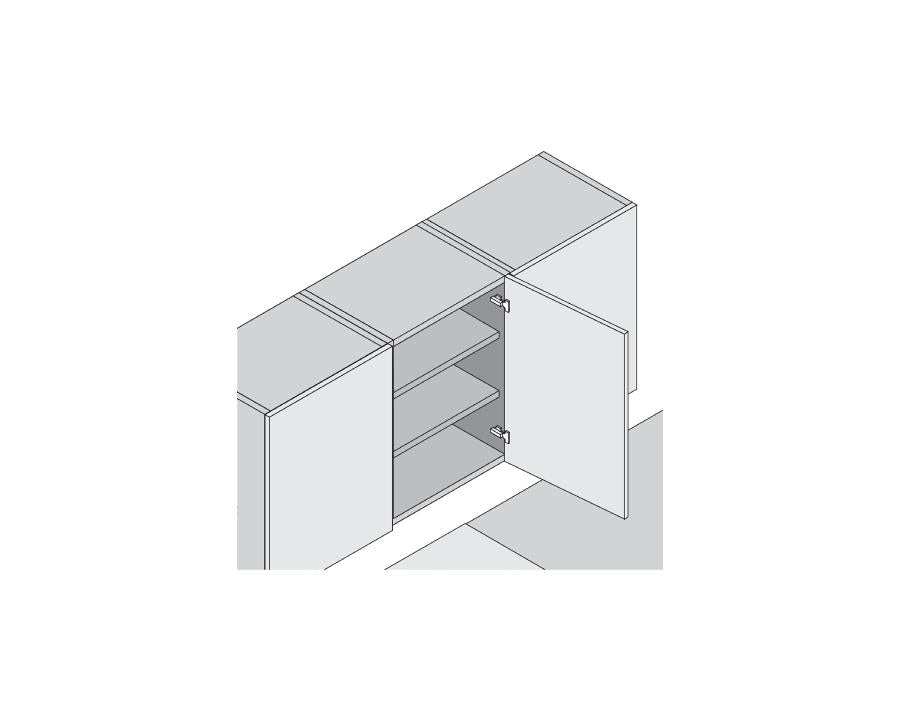

  • Application: Standard hinge for inset doors
  • Cranking: Inset application
  • Opening Angle: 107°
  • Closing Mechanism: Spring-loaded
  • Cover Cap: 94M3603, 70.1663
  • Boss Material: Steel, Nickel-plated
  • Boss Assembly: INSERTA
  • Flange Dimensions: 65mm (Width), 23mm (Length), 7mm (Height)
  • Hinge Boss Drilling Diameter: 35mm
  • Fixing Hole Diameter: 8mm
  • Distance Between Drillings: 45mm
  • Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
  • Boss Drilling Depth: 12mm
  • Side Adjustment: +/- 2mm (screw-based)
  • Depth Adjustment: +3/-2mm (spiral screw)
  • Gap: 1.5mm
  • Collision Measurement (Hinge Arm Height): 40mm
  • Fixed Dimension/Factory Setting: -7mm
  • Packaging: Industrial packing (1 piece per pack)

Note: All plates are sold separately
