Blum’s hinge systems are a perfect blend of innovation and functionality. Designed for ease of use, reliability, and attractive appearance, these hinges feature 3-dimensional adjustability to ensure a precise fit and effortless operation. Built to last, they are tested to endure up to 200,000 cycles of opening and closing, providing durable solutions for a wide range of applications— from wood and glass doors to aluminum frames, and both thin and thick doors. Specialized solutions are also available for blind corner and angled configurations.
TheCLIP top sprung hinges are fully compatible with all CLIP mounting plates. They offer adjustable side, height, and infinite depth adjustments via a spiral screw. Several mounting plates even feature cam height adjustment, making it easier than ever to install, remove, and adjust doors without tools.
Blum’s signatureCLIP mechanism ensures tool-free assembly, simplifying door-to-cabinet installation and providing smooth, reliable operation with minimal effort.
Key Features:
Tested to withstand over 200,000 opening and closing cycles
Suitable for a variety of applications, including both thin and thick doors
3-dimensional adjustment for easy customization
Quick, tool-free assembly with Blum’s CLIP system
Specifications:

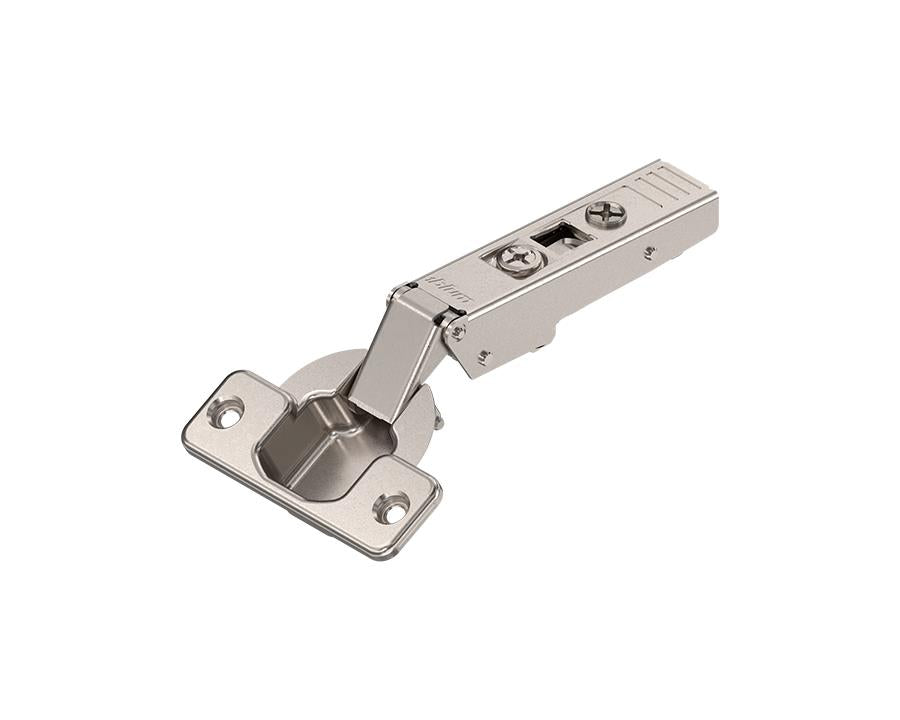

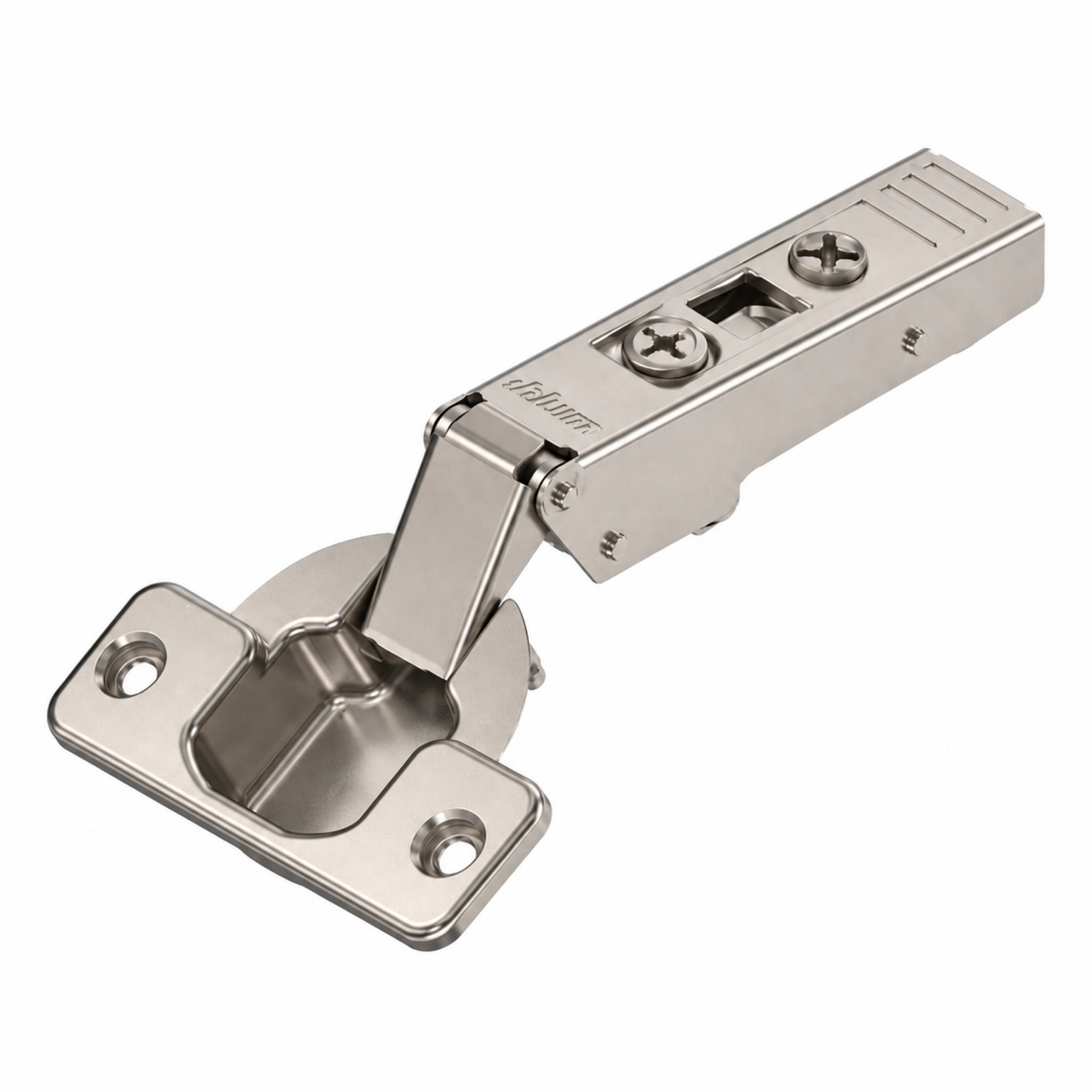

Application: Standard hinge for overlay doors
Opening Angle: 120°
Closing Mechanism: Spring-based
Cover Cap Types: 90M2503, 70.1503 (BPC10021)
Boss Material: Steel
Boss Finish: Nickel plated
Assembly: Screw-on boss
Flange: Width 57mm, Length 20mm, Height 3.2mm
Hinge Boss Drilling: Diameter 35mm, Drilling Depth 12.6mm
Drill Hole Spacing: 45mm, with eccentric positioning (9.5mm)
