Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment, and assembly ease, combined with an attractive design. Our hinges allow for precise 3-dimensional adjustment.
Constructed to withstand over 200,000 opening and closing cycles, our hinge range offers solutions for various applications, including wood, glass, and aluminium frame doors, as well as thin and thick doors. We also provide specialized solutions for blind corner and angled applications.
With features like INSERTA and the CLIP attachment mechanism, attaching the hinge to the door and mounting plate is quick and easy. The system snaps effortlessly into place, and Blum offers a variety of boring and insertion machines, assembly aids, and templates to ensure precise and fast installation.
Blum’s time-tested CLIP mechanism ensures door-to-cabinet assembly is tool-free, quick, and simple. Each door equipped with Blum hinges opens and closes smoothly and reliably.
Key Features:
Tested to withstand over 200,000 opening and closing cycles
Suitable for all applications
3-dimensional adjustment
Easy assembly and adjustment
Specifications:

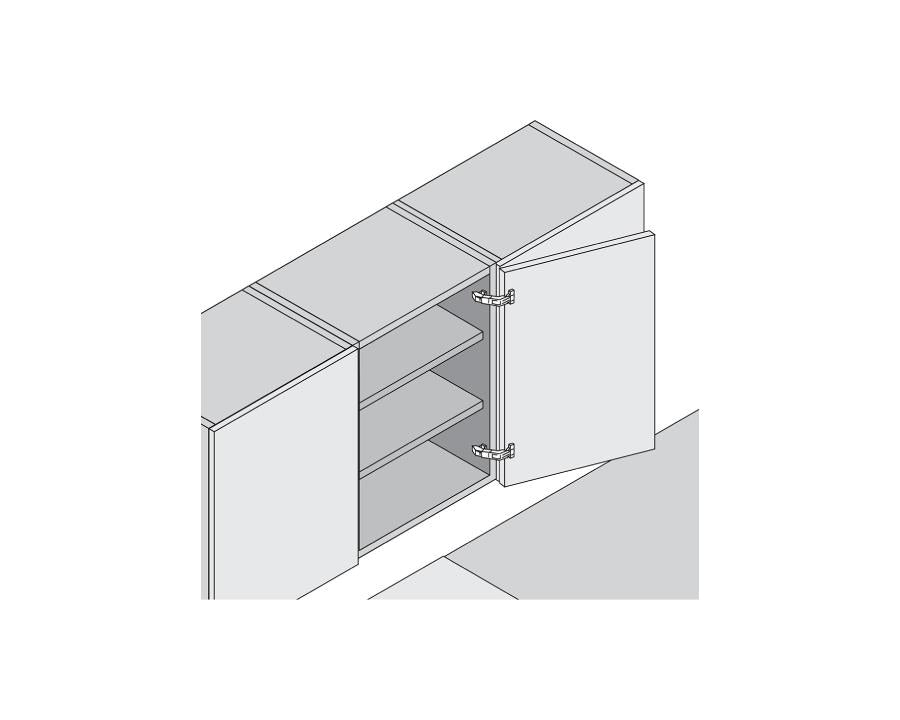

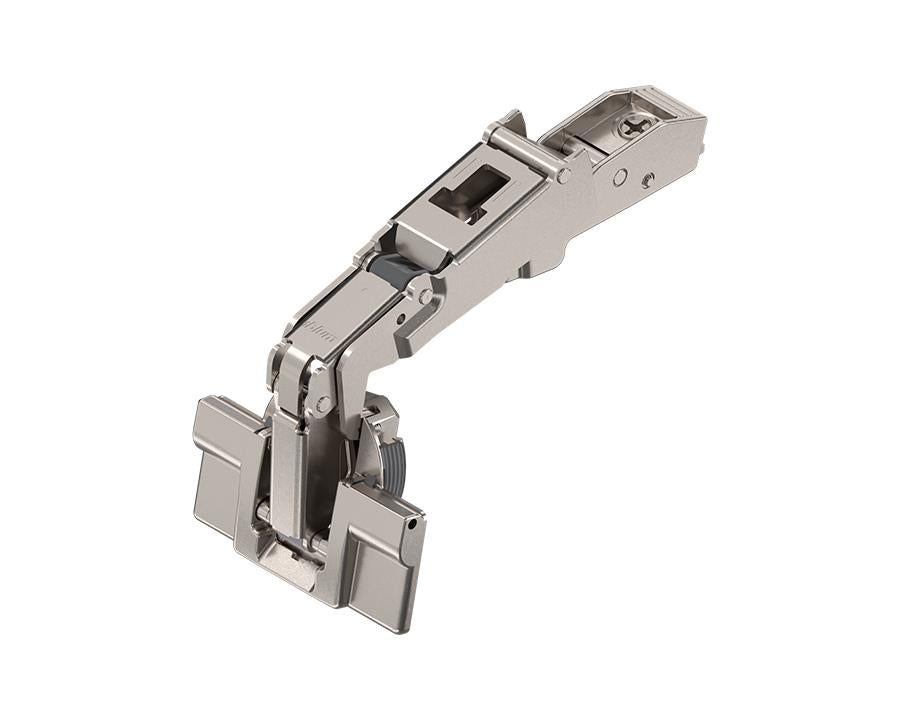

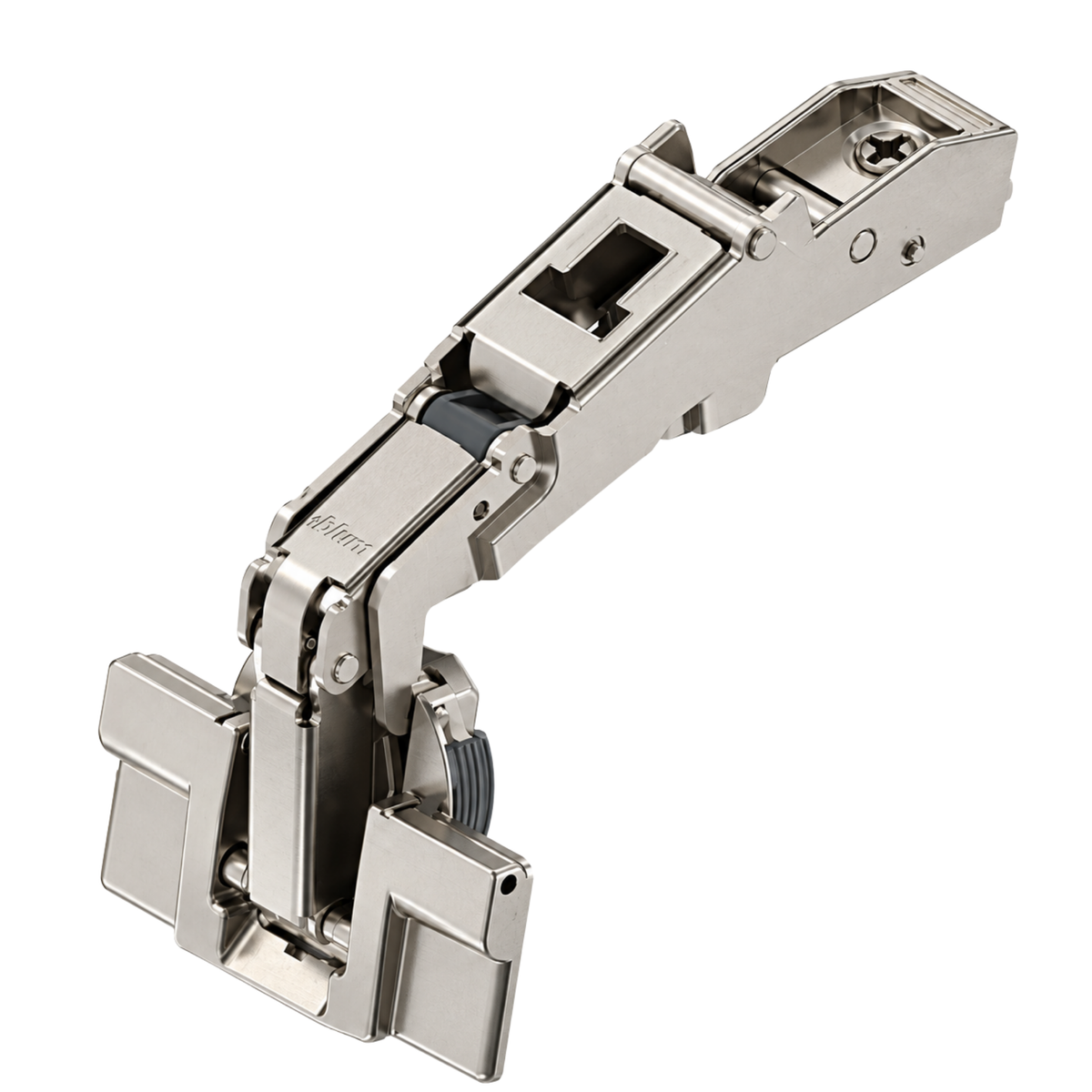

Application: Wide angle hinge
Cranking: Overlay application
Opening angle: 170°
Closing mechanism: With spring
Hinge variant: For BLUMOTION 973A
Cover cap type: 80.6507
Boss material: Steel boss
Boss finish: Nickel plated
Boss assembly: INSERTA
Flange width: 65mm
Flange length: 30.5mm
Flange height: 7.2mm
Diameter hinge boss drilling: 35mm
Diameter of fixing holes: 8mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
Boss drilling depth: 11.2mm
Minimum drilling distance: 3mm
Maximum drilling distance: 8mm
Arm material: Zinc
Arm finish: Nickel plated
Collision measurement (hinge arm height): 65mm
Fixed dimension/factory setting: 11mm
Type of side adjustment: With screw
Side adjustment: +/-2mm
Type of depth adjustment: Convenient with spiral screw
