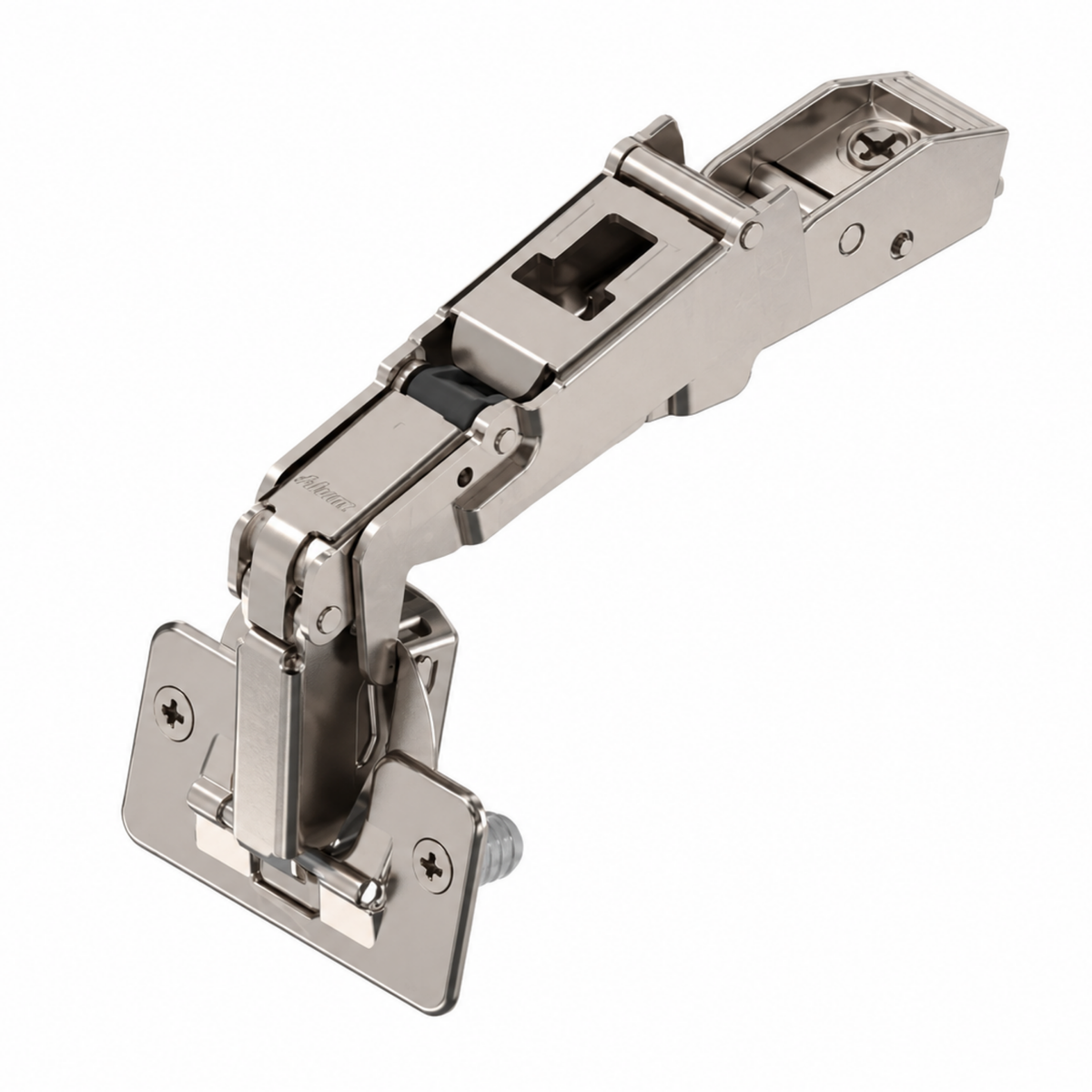

Blum CLIP top Wide Angle Hinge 170 Degree Full Overlay Boss Knock-In BM71668 by W&B

SKU: IWBCWAH170DFO

Price

$15.07

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley

Blum’s ingenuity and technical expertise define the advanced functionality of our hinge systems. Our hinges are designed for reliable operation, easy adjustments, and a sleek aesthetic. The 3-dimensional adjustability ensures precision and smooth movement, making installation and use effortless.

Engineered to endure more than 200,000 cycles of opening and closing, our hinge range accommodates various applications, including wood, glass, and aluminum frame doors. Whether you have thin or thick doors, Blum offers solutions, along with specialized options for corner and angled installations.

Our CLIP top sprung hinges are fully compatible with all CLIP mounting plates, offering seamless side, height, and infinitely adjustable depth via a spiral screw. Many mounting plates also feature cam height adjustment for added convenience. The tool-free attachment system allows for fast and efficient door front attachment and removal.

Blum’s CLIP mechanism simplifies the door-to-cabinet assembly, ensuring an easy, quick, and tool-free installation process. Every Blum hinge-equipped door operates with consistent ease and reliability.

Key Features:

Tested to withstand over 200,000 opening and closing cycles
Versatile for a variety of applications
3-dimensional adjustment for precise alignment
Quick and easy tool-free assembly

Specifications:

Application: Wide angle hinge
Cranking: Overlay application
Opening angle: 170°
Closing mechanism: Spring-assisted
Cover cap type: 80.6507
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 30.5mm (length) x 2.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric position: 9.5mm
Boss drilling depth: 11mm
Arm material: Zinc, nickel-plated
Collision measurement (arm height): 65mm
Factory setting (fixed dimension): 11mm
Side adjustment: +/-2mm (with screw)
Depth adjustment: +3/-2mm (with screw)
Gap: 1.5mm
Packaging: Industrial packing (1 piece per package)

Note: All plates are sold separately.
