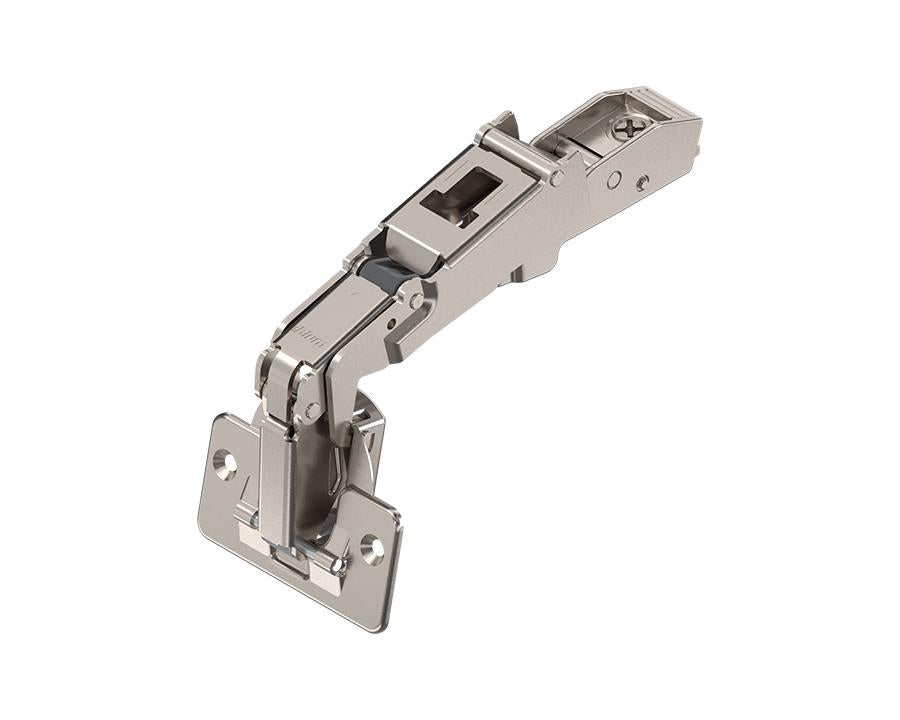

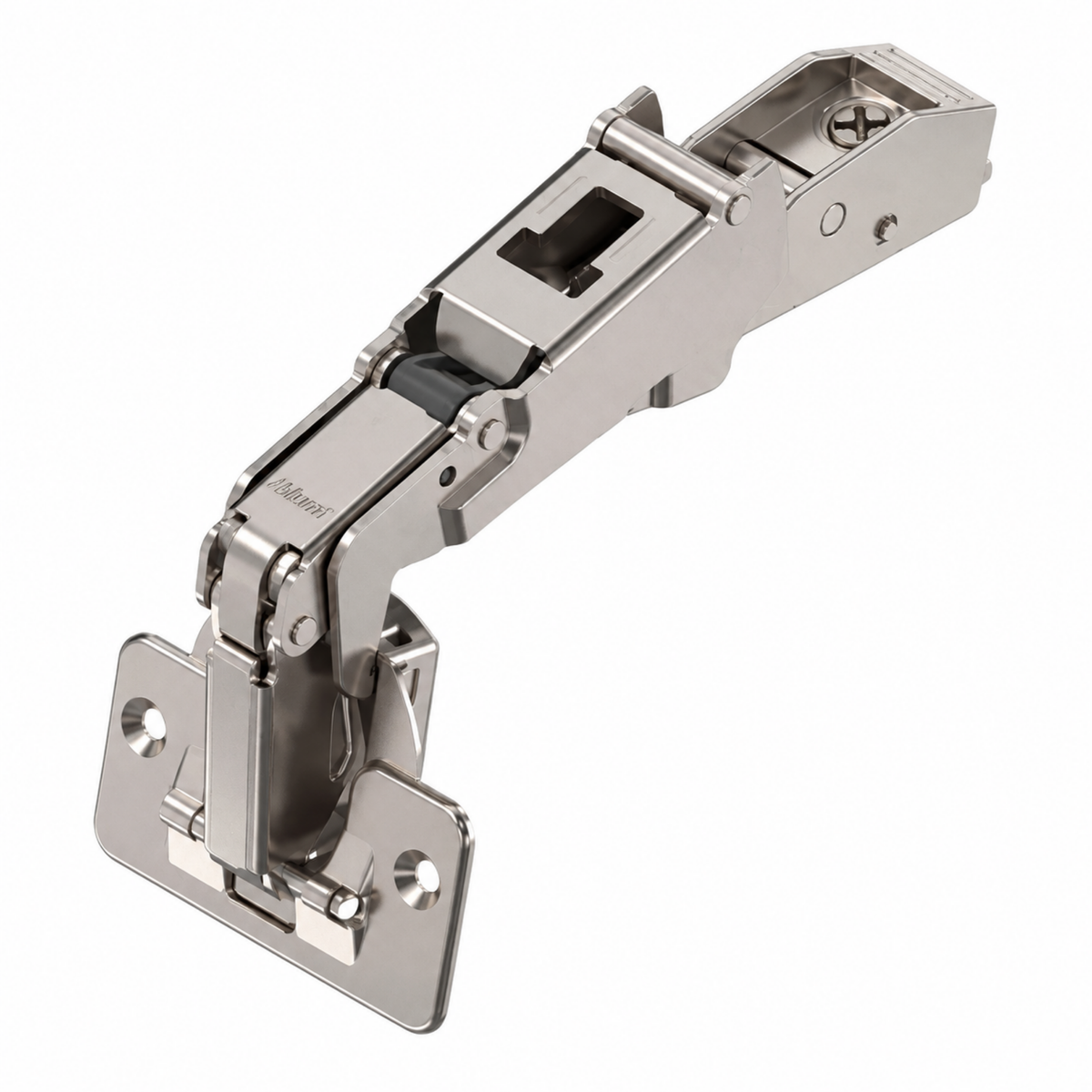

Blum CLIP top Wide Angle Hinge 170 Degree. Full Overlay. Boss: Screw-On by W&B

Blum Hinge Systems by Wilson and Bradley

Blum’s innovative hinge systems combine superior functionality, precise adjustment, and streamlined assembly with an attractive design. Built for durability, these hinges allow for 3-dimensional adjustment, ensuring a perfect fit with minimal effort. Tested to withstand 200,000 opening and closing cycles, Blum hinges are versatile enough to support a range of materials, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Special solutions are also available for angled and blind corner applications.

The CLIP top sprung hinge works seamlessly with all CLIP mounting plates, offering easy side, height, and depth adjustments via a spiral screw. Many mounting plates also feature cam height adjustments, allowing for simple, tool-free attachment and removal of doors.

Thanks to Blum’s tried-and-true CLIP mechanism, assembling doors to cabinets is quick, easy, and tool-free, ensuring smooth, reliable operation every time.

Key Features:

• Tested to 200,000 opening/closing cycles for durability
• Adaptable for a wide range of door applications
• 3-dimensional adjustment for precise fit and alignment
• Tool-free, quick assembly with Blum’s CLIP system

Specifications:

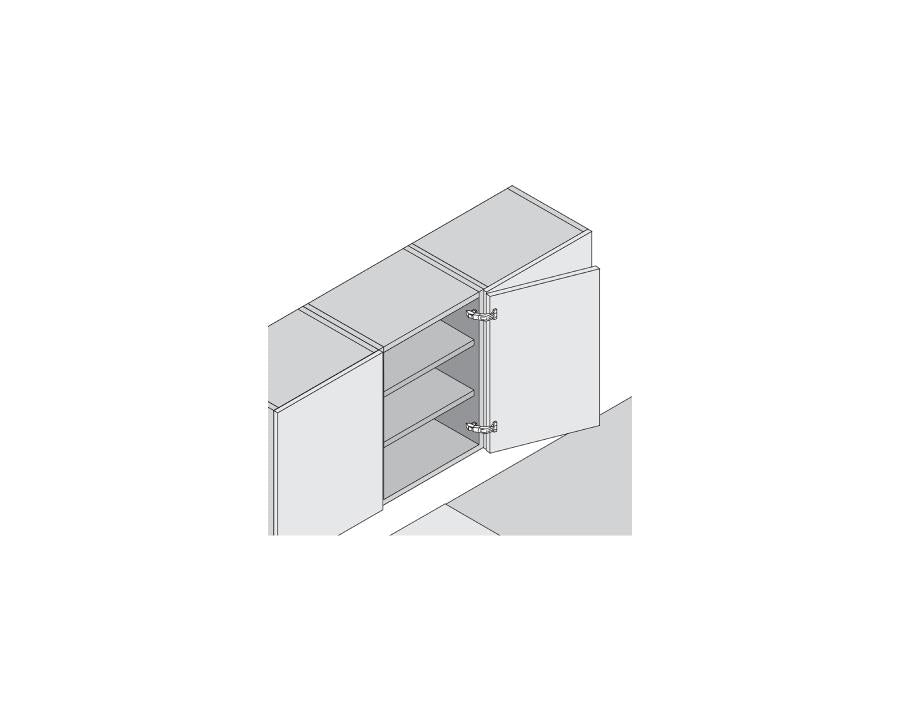

• Application: Wide angle hinge for overlay doors
• Opening Angle: 170°
• Closing Mechanism: Spring-based
• Cover Cap Type: 80.6507
• Boss Material: Steel, nickel plated

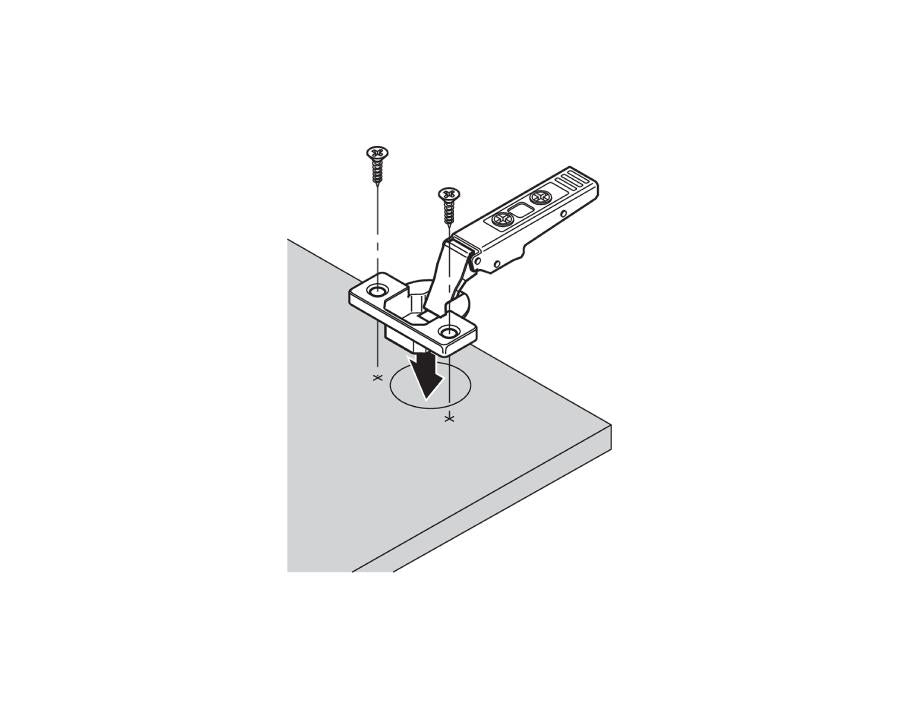

• Boss Assembly: Screw-on
• Flange: Width 57mm, Length 30.5mm, Height 2.2mm
• Hinge Boss Drilling: 35mm diameter, 11mm depth
• Drilling Spacing: 45mm, eccentric position (9.5mm)
• Side Adjustment: +/- 2mm with screw
• Depth Adjustment: +3/-2mm with spiral screw
• Gap: 1.5mm
• Item Package: 1 piece (commercial packaging)

Note: Plates sold separately.
