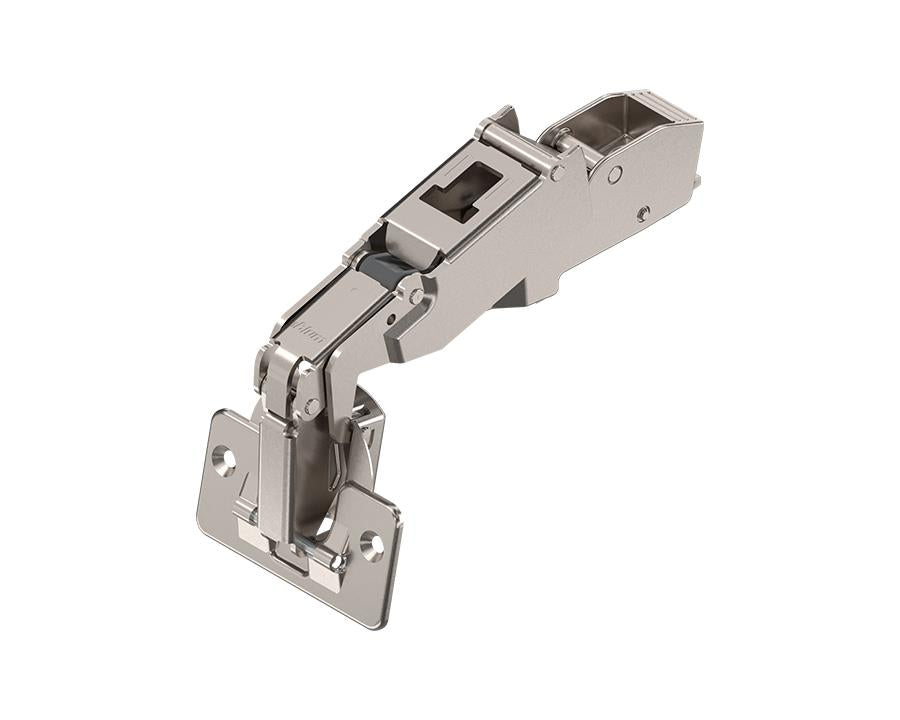

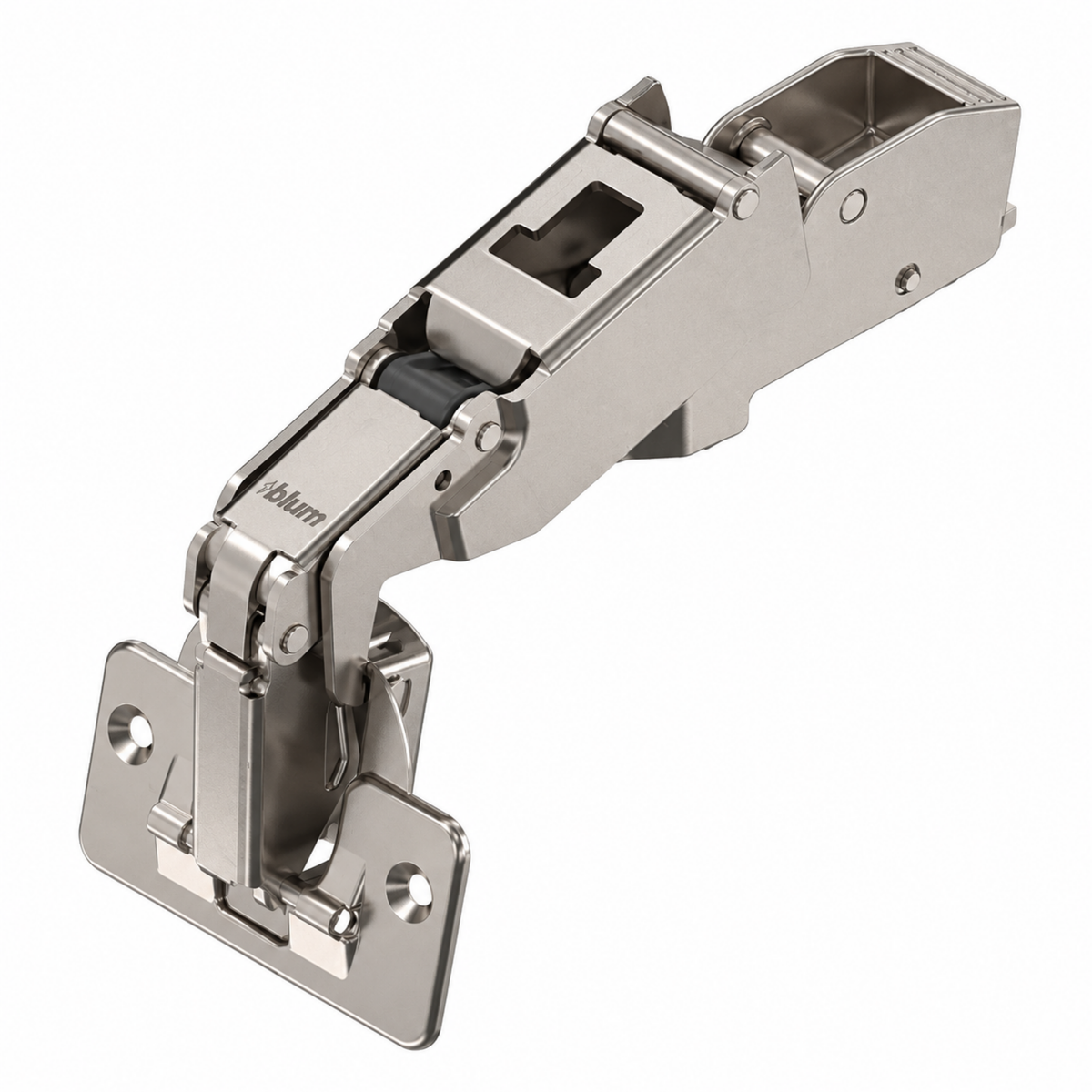

Blum CLIP top Wide Angle Hinge 170 Degree. Half Overlay. Boss: Screw-On by W&B

Blum Hinge Systems by Wilson and Bradley

Blum’s hinge systems embody innovation and precision, offering superior functionality, enhanced adjustability, and effortless assembly. Designed for both aesthetics and reliability, Blum hinges allow for 3-dimensional adjustment, ensuring perfect alignment and smooth operation.

Engineered to withstand over 200,000 cycles of opening and closing, Blum hinges are versatile enough for a wide variety of applications, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Special solutions are available for challenging configurations like blind corners and angled installations.

The CLIP top sprung hinge is compatible with all CLIP mounting plates, offering seamless side, height, and depth adjustments via a spiral screw. Many mounting plates feature cam height adjustment, enabling tool-free attachment and removal of doors.

Blum’s CLIP mechanism streamlines door-to-cabinet assembly, ensuring quick, easy, and reliable door operation without the need for tools.

Key Features:

• Tested to 200,000 cycles for long-lasting durability
• Versatile design suitable for various door applications
• 3-dimensional adjustment for precise customization
• Quick, tool-free assembly with Blum's CLIP system

Specifications:

• Application: Wide angle hinge for dual applications
• Opening Angle: 170°
• Closing Mechanism: Spring-based
• Cover Cap Type: 80.6507
• Boss Material: Steel, nickel plated

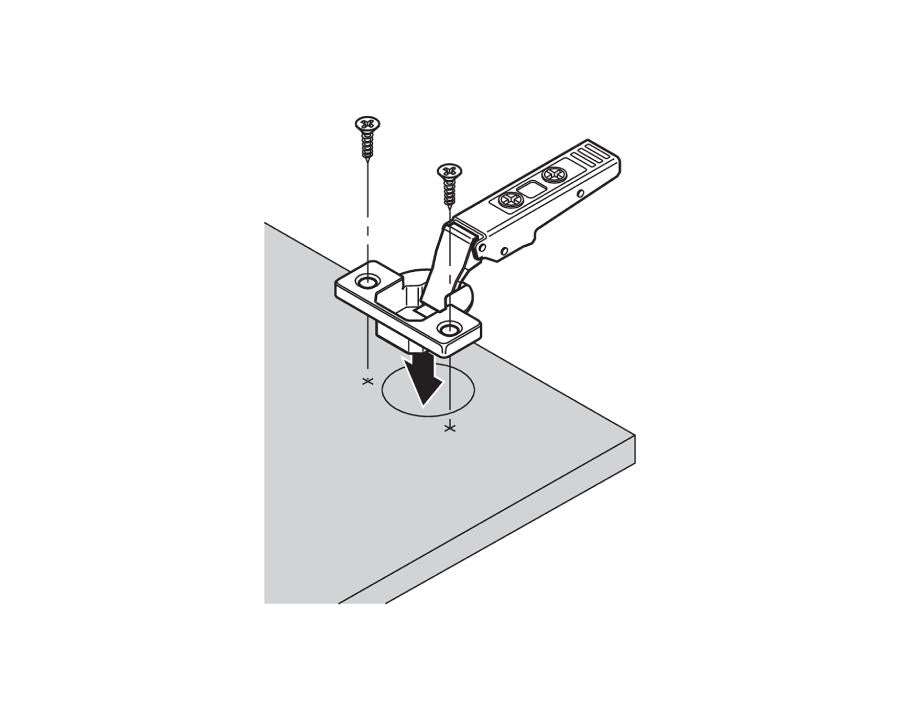

• Boss Assembly: Screw-on
• Flange: Width 57mm, Length 30.5mm, Height 2.2mm
• Hinge Boss Drilling: Diameter 35mm, Drilling Depth 11mm
• Drill Hole Spacing: 45mm, eccentric (9.5mm)
• Side Adjustment: +/- 2mm via screw
• Depth Adjustment: +3/-2mm with spiral screw
• Gap: 1.5mm
• Item Package: 1 piece (industrial packaging)

Note: Plates sold separately.
