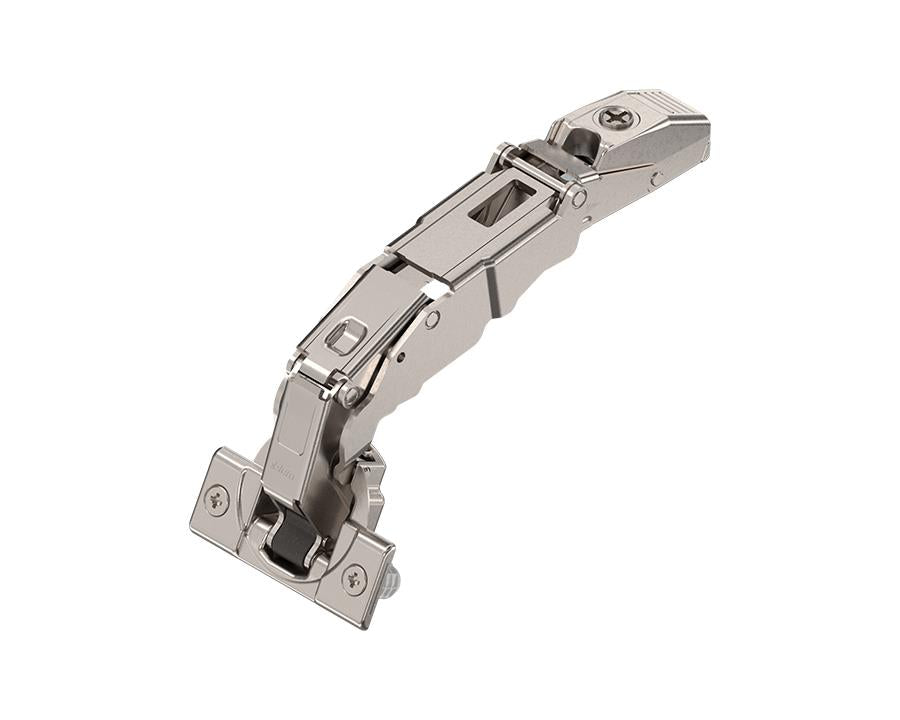

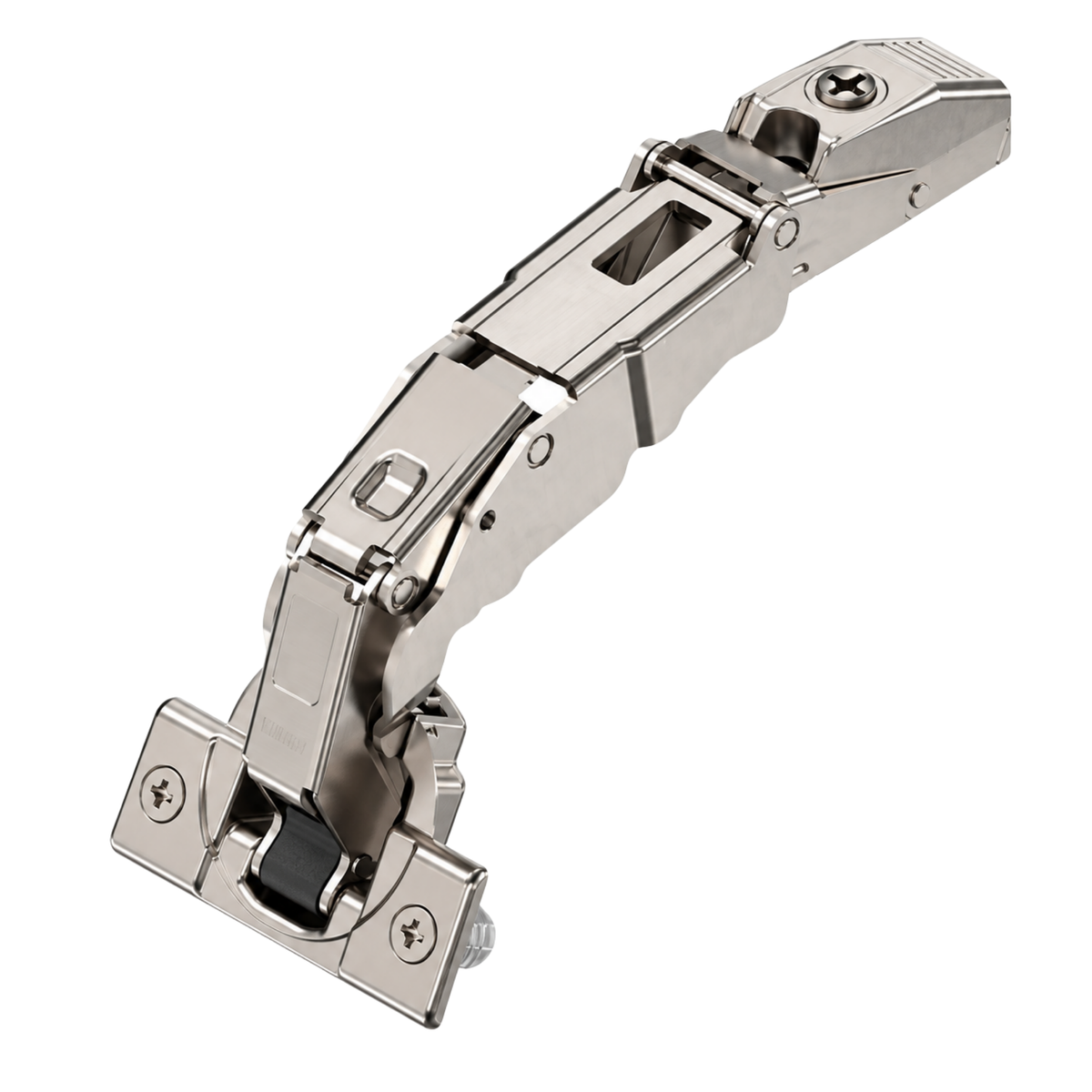

Blum CLIP top wide angle hinge for 0-protrusion 155° hinge. Overlay Application. Boss: Knock-on. Spring. 71T7580 ** Not compatible with BLUMOTION attachment ** by W&B
Blum CLIP Top Wide Angle Hinge – 155° Overlay with Spring by Wilson & Bradley
Blum hinges provide reliable performance, smooth adjustment, and easy installation. Built to last, they withstand over 200,000 opening and closing cycles and are suitable for wood, glass, aluminium frame, and doors of various thicknesses, including special applications like blind corners and angled doors.
The CLIP top design allows quick, tool-free door attachment and removal. Compatible with all CLIP mounting plates, these hinges offer easy side, height, and depth adjustment with a spiral screw, with some plates including cam height adjustment.
Key Features
Tested for 200,000 cycles for long-lasting durability
3-way adjustment for perfect alignment
Tool-free assembly with CLIP mechanism
Smooth, quiet closing with spring
Technical Specifications
Application: Wide-angle hinge, zero protrusion
Cranking: Overlay
Opening Angle: 155°
Closing Mechanism: Spring
Cover Caps: 70.4503 (BM704503) and 70T7504 boss cover cap (BHBC)
Boss Material/Finish: Steel, nickel plated, knock-in assembly
Flange Dimensions (W×L×H): 57 × 22 × 3.2 mm
Hinge Boss Drilling: 35 mm diameter, 11.7 mm depth
Fixing Holes: 8 mm diameter, 45 mm apart, offset 9.5 mm
