IW- BHC-MPS-175H3100

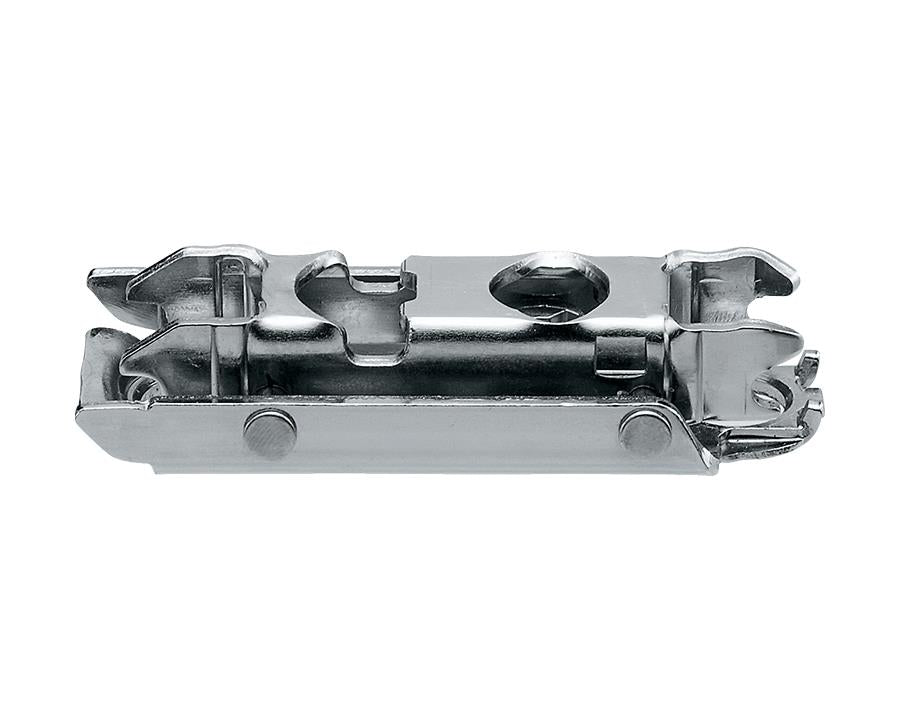

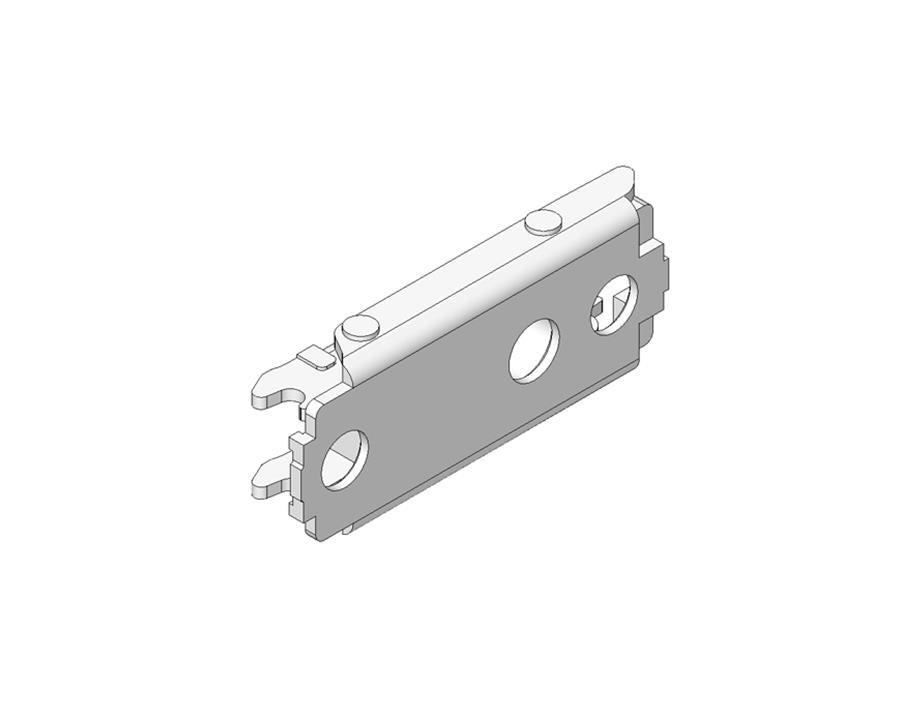

Blum Hinge Clip Mounting Plate Straight 0mm Screw On Cam 1 pce 175H3100.

Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment and assembly ease and attractive design, our hinges allow for 3-dimensional adjustment.

Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminum frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.

● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment

● Mounting plate system: CLIP
● Shape of mounting plate: Straight
● Upper part material: Steel
● Surface of bottom part: Nickel plated
● Finish: Nickel plated
● Fixing: For chipboard screws
● Distance cabinet front edge to first fixing position: 20mm
● Mounting plates height adjustment: With cam
● Height adjustment: +/-2mm
● Height: 8.5mm
● Spacing: 0
● Angle: 0
● Item package: 1 piece
● Packaging: Industrial packing
● Material of bottom part: Steel
● Fixing positions: Fixing position 58/horizontal mounting plate
● Mounting plate accessories: 664.350 chipboard screw magazine packed, enclosed
