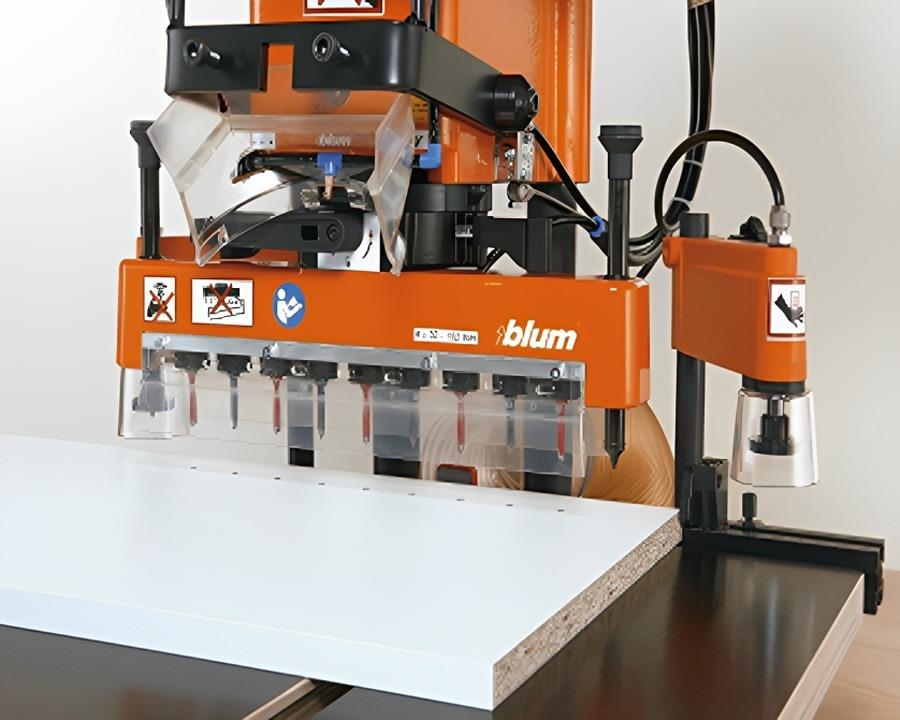

MINIPRESS P Drilling and Insertion Machine by Wilson and Bradley
The MINIPRESS P is the perfect solution for precise drilling and fitting insertion for Blum products. Designed for quick, reliable assembly, this machine handles front assemblies with ease, ensuring precise and efficient results. Whether you're drilling for cabinet profiles, front fixing brackets, or inserting Blum fittings, the MINIPRESS P makes each task straightforward and accurate.
The machine features a pneumatic feed system for efficient operation and adjustable drilling distance settings via spindle, ensuring the highest levels of accuracy. Thanks to its multi-swivel gearbox, setting up various drilling patterns for Blum fittings is quick, tool-free, and precise, making it ideal for high-volume and routine tasks.
With the option to retrofit with the EASYSTICK, the MINIPRESS P provides even greater flexibility, offering automatically movable stops in the X axis for ultimate precision and convenience. This is a must-have tool for Blum product assembly, backed by a lifetime guarantee on all Blum products.
Features:
Vertical drilling and insertion for Blum fittings
Drilling distance settings using an adjustable spindle
Pneumatic feed for smooth operation
Can be retrofitted with EASYSTICK for enhanced flexibility
Optional automatically movable stops in the X axis with EASYSTICK
9-spindle drilling head for efficient line drilling within the 32 mm tier system

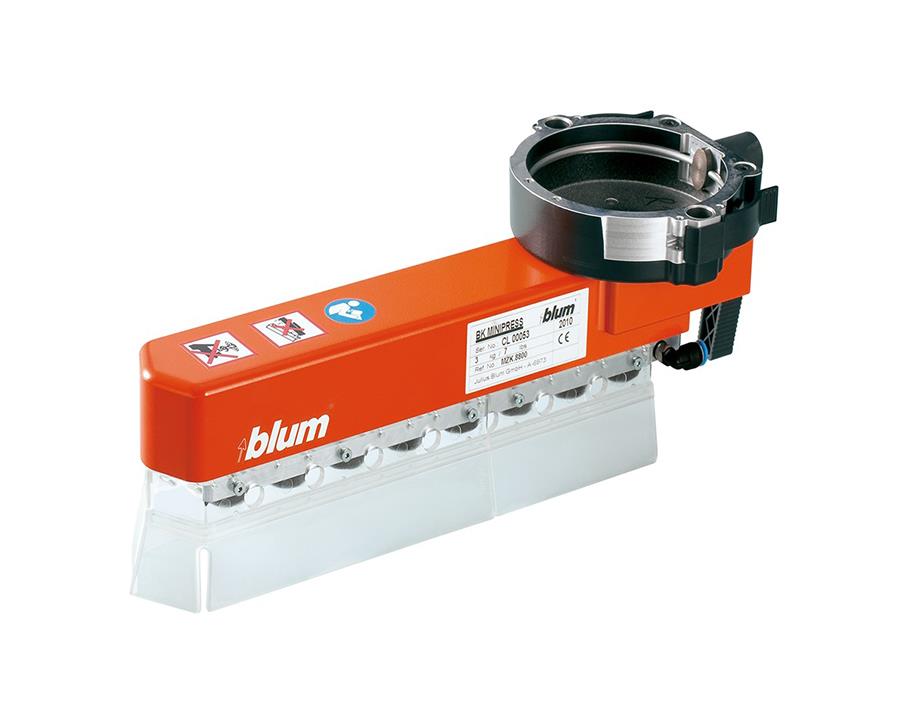

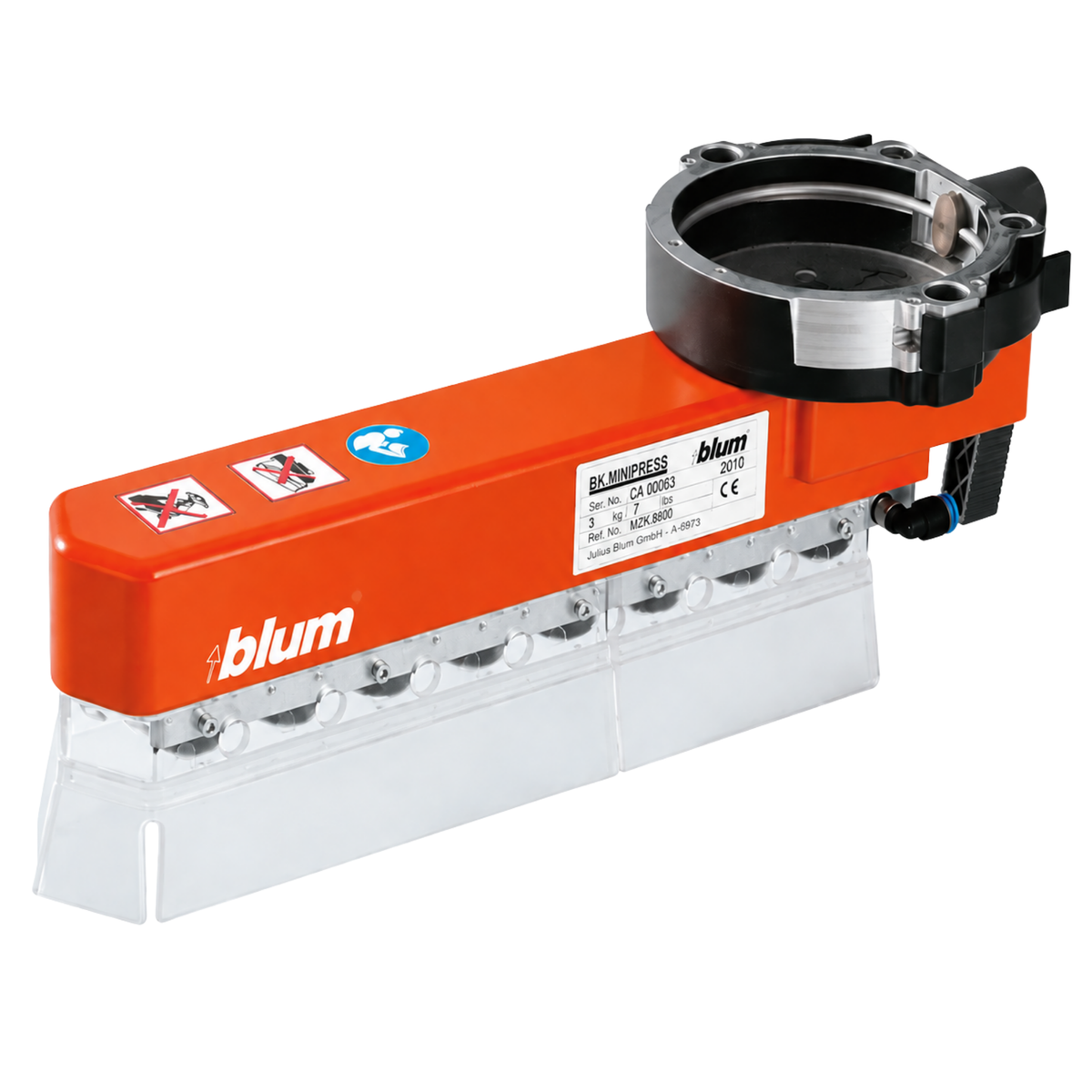

8-spindle drilling head for AVENTOS lift mechanisms, box front fixings, and cabinet profiles
Easy quick-connect chuck for fast assembly of the drilling head
Specifications:
Type of Drilling Head: Drilling head
Assembly Device Variation: Drilling head with quick connect chuck
Rotating: No
Processing Possibilities: Drilling (Cabinet profiles, front fixing brackets)
Model: Series CM
Number of Spindles: 8
Rotating Sense of Spindle: 4 right, 5 left
Drilling Head Assembly: Quick connect chuck with cover
