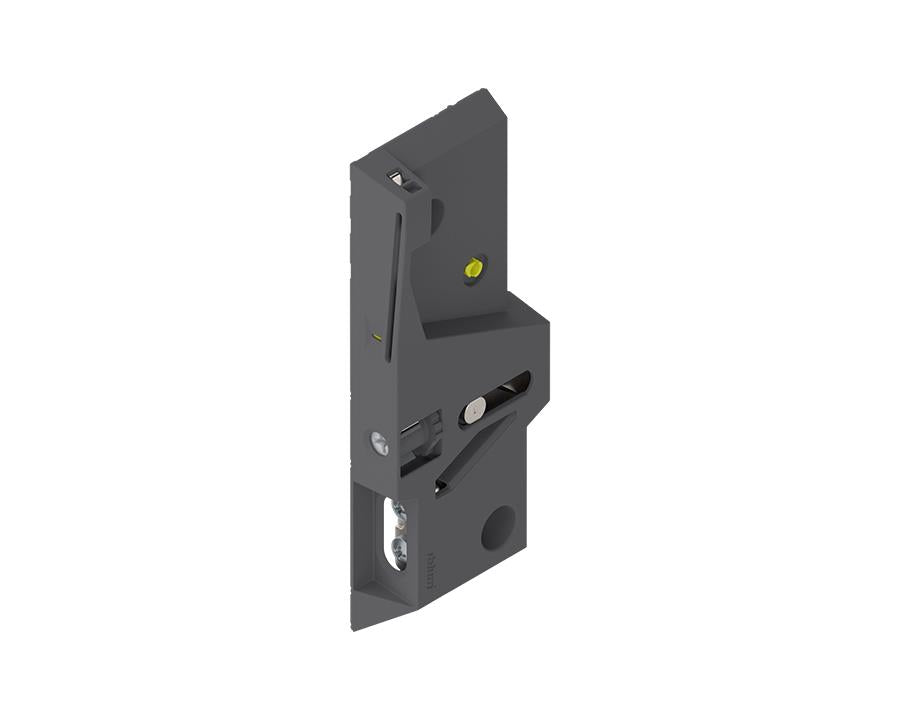

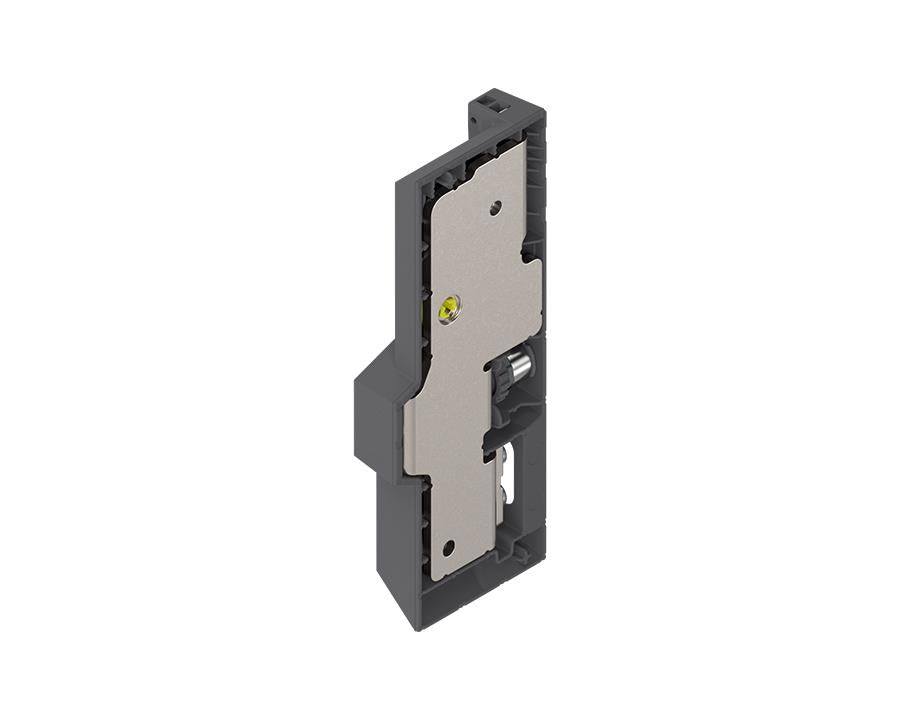

Blum REVEGO duo Cable Tensioner Left. 801T00004L2 by W&B

REVEGO Duo Cable Tensioner (Left) – by Wilson and Bradley

Product Details:

Type: Cable Tensioner
Application: For REVEGO duo
Item Package: Left

Required Screw: Blum System Screw, Countersunk Head 6 × 14.5 mm (6611450HG) – Must be used for installation and can be purchased separately

Recommended Accessory: Door straightener CBR04DS – Recommended for use with every REVEGO uno & duo pocket system and can be purchased separately

Important Information:

• Internal dimensions of the application (width × height × depth) determine the maximum space available for internal construction
• For combined front installations, design and size the widest panel first
• Certified durability of 40,000 opening and closing cycles
• Manual operating force remains below 70 N according to durability testing
• Drilling patterns, cut-to-size dimensions, and detailed parts lists are available via the Blum Group Product Configurator

Assembly Requirements:

• Wooden components must be machined using a CNC machine or MINIPRESS top with EASYSTICK
• Horizontal drill holes and a track cut-out are required for proper installation
• Use of the REVEGO pocket connector drilling template is recommended to ensure precise horizontal drillings
