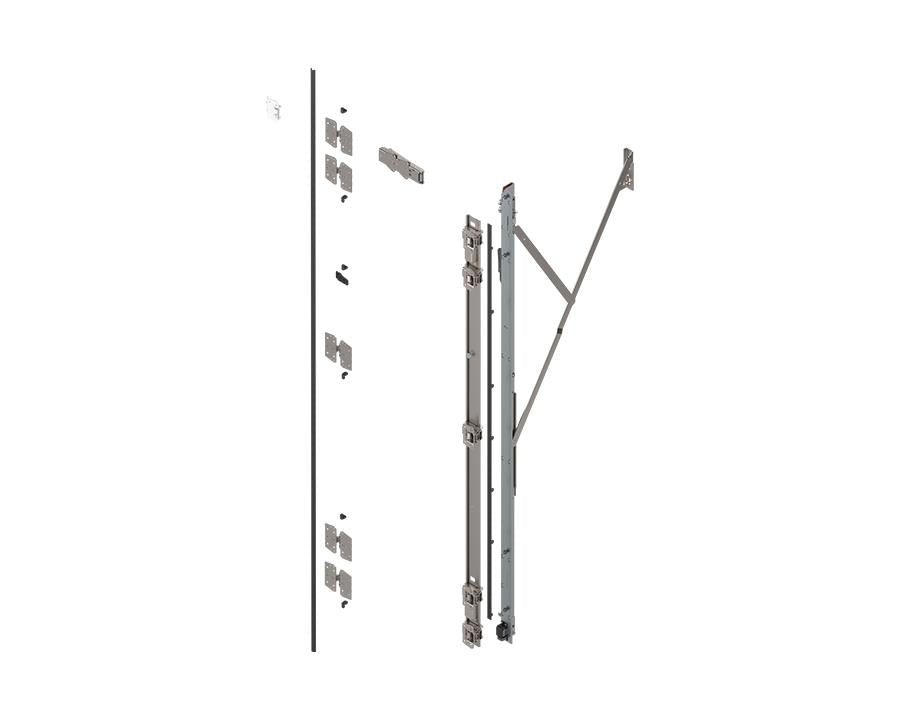

Blum REVEGO duo Hinge Bracket Set with TIP-ON for Pocket Height 1957 - 2106mm. Right. 802T1950.R3 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO duo

• Type: Hinge Bracket
• Application: For REVEGO duo
• Pocket Height: 1957 mm – 2106 mm
• Material: Steel
• Colour / Finish: Zinc plated
• Fixing Method: Tool-free
• Item Package: Set

Required Screw: Blum System Screw, Countersunk Head 6 × 14.5 mm (6611450HG) – Must be used for installation and can be purchased separately

Recommended Accessory: Door straightener CBR04DS – Recommended for use with every REVEGO uno & duo pocket system and can be purchased separately

Important Information:

• Internal dimensions of the application (width × height × depth) determine the maximum space available for internal construction
• For combined front applications, plan and design the widest panel first
• Certified for 40,000 opening and closing cycles
• Manual operating force is less than 70 N according to durability testing
• Drilling patterns, cut-to-size dimensions, and detailed parts lists are available in the Blum Group Product Configurator

Assembly Requirements:

• Wooden parts must be machined using a CNC machine or MINIPRESS top with EASYSTICK from Blum
• Both horizontal drill holes and a track cut-out are required for proper installation
• Blum recommends using the drilling template for REVEGO pocket connectors to ensure precise horizontal drillings
