TIP-ON Mechanical Opening System by Wilson and Bradley

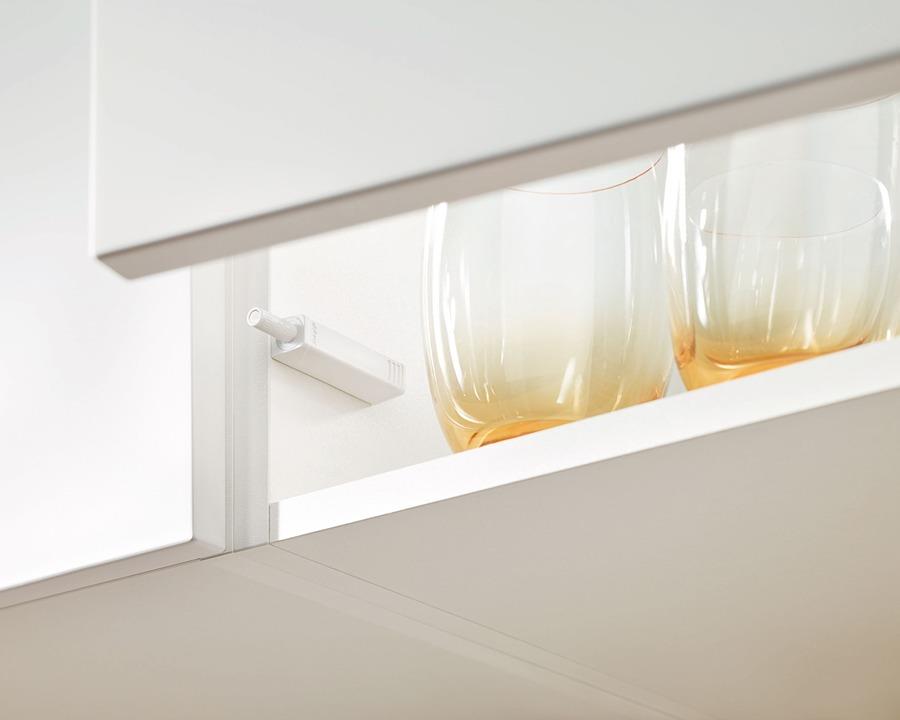

Effortlessly open handle-less furniture with just a single touch, thanks to the TIP-ON mechanical opening system. To close, simply press the door shut. The TIP-ON system continues to work flawlessly even if users pull open the doors or lift systems.
The unit features an integrated adjustment function (+4/-1 mm) for precise gap adjustments. Simply turn the ejector pin left or right according to the arrow markings to fine-tune depth.
The TIP-ON system offers a wide selection of colours and adapter plates, allowing you to choose between short and long versions, drilling or screw-on options, and more — ensuring compatibility with both doors and AVENTOS stay lifts.
Features:
Perfectly integrates with cabinet interiors for a seamless, modern look
Works with unsprung CLIP top hinges to ensure high-quality motion in doors

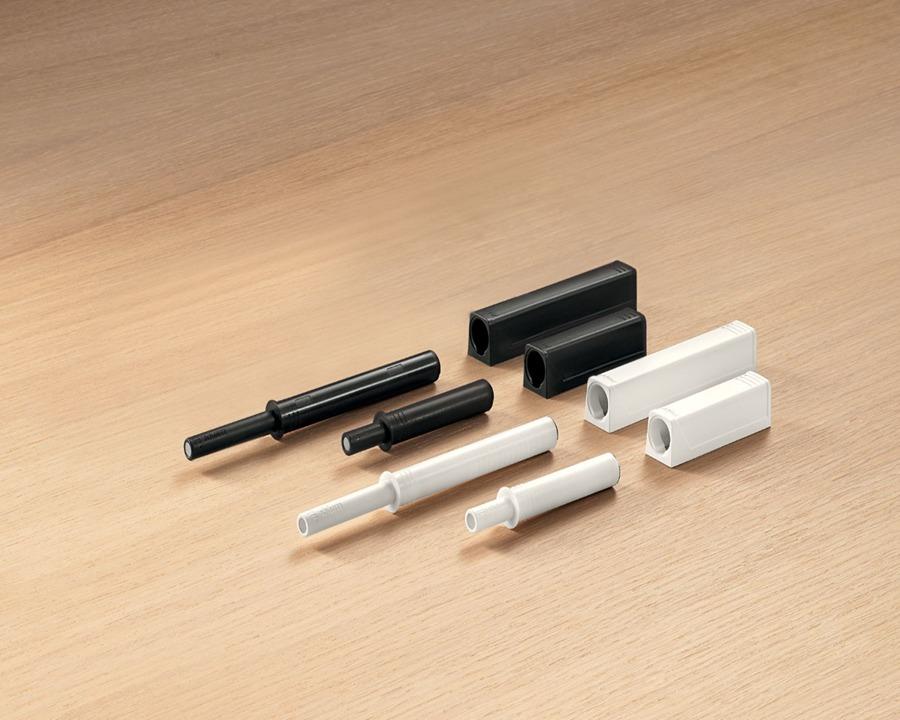

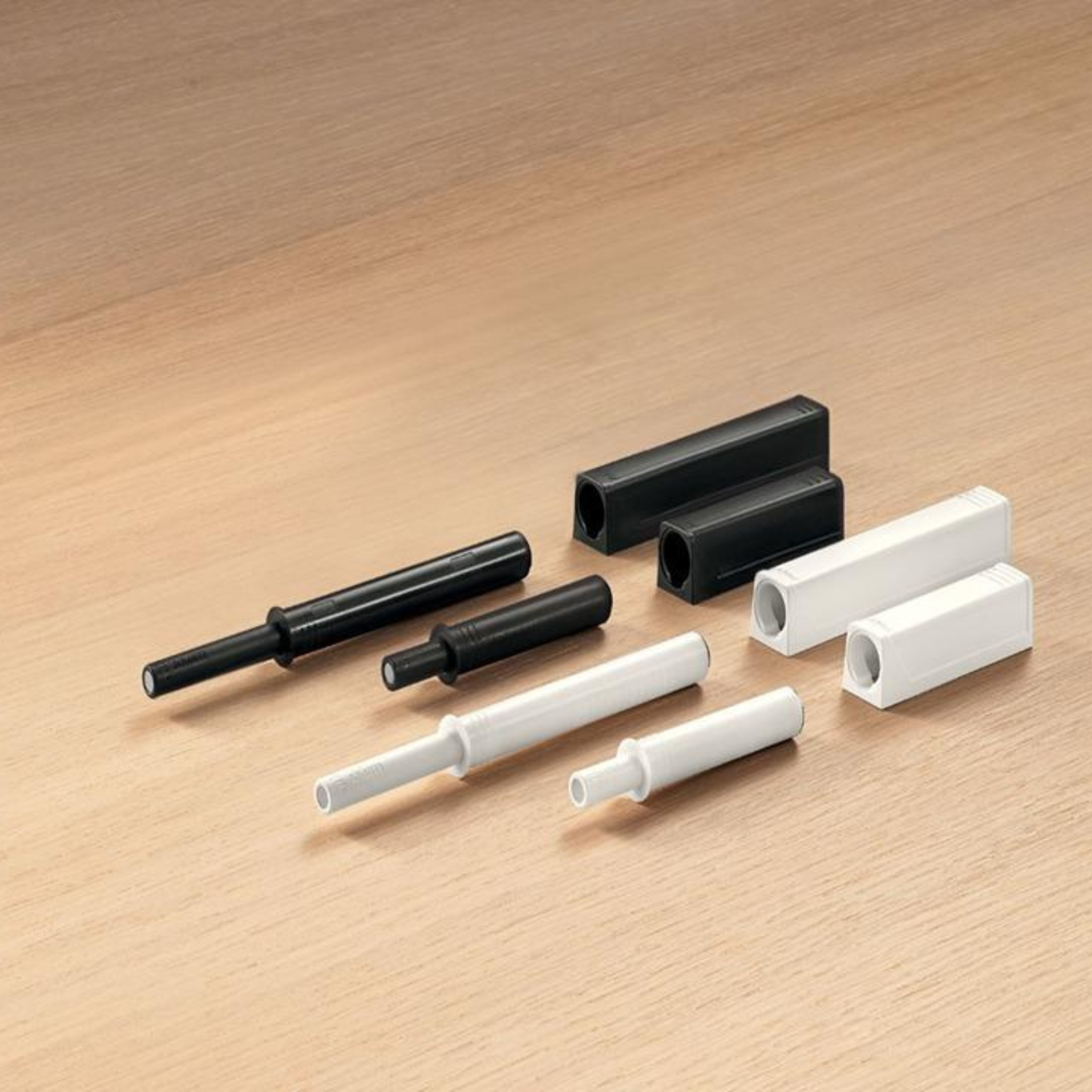

Available in both long and short versions for versatile installation
Offered in Silk White and Terra Black to complement various cabinet designs
Specifications:
Type: TIP-ON
Application: For doors
Fixing Method: Drilling, handle side
Colour/Finish: Silk White, Terra Black
Version: Short version with magnet
Material: Nylon
Trigger Path: 1.5mm
Triggering Force: 19kg

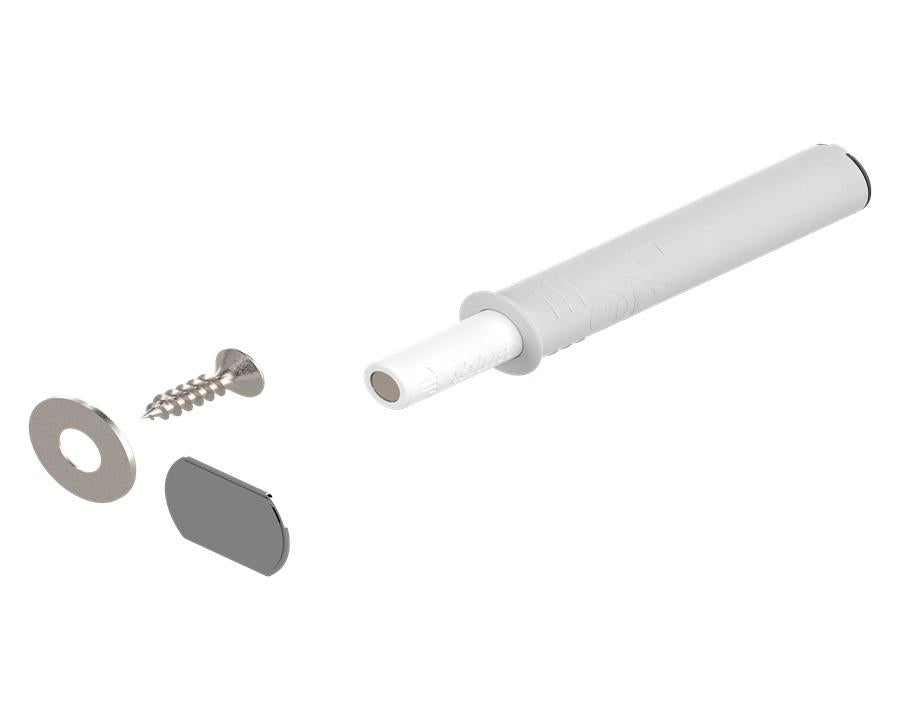

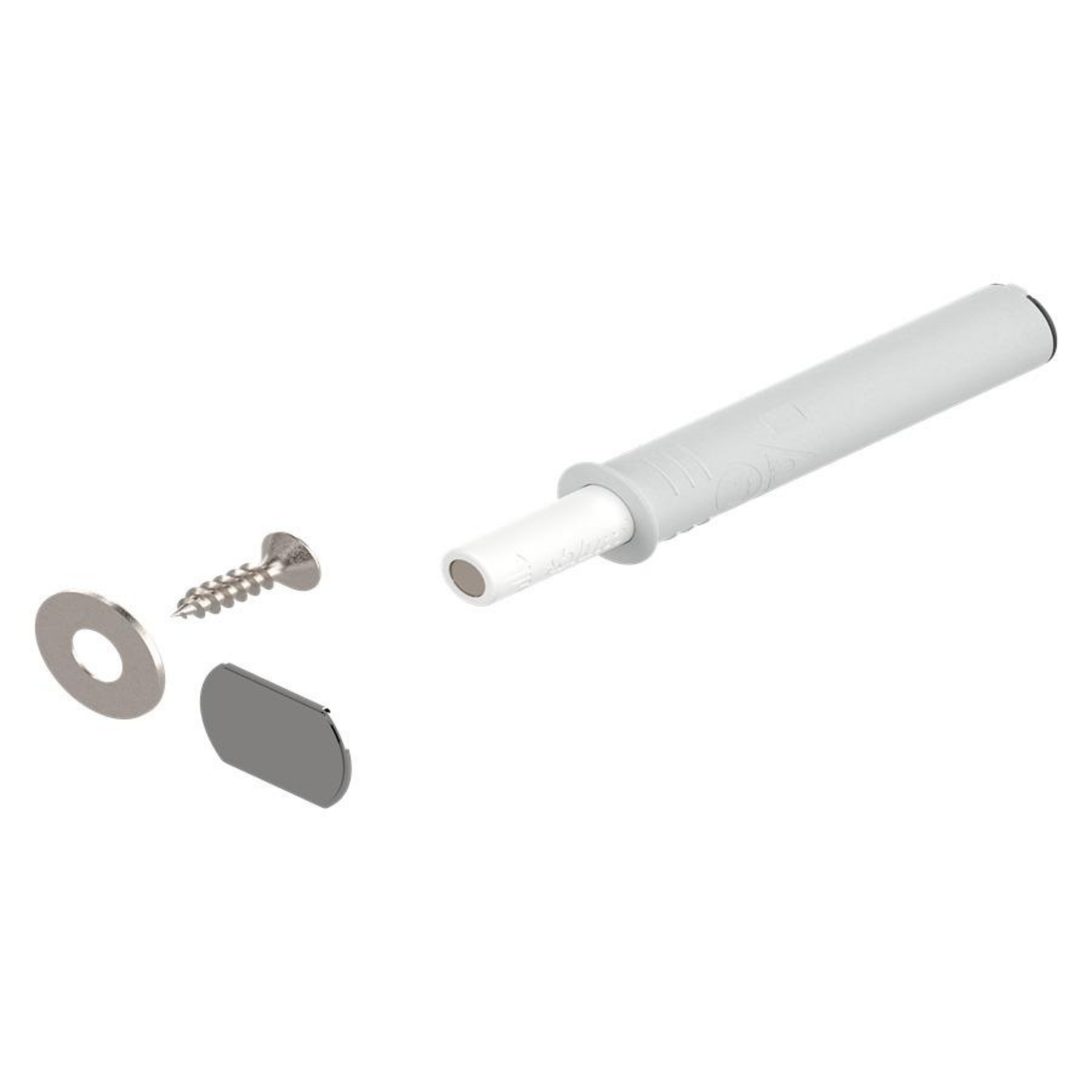

Item Package: 1 piece per set (1 TIP-ON, 2 adhesive plates, 1 screw)
