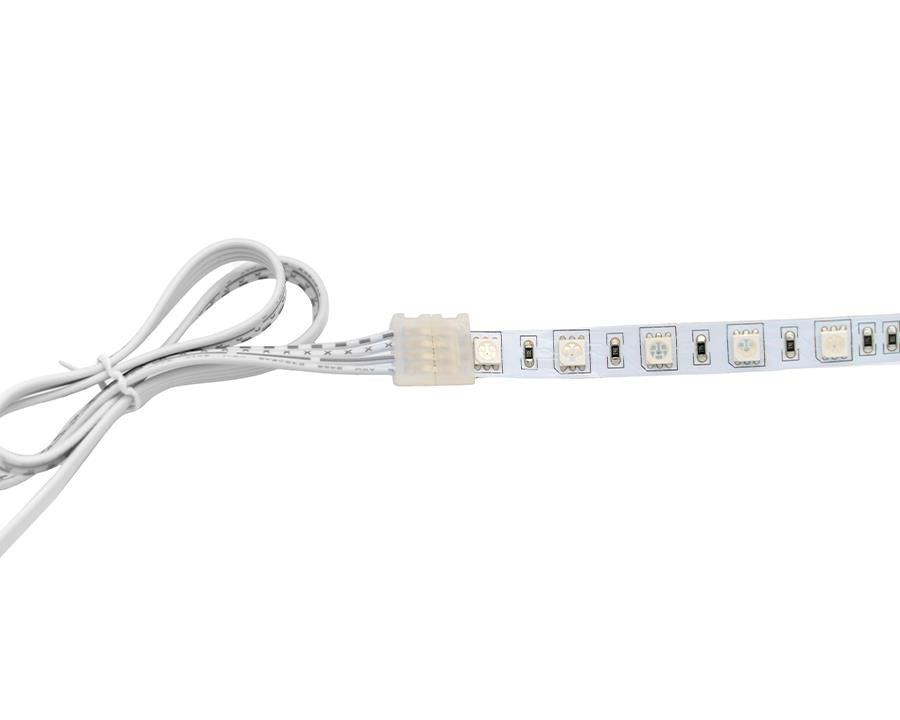

L&S LED 24V Input Cable to suit 24V RGB Flexible Strip Reel by W&B

L&S RGB LED Strip Lighting System – by Wilson and Bradley

Now available at Imperial Glass and Timber, the L&S RGB LED strip system is ideal for accentuating areas like kitchens, cabinets, hallways, and stairs. This energy-efficient lighting allows you to change the colour scheme of any room at the touch of a button.

The upgraded system supports up to 4 RGB strips per driver, an improvement on earlier models, and includes wireless remote control for easy operation—turning lights on/off, selecting colours, and adjusting brightness with convenience.

Features:

• 4-way input to power multiple strips from one driver
• Wireless remote control functionality
• Simple installation process
• Cuttable to size
• Requires RGB Driver LSRGBDR245 for operation

Receiver Specifications:

• Dimensions: 135mm (L) x 30mm (W) x 20mm (H)
• Power Input: 12–24V DC
• Current Load: 3A x 3 channels, max 0.9A
• Output Power: 0–36W (up to 72W) per channel
• Operating Temperature: -30℃ to 55℃

Remote Specifications:

• Dimensions: 104mm (L) x 58mm (W) x 9mm (H)
• Working Voltage: 3V (CR2032 battery)
• Frequency: 433.92MHz
• Operating Temperature: -30℃ to 55℃
