L&S MEC Bluesmart Distribution Module (4-Way) – by Wilson and Bradley
Introducing the next evolution in lighting from L&S, exclusively at Imperial Glass and Timber—the innovative MEC driver system.
The MEC system features a versatile multi-voltage power supply available in five wattage levels, designed for both 12V and 24V applications, simplifying connection across diverse lighting setups.

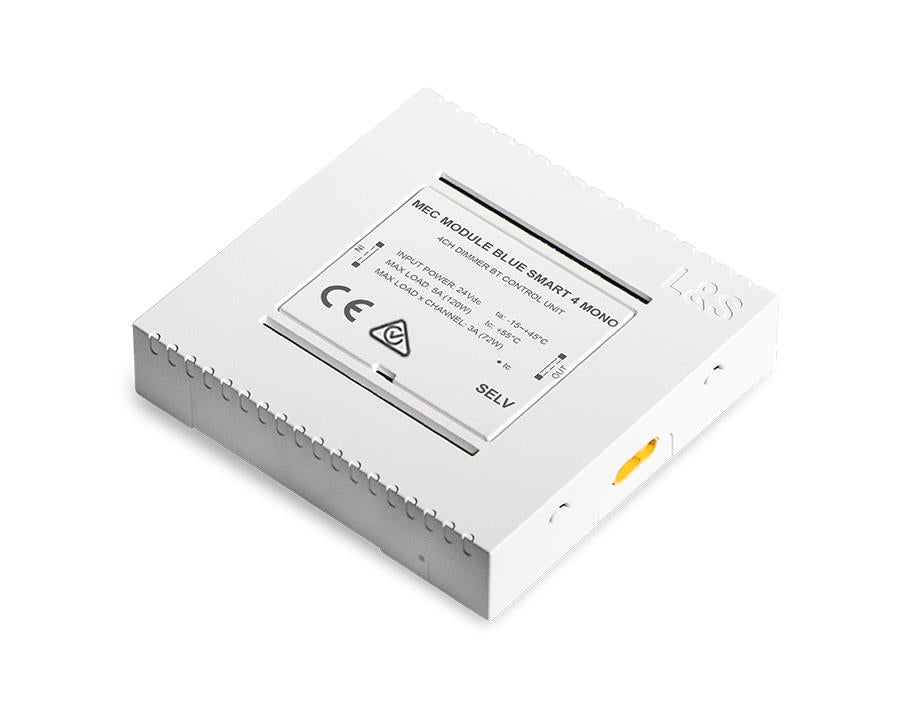

The MEC Bluesmart Distribution Module allows control of up to 4 lights either individually or simultaneously via the Bluesmart app. Designed for 24V lighting, these modules can be linked with other distribution modules maintaining the same voltage. They are compatible with wireless smart controllers, touch switches, and sensors, supporting Monochrome, Emotion, and RGB lighting types.
Features:
Controls 4 lights independently or together
Multiple Bluesmart modules can be linked to one driver

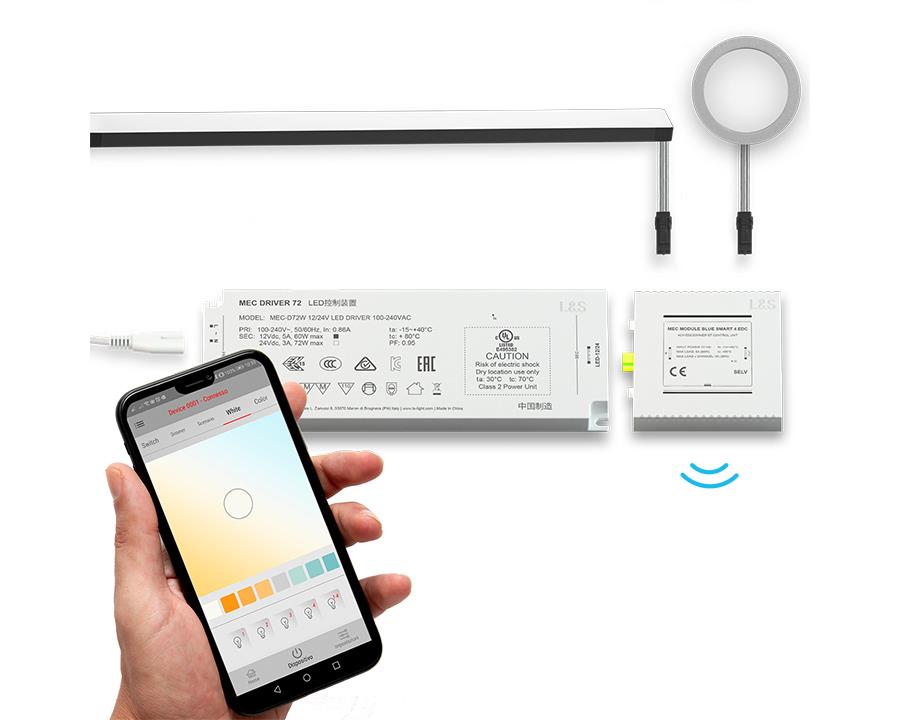

Use the Bluesmart app to switch lights on/off, change colors (White or RGB), and create personalized scenes
Assign light names and organize zones for easy control
Compatible with wireless sensors, remotes, and switches
Plug-and-play design for easy installation
Exceptional flexibility to power more lights from a single driver
Supports coupling with other distribution modules
Designed exclusively for 24V lighting
Available for Monochrome, Emotion, and RGB lights
Specifications:

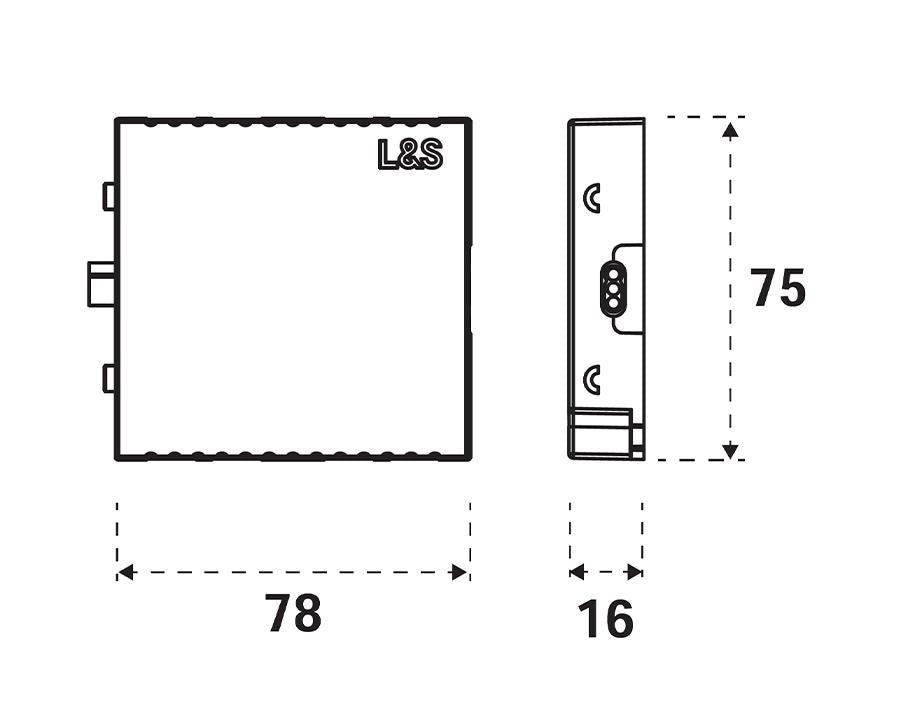

Dimensions: 78mm x 75mm x 16mm
Max wattage per module: 120W
Voltage: 24V
Light type: Monochrome (note: Monochrome module not compatible with Emotion or RGB color modes)
