IW-LASMSTS-FWSDM

L&S MEC System Touch Switch for Wired Sensor Distribution Module

The next evolution in lighting from L&S, exclusive to Imperial Glass and Timber, is the all new MEC driver system.

The MEC system is a new driver that boasts flexibility and ease of use like never before. It is easy to install, control and transform your space.

The heart of the system is the new multi-voltage power source, available in five different levels of wattage and suitable for 12V and 24V applications.

The MEC system makes it much easier to connect the lighting to a multitude of applications.

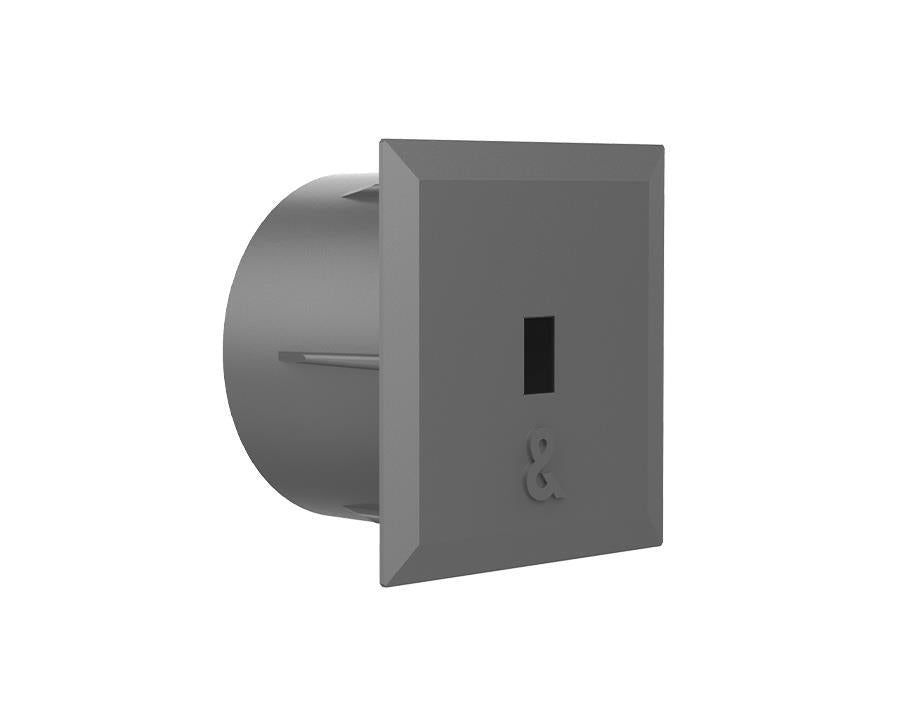

L&S MEC System Touch Switch for Wired Sensor Distribution Module

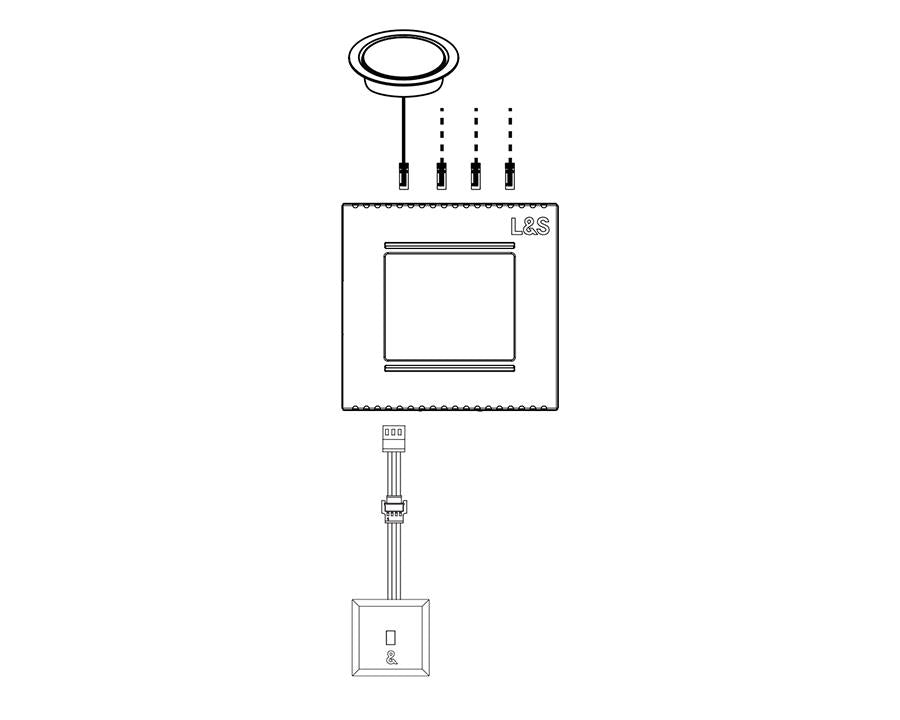

The wired sensor distribution module is a module that allows you to control your lighting via sensors with the L&S IR and PIR Sensors. Alternatively, L&S Touch Switches can be used to turn the lights on and off and also control brightness.
The flexibility of the MEC System allows for multiple wired sensor distribution modules to be used on the one driver!.

Features:
●Touch Switch to be used with the Wired Sensor Distribution Module
● The flexibility of the MEC System allows multiple switches and sensors to operate off the 1 driver!
● Touch Switch can be used to control on/off functions and brightness
● Multiple touch switches can be used to the one wired sensor distribution module
● Can be paired with PIR or IR Sensors depending on your application
● Extension Cords avaliable to extend the distance from the distribution module

Specifications:
● Length: 1200mm
● Optional Extension Available (LSEXTSEN): 3000mm
● Voltage: 12V and 24V
● Short press <1s: on/off function
● Long press >1s: dimming 20% to 100%
● Hole Diameter required: 20mm
