Blum hinges combine ingenuity and inventive power to create functionality that is unique to our systems. Our hinges are designed for reliable performance, enhanced adjustment ease, and an attractive appearance. With 3-dimensional adjustment capabilities, our systems offer versatility for various applications.
Built to withstand 200,000 opening and closing cycles, Blum hinges provide solutions for different materials such as wood, glass, and aluminum frame doors, as well as thin and thick doors. We also offer special solutions for blind corner and angled applications.
The CLIP top BLUMOTION system adapts to the dynamics of each door, ensuring a smooth closing action regardless of size, weight, or closing force. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges to control the closing speed. The hinges use CLIP technology for easy attachment and removal, and for making precise three-dimensional and cam adjustments.
The tried-and-tested CLIP mechanism ensures quick, tool-free assembly, providing reliable and smooth operation with every door equipped with Blum hinges.
Key Features
- Durability: Tested to withstand over 200,000 opening and closing cycles.
- Versatility: Suitable for a wide range of applications including wood, glass, aluminum frame doors, and both thin and thick doors.
- 3-Dimensional Adjustment: Easily adjust for perfect alignment.
- Tool-Free Assembly: Quick assembly with Blum's CLIP technology.
- Smooth, Controlled Closing: BLUMOTION ensures soft and silent closing.
Specifications

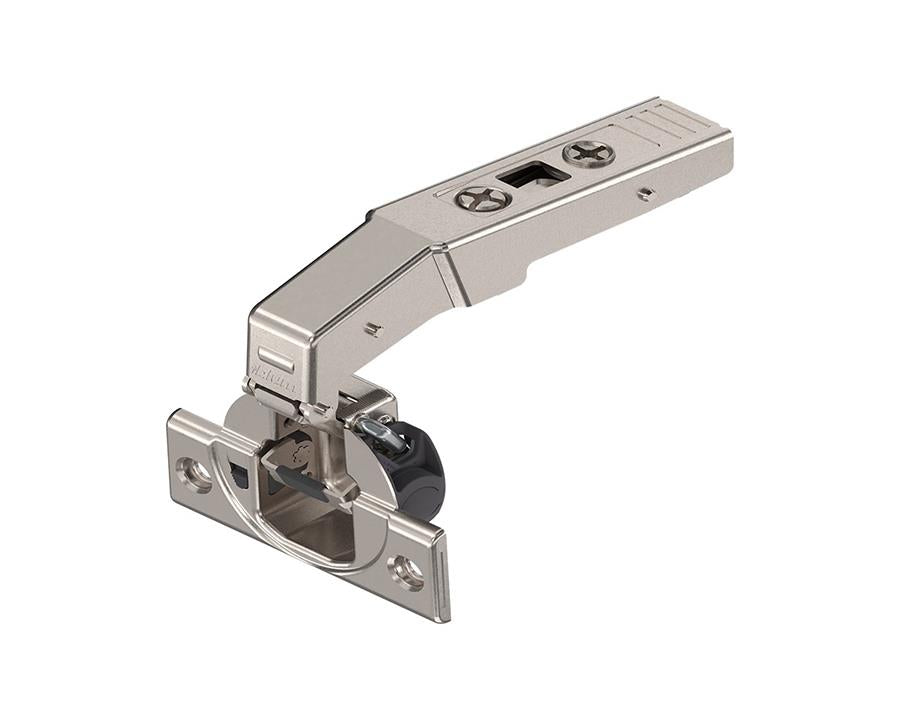

- Application: Blind corner hinge
- Cranking: Overlay application
- Opening Angle: 95°
- Closing Mechanism: Spring-assisted
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 90M2503, 70.1503 (BPC10021), 70T3504 (Boss cover cap)
- Boss Material: Steel, Nickel-plated finish

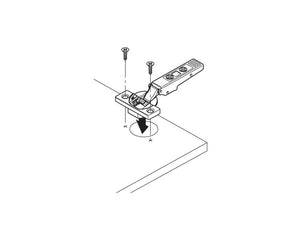

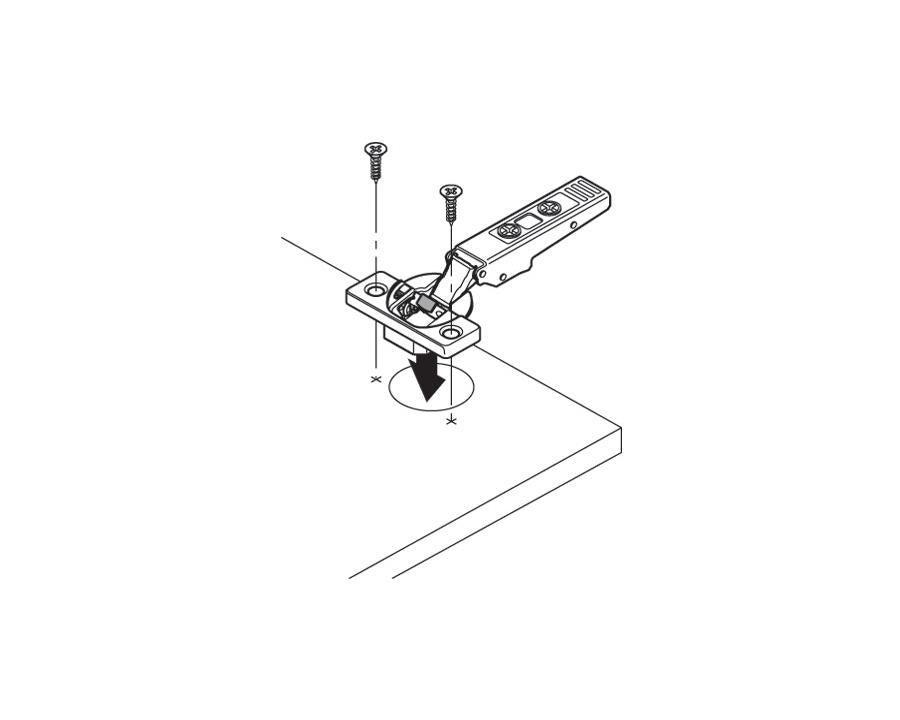

- Boss Assembly: Screw-on
- Flange Dimensions: Width: 57mm, Length: 22mm, Height: 3.2mm
- Diameter of Hinge Boss Drilling: 35mm
- Distance Between Drillings: 45mm
- Eccentric Position of Fixing Holes to Hinge Boss Hole: 9.5mm
- Boss Drilling Depth: 13mm
- Minimum/Maximum Drilling Distance: 3mm/7mm
- Arm Material: Zinc, Nickel-plated finish
- Collision Measurement (Hinge Arm Height): 21mm
- Fixed Dimension/Factory Setting: -8mm

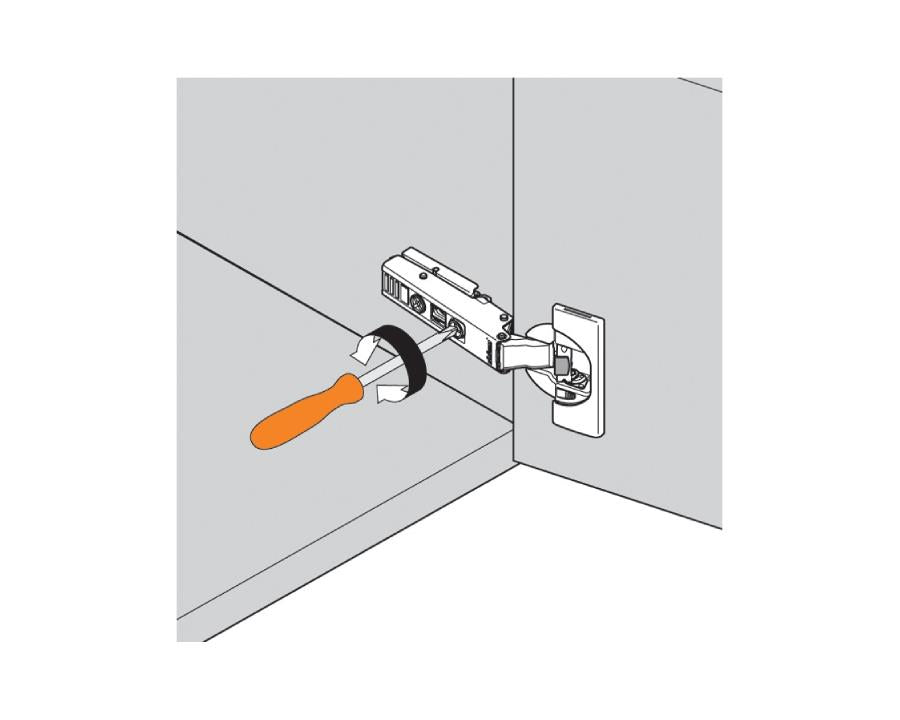

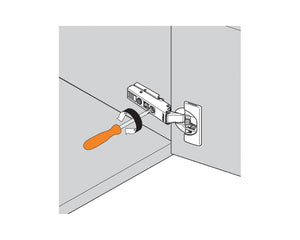

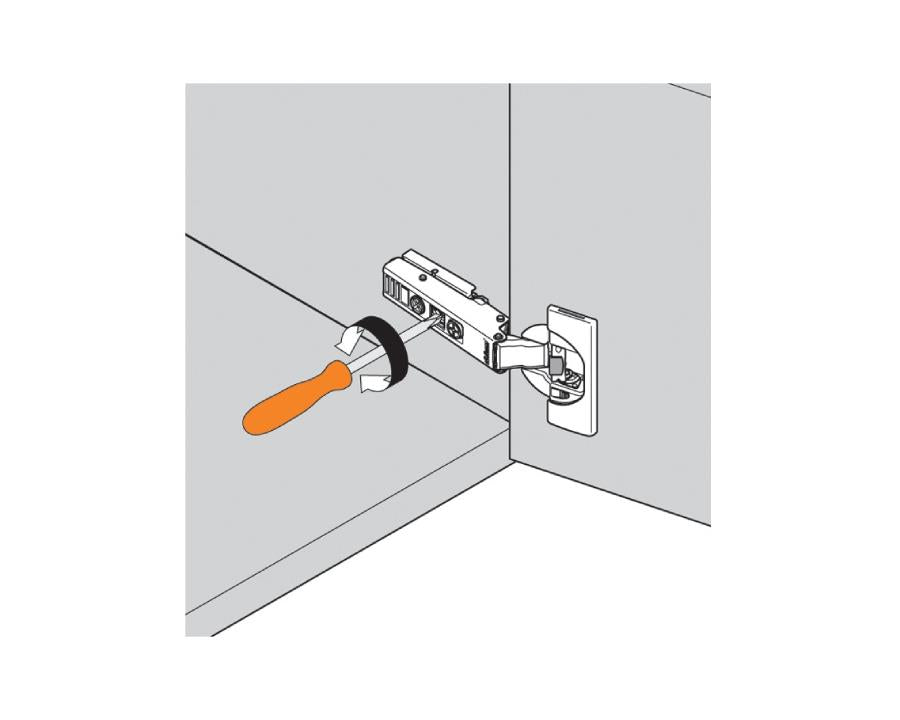

- Side Adjustment: +/-2.5mm (With screw)

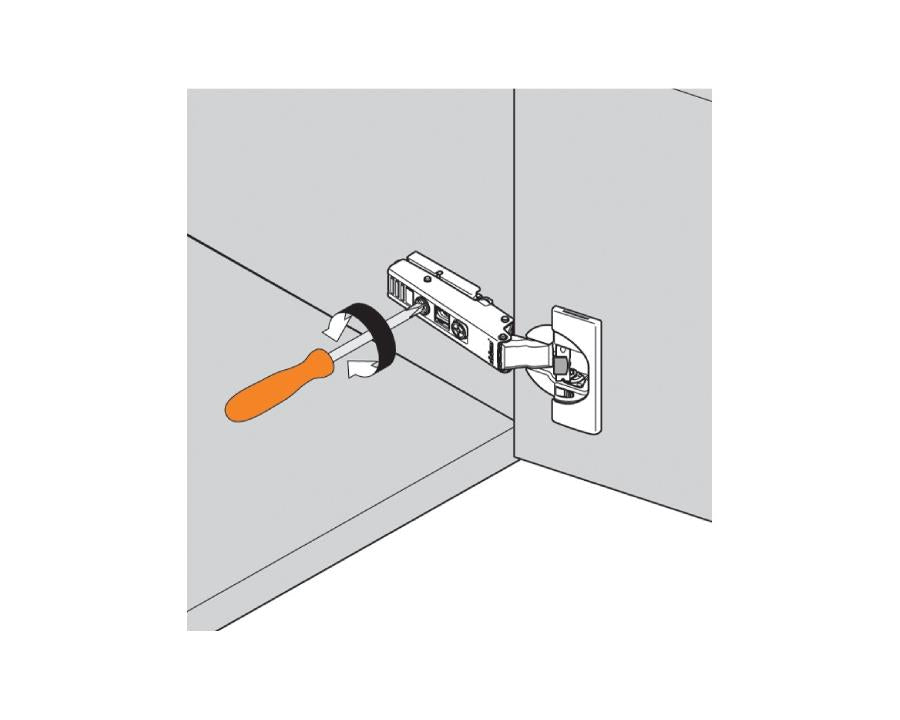

- Depth Adjustment: +/-1mm (Convenient spiral screw)
- Gap: 3mm
- Item Package: 1 piece
- Packaging: Commercial packing (1 piece)
Note: Plates are sold separately.
