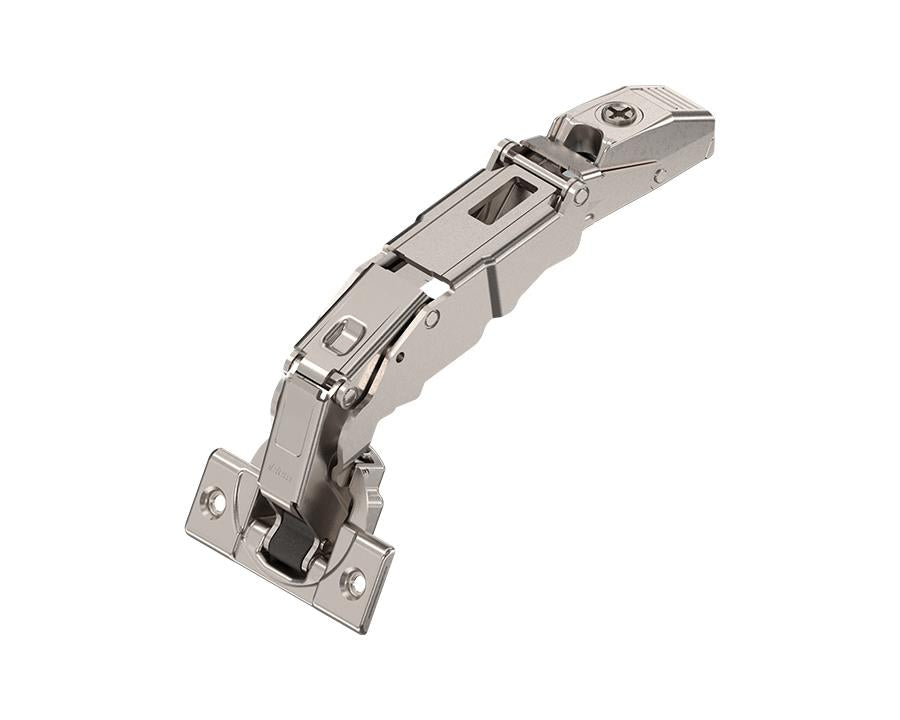

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: Screw-on. Spring 71T7550 ** Not compatible with BLUMOTION attachment ** by W&B

Blum CLIP Top Wide Angle Hinge – 155° Overlay with Spring by Wilson & Bradley

Blum hinges deliver long-lasting performance, precise adjustment, and easy installation. Designed for wood, glass, aluminium frame, and thin or thick doors, this hinge withstands 200,000 open/close cycles and includes 3-way adjustment for a perfect fit.

The CLIP top design allows quick, tool-free door attachment and removal. Compatible with all CLIP mounting plates, it offers smooth side, height, and depth adjustments, including spiral screw depth control and optional cam height adjustment on selected plates.

Key Features

• Tested for 200,000 opening and closing cycles
• 3-dimensional adjustment: side, height, and depth
• Tool-free assembly with Blum CLIP mechanism
• Ideal for a wide range of cabinet door applications

Technical Specifications

• Application: Wide-angle hinge, zero protrusion
• Cranking: Overlay
• Opening Angle: 155°
• Closing Mechanism: Spring
• Cover Cap Types: 70.4503 (BM704503) and 70T7504 (boss cover cap)
• Boss Material/Finish: Steel, nickel plated
• Boss Assembly: Screw-on
• Flange Size (W × L × H): 57 × 22 × 3.2 mm
• Hinge Boss Drilling: 35 mm diameter, 11.7 mm depth
• Fixing Hole Distance: 45 mm
• Offset of Fixing Holes: 9.5 mm
• Drilling Distance Range: 3–8 mm
• Arm Material/Finish: Zinc, nickel plated
• Collision Measurement (Arm Height): 62 mm
• Factory Setting: 11 mm
• Adjustments: Side ±2 mm (screw), Depth +3/–2 mm (spiral screw)
• Gap: 1.5 mm
• Package: 1 piece, industrial packing
