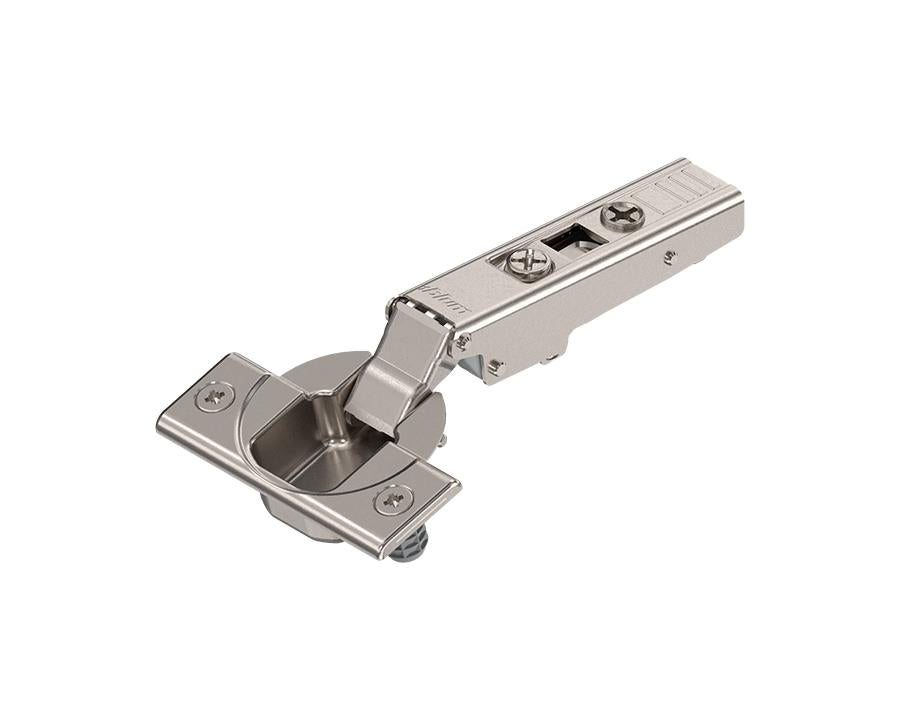

Blum Hinge Systems: Innovation and Precision by Wilson & Bradley
Blum’s hinge systems are the result of ingenious engineering, offering unrivaled functionality, design, and ease of installation. With 3-dimensional adjustment, Blum hinges provide flexibility for precise door alignment, making them the go-to solution for wood, glass, and aluminum frame doors, as well as both thin and thick doors. Built to endure 200,000 opening and closing cycles, these hinges are also ideal for special applications like blind corner and angled doors.
Blum’s CLIP top sprung hinges are compatible with all CLIP mounting plates, offering easy side, height, and depth adjustments through a spiral screw. With several mounting plates featuring cam height adjustment, you can attach and remove doors quickly and without tools. Blum's tried-and-tested CLIP mechanism ensures tool-free, rapid, and simple assembly, guaranteeing reliable and smooth operation with every use.
Key Features:
Tested to withstand over 200,000 cycles of opening and closing
Compatible with all CLIP mounting plates
3-dimensional adjustment for perfect door alignment
Easy, tool-free assembly and removal
Cam height adjustment available with select mounting plates
Technical Specifications:
Application: Standard hinge
Cranking: Overlay application
Opening angle: 110°
Closing mechanism: Unsprung
Hinge variant: With free movement for TIP-ON
Cover cap types: 90M2503, 70.1503, 70T3504 (boss cover cap)
Boss material: Steel
Boss finish: Nickel plated
Boss assembly: Knock-in
Flange dimensions:
Width: 57mm
Length: 22mm
Height: 3.2mm
Hinge boss drilling diameter: 35mm
Fixing holes diameter: 8mm
Distance between drillings: 45mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
Boss drilling depth: 13mm
Minimum drilling distance: 3mm
Maximum drilling distance: 7mm
Arm material: Steel
Arm finish: Nickel plated
Collision measurement (hinge arm height): 21.5mm
Fixed dimension/factory setting: 11mm
Side adjustment: +/- 2mm (with screw)
Depth adjustment: Convenient with spiral screw (+3/-2mm)
