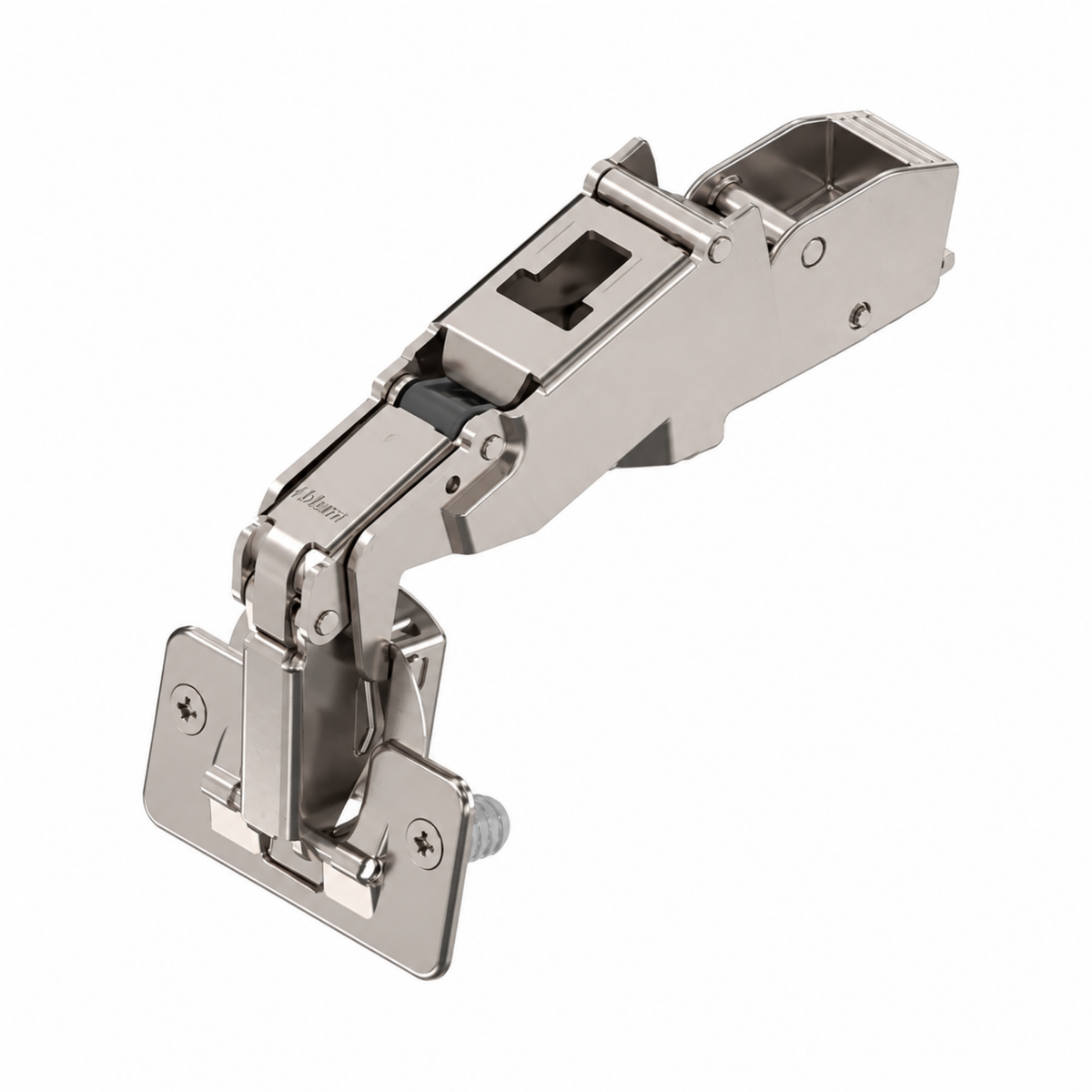

Blum CLIP top Wide Angle Hinge 170 Degree Half Overlay Boss Knock-In BM71668 by W&B

SKU: IWBCWAH170DHO

Price

$21.82

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley

Blum's innovative design and engineering excellence deliver hinges with exceptional functionality. Known for their precision, our hinges provide reliable performance, easy adjustability, and an attractive appearance. With 3-dimensional adjustment capabilities, Blum hinges ensure smooth operation and hassle-free installation.

Built to withstand over 200,000 opening and closing cycles, our hinge solutions cater to a wide range of applications, including wood, glass, and aluminum frame doors. Whether the door is thin or thick, we have solutions to fit every need, including special configurations for corner or angled installations.

Our CLIP top sprung hinges are compatible with all CLIP mounting plates, offering easy side, height, and infinitely adjustable depth through a spiral screw. Additionally, several mounting plates include cam height adjustment for added flexibility. Door fronts can be quickly attached or removed without the need for tools.

The CLIP mechanism is proven and simplifies assembly, making door-to-cabinet installation fast, easy, and tool-free. Doors fitted with Blum hinges offer reliable ease of operation for years.

Key Features:

Endurance-tested to withstand over 200,000 opening and closing cycles
Versatile for all types of doors and materials
3-dimensional adjustment for precise alignment
Quick and easy assembly with no tools required

Specifications:

Application: Wide angle hinge
Cranking: Dual application
Opening angle: 170°
Closing mechanism: Spring-assisted
Cover cap type: 80.6507
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 30.5mm (length) x 2.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Boss drilling depth: 11mm
Arm material: Zinc, nickel-plated
Collision measurement (arm height): 75mm
Factory setting (fixed dimension): 1.5mm
Side adjustment: +/-2mm (with screw)
Depth adjustment: +3/-2mm (with screw)
Gap: 1.5mm
Packaging: Commercial packing (1 piece per package)

Note: All plates are sold separately.
