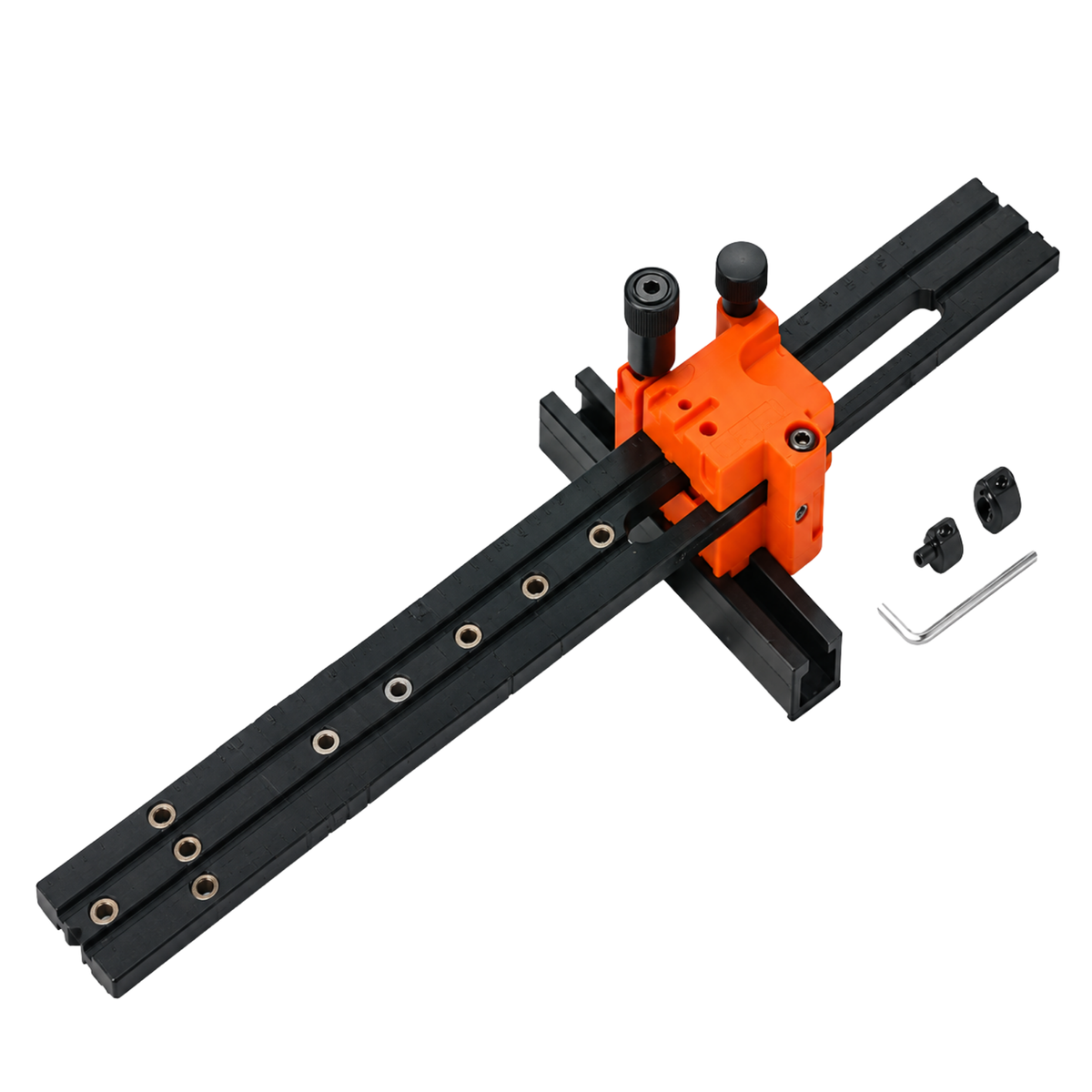

Blum Drilling Template For AVENTOS Overhead Stay, Runners & Plates 65.1051.02 by Wilson & Bradley

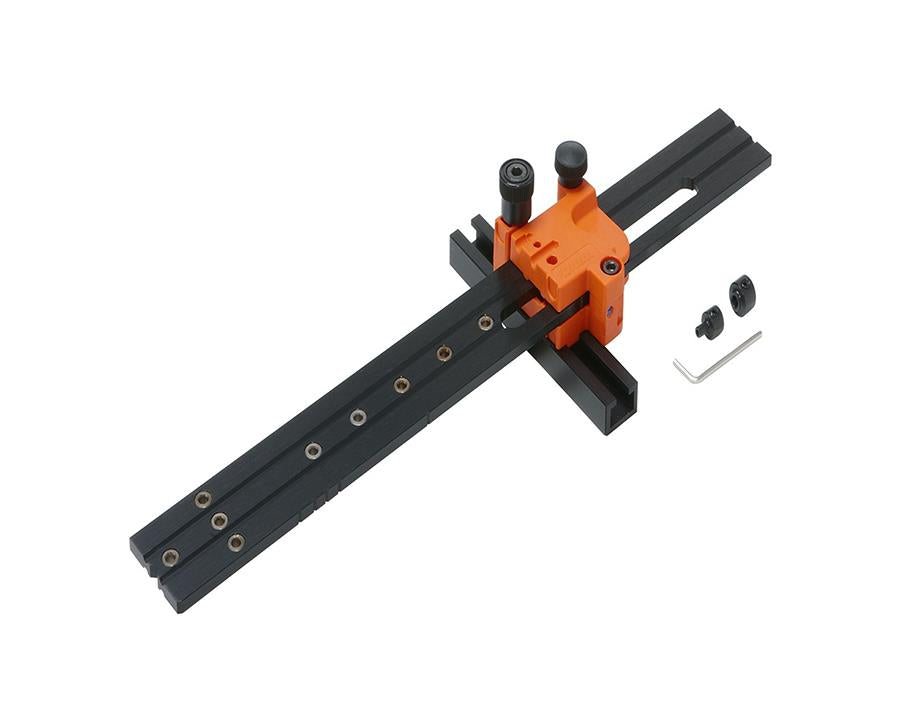

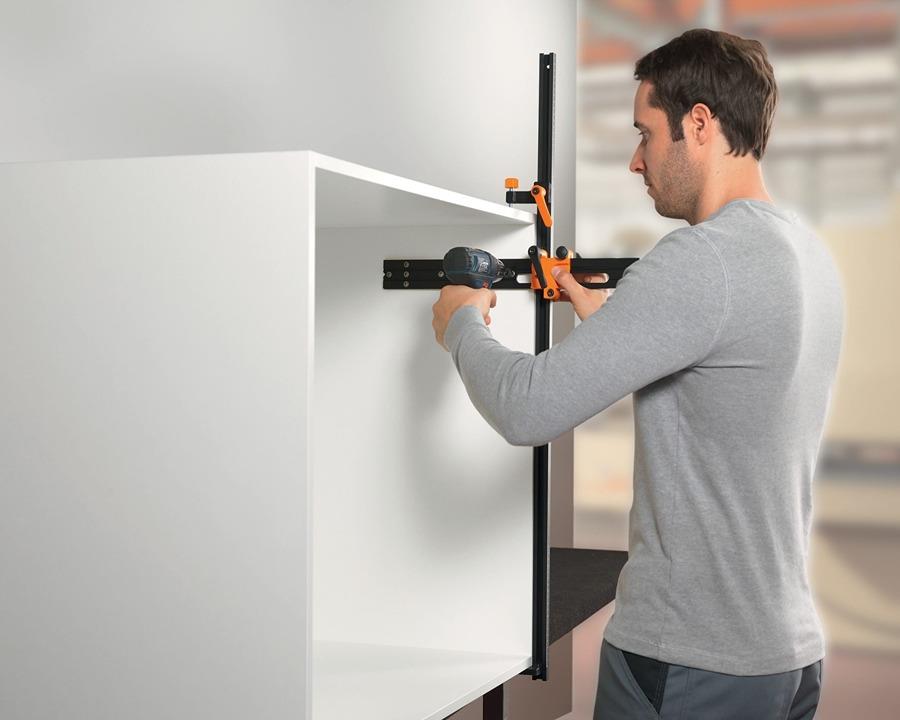

The Blum Drilling Template For AVENTOS Overhead Stay, Runners & Plates 65.1051.02 is a versatile tool designed to help with the precise drilling required for installing AVENTOS lift mechanisms, 955.TIP-ON and 970.BLUMOTION adapter plates, and other Blum hardware. This template simplifies the process by providing accurate pre-drilling measurements, making it ideal for workshop applications.
Key Features:
Wide Compatibility: Designed for a range of Blum systems, including:
AVENTOS Lift Mechanism
955.TIP-ON and 970.BLUMOTION Adapter Plates (both cruciform and horizontal)
Cruciform Mounting Plates
METABOX
MOVENTO Cabinet Profiles
TANDEM and TANDEMBOX
Calibration: Measured in millimetres for precise drilling accuracy.
Pre-Drilling: Dimensions are transferred through pre-drilling, ensuring accuracy in hole placement.
Adjustable: The template is adjustable, providing flexibility for different applications and ensuring versatility in usage.
Material: Constructed from a combination of nylon and aluminium, providing durability while keeping the tool lightweight.
Accessories:
Stop for accurate placement
Allen key for easy adjustments
Area of Application: Workshop-specific, providing a stable and controlled environment for drilling operations.
Specifications:
Type of Template: Drilling Template
Calibration: Millimetres
Processing of:
955.TIP-ON and 970.BLUMOTION Adapter Plates (both cruciform and horizontal)
