How special do you want your LEGRABOX? Choose from three design levels. LEGRABOX pure and LEGRABOX free feature a selection of classic colours with a premium anti-fingerprint stainless steel finish.
Step up to the LEGRABOX special edition, a coordinated collection with a striking carbon black matt finish.
LEGRABOX combines sophisticated design, innovative technology, and effortless operation. Its greatest appeal is the wide design flexibility offered by the box system.

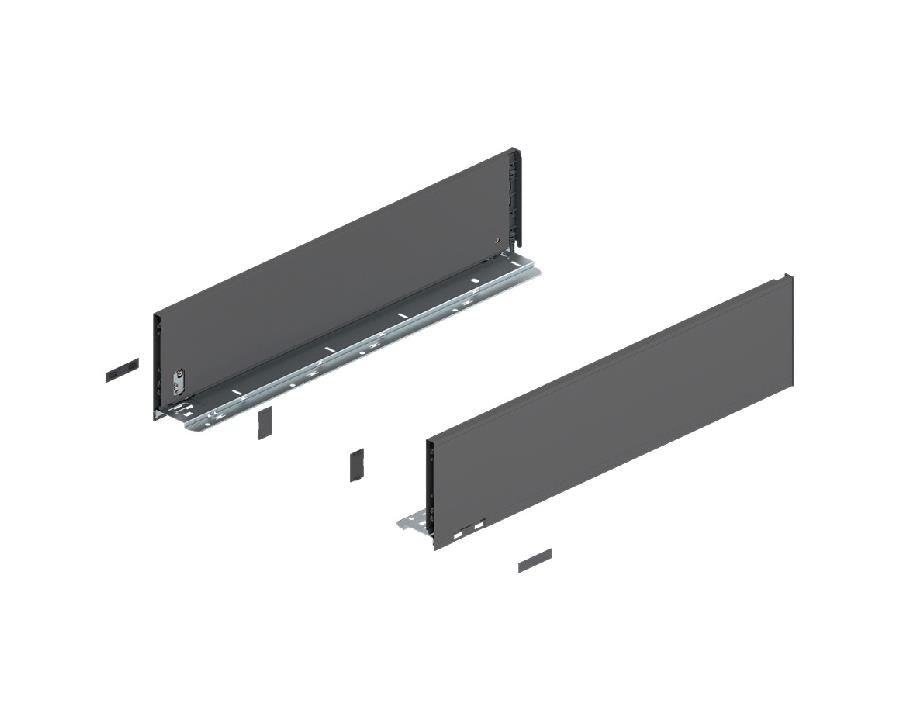

Features: ● Modern, slim side panel design ● Finished in distinctive Orion grey coating ● Supports a dynamic load of 40 kg ● Fully compatible with all LEGRABOX components ● Backed by Blum’s lifetime warranty
Specifications: ● Box type: LEGRABOX drawer side ● Material: Steel ● Drawer side height: C (177 mm) ● Design option: Pure – plain style ● Nominal length: 500 mm ● Front connection: Front fixing bracket ● Rear connection: Clip-on (fits steel or wooden back fixing brackets) ● Internal drawer length: 489.8 mm ● Installation depth (inner carcass to outer base edge): 17 mm ● Height adjustment: Yes ● Base to drawer side fixing: Prong connection or screw-on ● Bottom thickness: 16 mm ● Back fixing bracket finish: Orion grey matt ● Stay-open stop: Not included ● Minimum internal cabinet depth: 503 mm ● Additional components: ZA7.070 external cover caps, ZA7.570 internal cover caps ● Packaging: Right and left pair, commercial packing ● Drawer type: Full extension ● Dynamic load capacity: 40 kg
