Blum drilling and insertion machines are designed for the assembly of Blum products. They enable precision drilling and insertion of fittings. The wide range of drilling and insertion machines provides the right solution for any application. Quick setup and easy operation ensure efficient assembly of all Blum fittings.

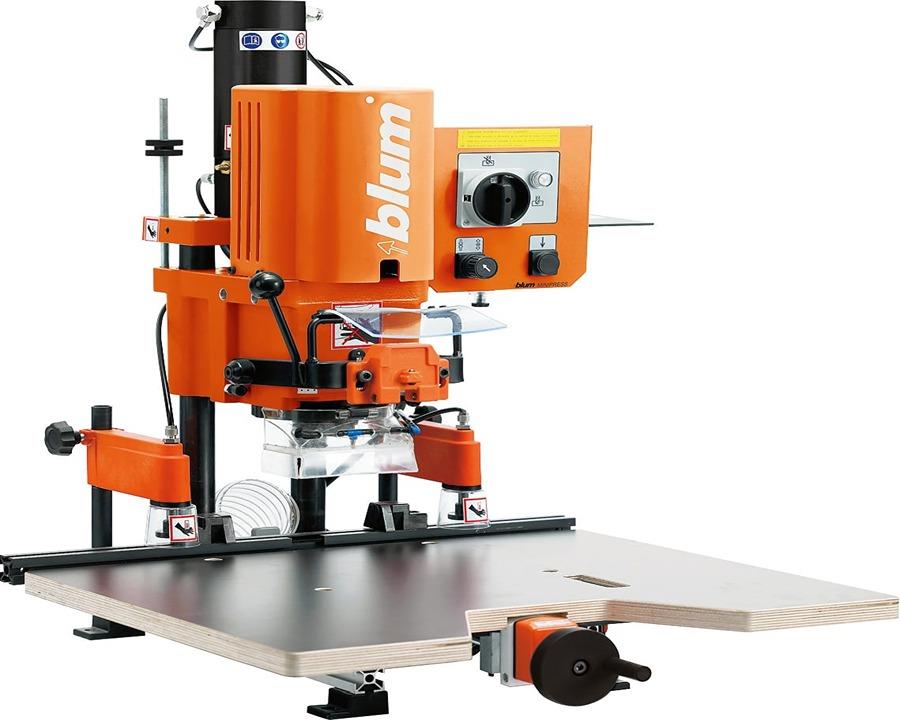

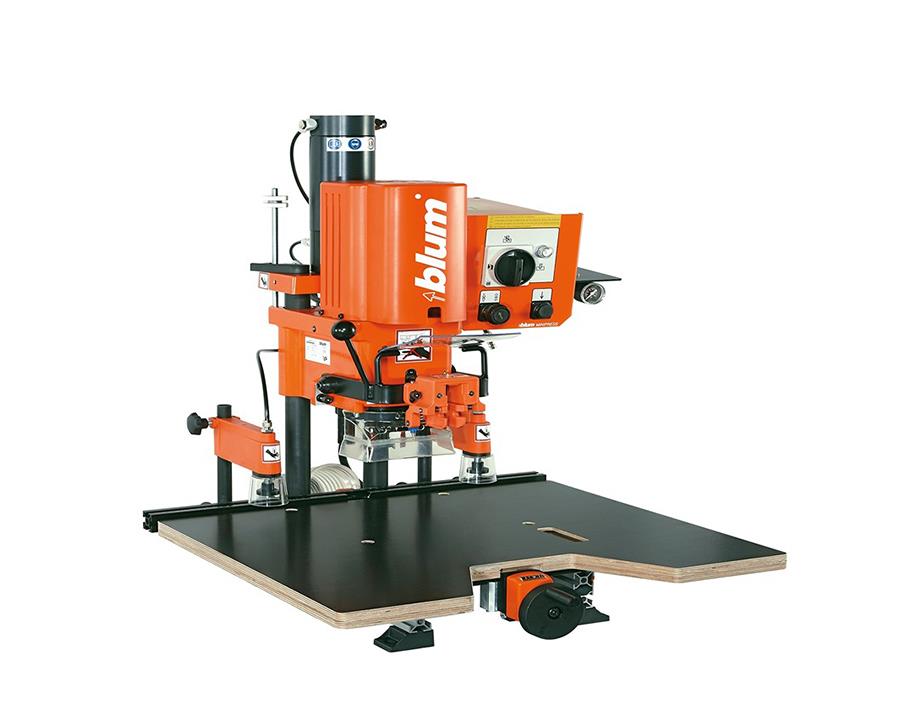

MINIPRESS P is the specialist for front assemblies. Once it’s set, it carries out routine work with precision and efficiency. A pneumatic feed for drilling and insertion as well as a spindle for the drilling distance setting makes working with MINIPRESS P safe and precise.
With the multi-swivel gearbox, various drilling patterns for furniture fittings can be set quickly, tool-free, and precisely. MINIPRESS P is equally efficient when it comes to inserting Blum fittings, the operation is both simple and precise.
With a lifetime guarantee on all Blum products, MINIPRESS P is the must have drilling and assembly device for your workshop.
Features ● Vertical drilling and insertion of Blum fittings ● Drilling distance settings using spindle ● Pneumatic feed ● Can be retrofitted with EASYSTICK as an option ● Optional automatically movable stops in the X axis with EASYSTICK ● 9-spindle drilling head for efficient line drilling within the 32 mm tier system ● 8-spindle drilling head for the assembly of AVENTOS lift mechanisms, box front fixings and cabinet profiles. ● Includes: ● MINIPRESS P Machine ● Drilling depth stop ● Distance template ● Cover for drill chuck ● Replacement coupling - MZK.2009 ● Toolkit ● Basic ruler ● Worktable ● Position indicator ● Hold
Specifications ● Type of machine: MINIPRESS P ● Type of device: Table device ● Assembly device variation: AU ● Assembly device variation: Without 16mm adjustment ● Control and drive: Electro-pneumatic ● Drilling and processing direction: Vertical drilling ● Processing possibility: Drilling and component insertion ● Drilling head assembly: Screw assembly ● Type of connection: 1-phase ● Nominal voltage: 1x230V ● Operating power/frequency: 1x230V, 50Hz ● Nominal current: 8.5 ● Motor performance: 1,1 ● Frequency: 50 Hz ● Safety certificate: CE declaration of conformity ● Model: 05 ● Length of base ruler: 600mm ● Dimension breakdown: Calibration from zero position: 11 13/16 Inch left, 11 13/16 Inch right ● Dimension breakdown: Calibration from zero position: 300 mm left, 300 mm right ● Connection pressure: 5bar to 7bar ● Air consumption/cycle: 1.5 litres per cycle ● Type of chip removal: Chip blow-off and chip exhaust ● Maximum wood thickness: 45mm (drilling only) ● X-coordinate (parallel ruler): 300mm to left (MINUS),0mm (CENTREPOINT),300mm to right (PLUS) ● Y-coordinate (right angle against ruler): Vertical, from0 to 70mm backwards ● Z-coordinate: 45mm downwards (MINUS) ● Processing of: Front fixings ● Processing of: Hinges ● Processing of: Mounting plates ● Processing of: Connector ● Drilling for: System drilling ● Net weight of assembly device: 42mm ● Mark of conformity on serial tag: CE ● Dimensions (height/width/depth/weight): 710mm, 610mm, 760mm, 57.391 kgs
