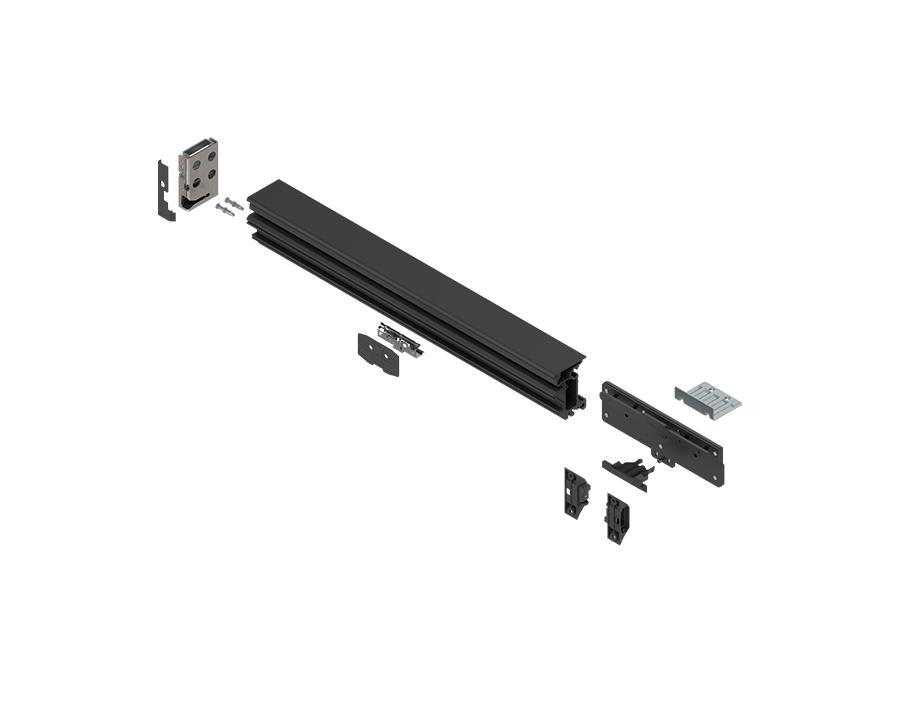

Blum REVEGO duo Assembly for one single door and double door combined. Internal width within the application single door: 800mm. Right. 802M8003.R1 by W&B
Engineered for use with the REVEGO duo pocket door system, this 742 mm black aluminium assembly set is designed for reliable performance and easy integration.
Product Details:
Type: Assembly Set
Application: For REVEGO duo
Length: 742 mm
Material: Aluminium
Colour / Finish: Black
Fixing Method: Slide-in and screw-on installation
Package Includes: Set
Important Information:
Requires Blum System Screw 6 x 14.5 mm (6611450HG) – sold separately
Recommended: Use with CBR04DS Door Straightener for all REVEGO uno and duo systems – sold separately
Internal cabinet dimensions (W x H x D) define the maximum build space
For combined door setups, always design the widest panel first
Certified durability of 40,000 opening and closing cycles
Manual operating force less than 70 N according to durability testing
Drilling patterns, cut-to-size dimensions, and detailed parts lists available via the Blum Product Configurator
Assembly Requirements:
Machining wooden parts requires a CNC machine or MINIPRESS top with EASYSTICK from Blum. Both horizontal drillings and a track cut-out are necessary. Blum recommends using the drilling template for REVEGO pocket connectors for accurate horizontal drillings.
