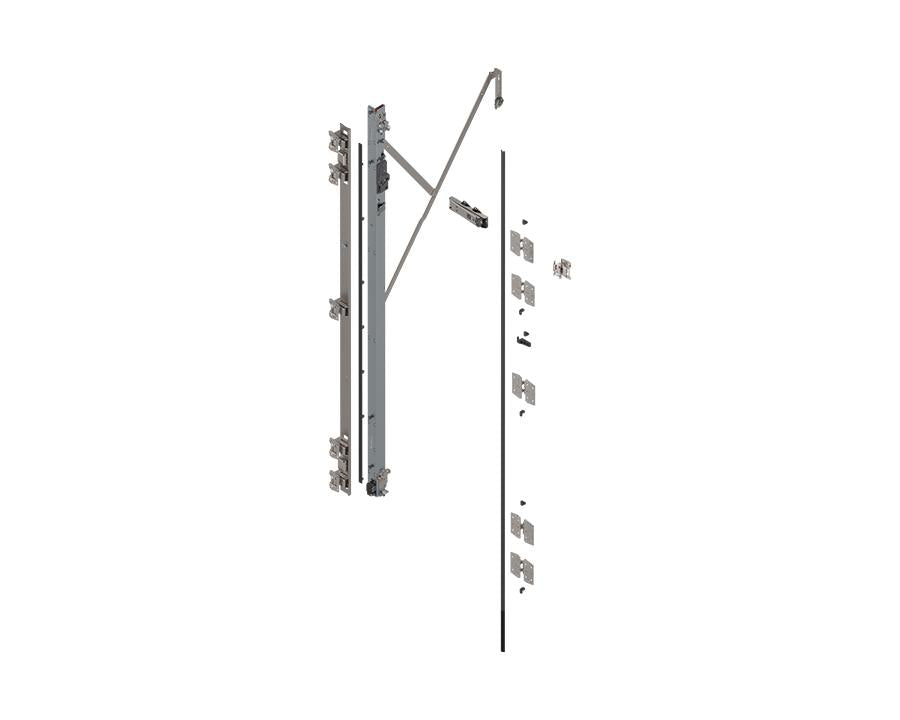

Hinge Bracket by Wilson and Bradley – for REVEGO duo
Type: Hinge Bracket Application: For REVEGO duo Length: 1650 mm Pocket Height Compatibility: 1807–1956 mm Material: Steel Colour / Finish: Zinc plated Fixing Method: Tool-free Package Includes: Set
Required Accessories (sold separately):
Blum System Screw – Countersunk Head 6 x 14.5 mm (6611450HG) is required
Door Straightener CBR04DS – Recommended for use with all REVEGO uno & duo systems
Important Notes:
Internal dimensions (W x H x D) define max internal construction space
Always design the widest front first in combined applications
Tested for durability up to 40,000 open/close cycles
Manual operating force remains under 70 N per testing standards
Drilling guides, cut sizes, and part lists available via Blum Product Configurator
Assembly Instructions:
Use a CNC machine or MINIPRESS top with EASYSTICK from Blum for machining wooden parts
Requires horizontal drillings and a track cut-out
Blum recommends using the REVEGO pocket connector drilling template for accurate horizontal drillings
