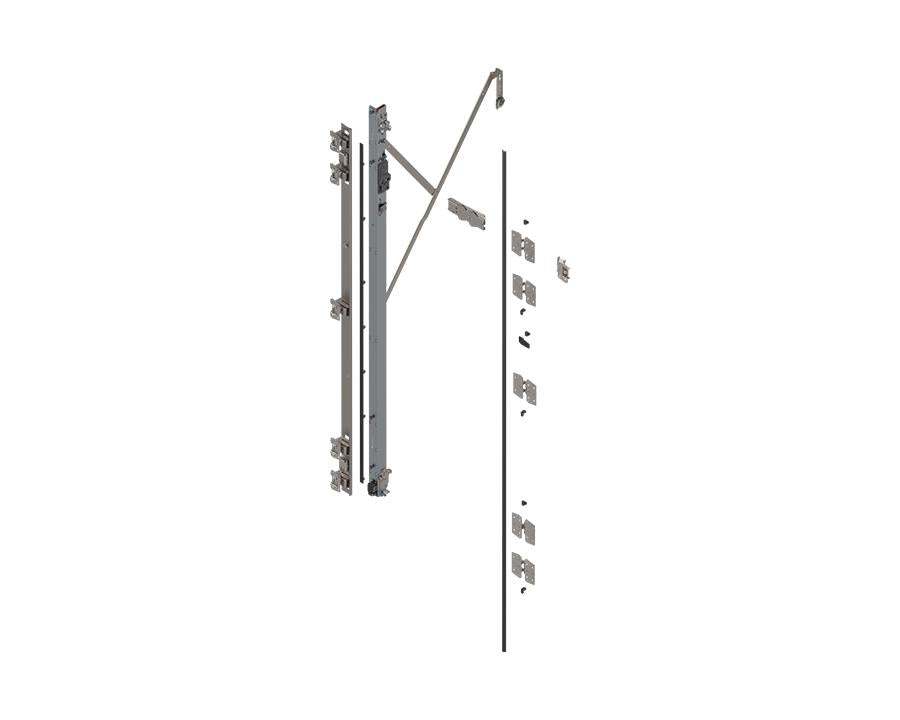

Blum Revego Duo Hinge Bracket Set with TIP-ON for pocket height 2107 – 2256mm. Left. 802T3000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO duo

Type: Hinge Bracket
Application: For REVEGO duo pocket systems
Length: 1950 mm
Pocket Height Range: 2107–2256 mm
Material: Steel
Colour / Finish: Zinc plated
Fixing Method: Tool-free installation
Package Includes: Set

Required Accessories (sold separately):

• Blum System Screw (Countersunk Head 6 x 14.5 mm, 6611450HG) – required
• Door Straightener CBR04DS – recommended for all REVEGO uno & duo systems

Key Notes:

• Internal dimensions (W x H x D) define the usable internal construction space
• Always design the widest front first for multi-panel setups
• Certified durability for 40,000 open/close cycles
• Manual operating force remains below 70 N per durability tests
• Cut-to-size guides, drilling patterns, and full part lists available via the Blum Product Configurator

Assembly Requirements:

• CNC machine or Blum MINIPRESS top with EASYSTICK required for processing wooden components
• Both horizontal drillings and a track cut-out are necessary
• Blum recommends using the REVEGO pocket connector drilling template for accurate horizontal drillings
