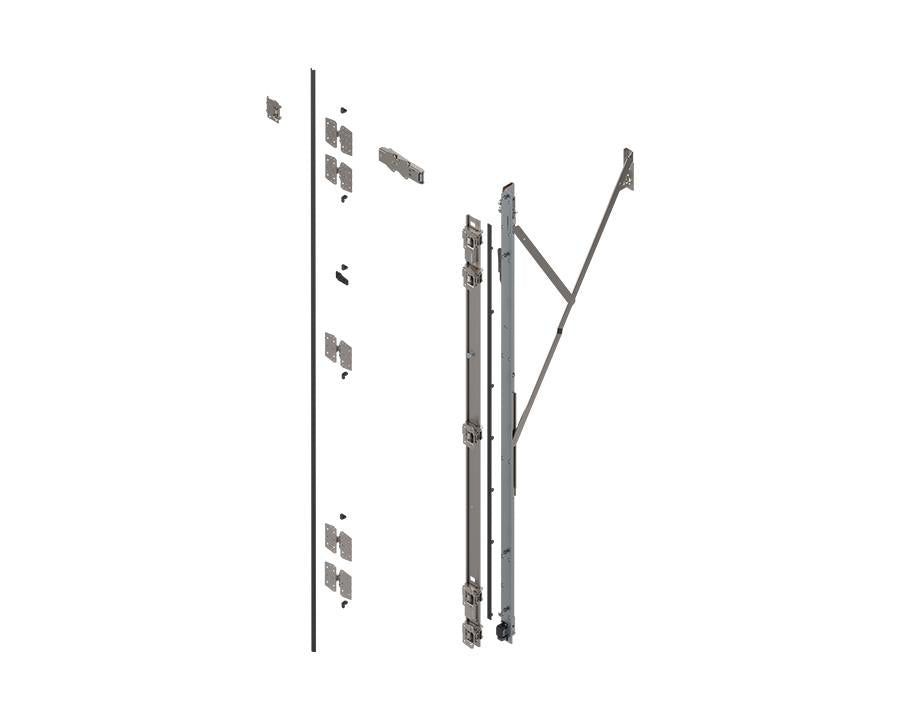

Hinge Bracket by Wilson and Bradley – for REVEGO duo
Type: Hinge Bracket Application: For REVEGO duo pocket systems Length: 1800 mm Pocket Height Range: 2107–2256 mm Material: Steel Colour / Finish: Zinc plated Fixing Method: Tool-free Package Contents: Set
Required Accessories (sold separately):
Blum System Screw Countersunk Head 6 x 14.5 mm (6611450HG) – must be used
Door Straightener CBR04DS – recommended for all REVEGO uno & duo systems
Notes:
Internal dimensions (W x H x D) define the max internal construction space
Design the widest front first when combining multiple fronts
Tested durability for 40,000 open/close cycles
Manual operating force under 70 N per durability tests
Drilling patterns, cut-to-size dimensions, and parts list available via Blum Product Configurator
Assembly:
Requires CNC machine or MINIPRESS top with EASYSTICK for machining wood parts
Horizontal drillings and track cut-out are needed
Blum recommends using the REVEGO pocket connector drilling template for horizontal drillings
