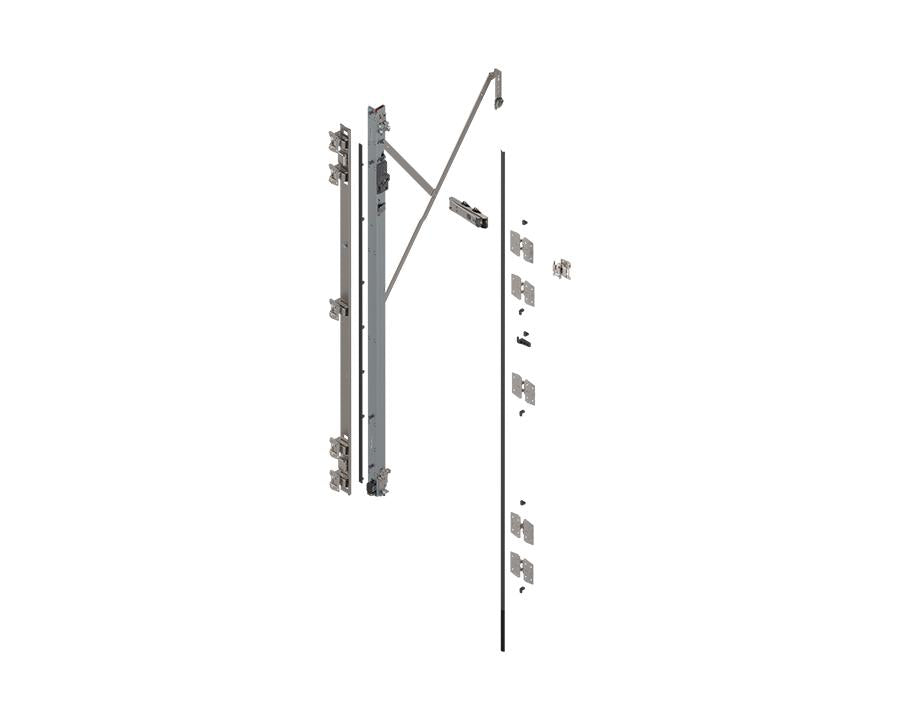

Blum Revego Duo Hinge Bracket Set with TIP-ON for pocket height 2557 – 2706mm. Left. 802T6000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO duo

Type: Hinge Bracket
Application: For REVEGO duo pocket systems
Length: 2400 mm
Pocket Height Range: 2557–2706 mm
Material: Steel
Colour / Finish: Zinc plated
Fixing Method: Tool-free
Package Contents: Set

Required Accessories (sold separately):

• Blum System Screw Countersunk Head 6 x 14.5 mm (6611450HG) – must be used
• Door Straightener CBR04DS – recommended for all REVEGO uno & duo systems

Notes:

• Internal dimensions (width x height x depth) determine the available internal space
• Start planning with the widest front when combining multiple door fronts
• Proven durability with 40,000 open and close cycles
• Manual operating force remains under 70 N (as per test results)
• Cutting guides, drilling layouts, and part lists are available via the Blum Product Configurator

Assembly:

• Requires CNC machine or Blum MINIPRESS top with EASYSTICK for processing wooden components
• Track cut-out and horizontal drillings are necessary
• Use Blum’s drilling template for REVEGO pocket connectors to ensure accurate horizontal drilling
