["Blum","Blum Pocket Systems - Revego","Blum REVEGO duo","Duo Pocket Profile Set"]

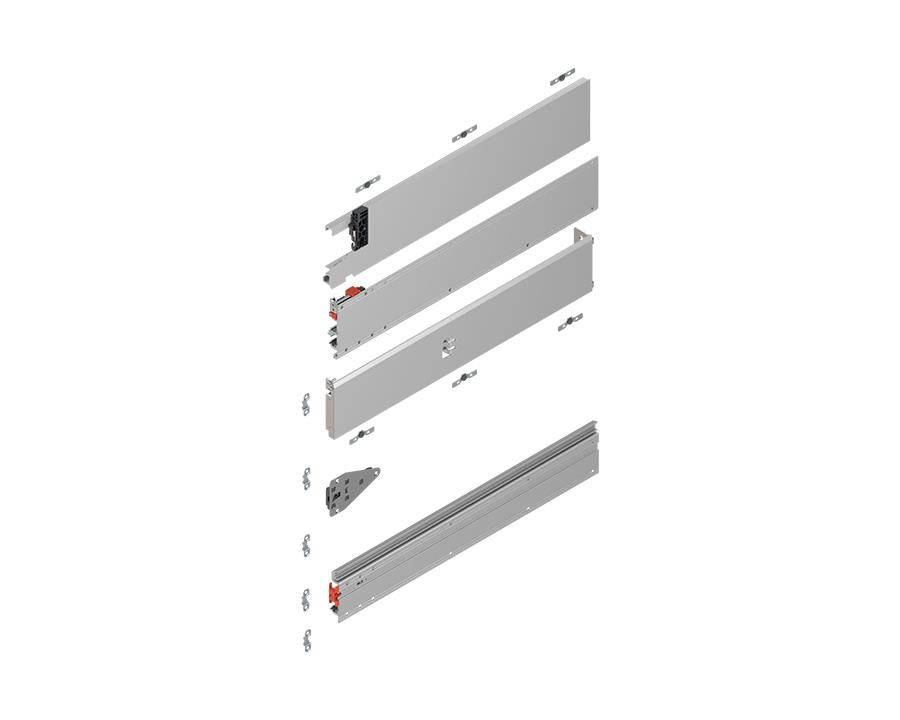

Type: Pocket Profile Application: for REVEGO duo Length: 493 mm Nominal Length: 450 mm Material: aluminium Colour / finish: E6/EV1 natural Fixing method: for system screws Item package: set
Blum System Screw, Counter Sunk Head 6 x 14.5mm 6611450HG must be used and can be purchased separately
Door straightener CBR04DS is recommended to be used in conjunction with every REVEGO uno & duo pocket system and can be purchased separately
Note: The internal dimensions in the application (width x height x depth) determine the maximum space to be planned for the internal construction Design the widest front first for combined applications Certified durability of 40,000 opening and closing cycles The manual operating force is less than 70 N according to the durability test Drilling patterns, cut-to-size dimensions and detailed parts lists can be found in the Blum Product Configurator
Assembly: You will need a CNC machine or MINIPRESS top with EASYSTICK from Blum to machine the wooden parts. Please note that both horizontal drillings and a track cut-out will be needed Blum recommend using the drilling template for REVEGO pocket connectors for the horizontal drillings
