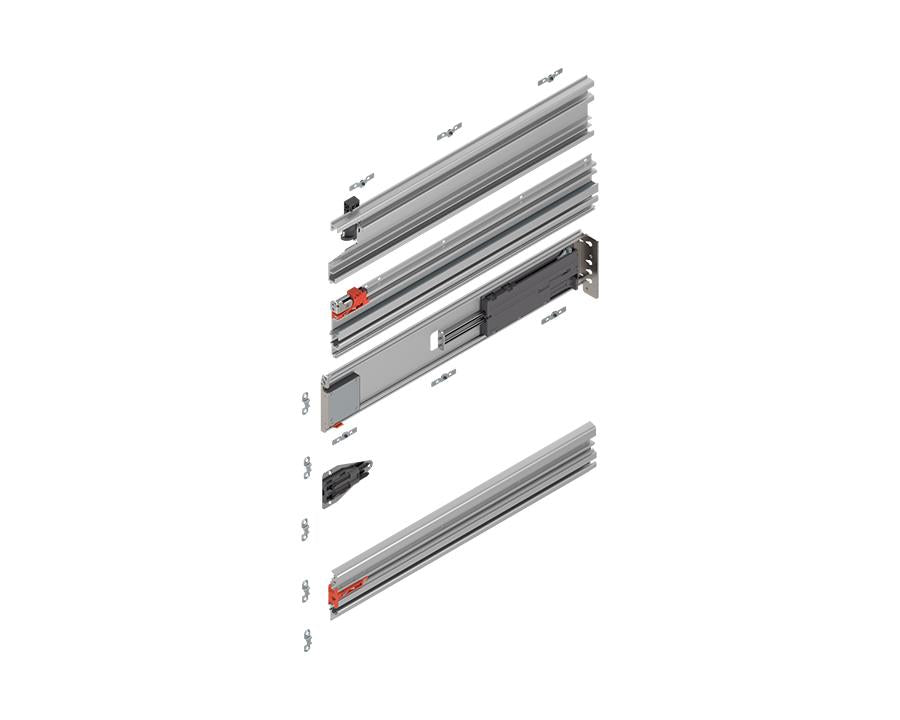

Blum REVEGO duo Pocket Profile Set. Nominal Length: 450mm. Right. 802P450D.R2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO duo

• Type: Pocket Profile
• Application: Compatible with REVEGO duo
• Length: 493 mm
• Nominal Length: 450 mm
• Material: Aluminium
• Colour / Finish: E6/EV1 natural
• Fixing Method: For system screws
• Item package: Set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is recommended for all REVEGO uno & duo pocket systems

Important Information:

• Internal dimensions (width x height x depth) determine the maximum space for internal construction
• Design the widest front first when combining multiple fronts
• Certified durability of 40,000 opening and closing cycles
• Manual operating force less than 70 N according to durability tests
• Drilling patterns, cut-to-size dimensions, and detailed parts lists are available via the Blum Product Configurator

Installation Notes:

• Wooden parts require machining with a CNC or Blum MINIPRESS top with EASYSTICK
• Both horizontal drillings and a track cut-out are necessary
• Blum recommends using their drilling template for REVEGO pocket connector horizontal drillings
