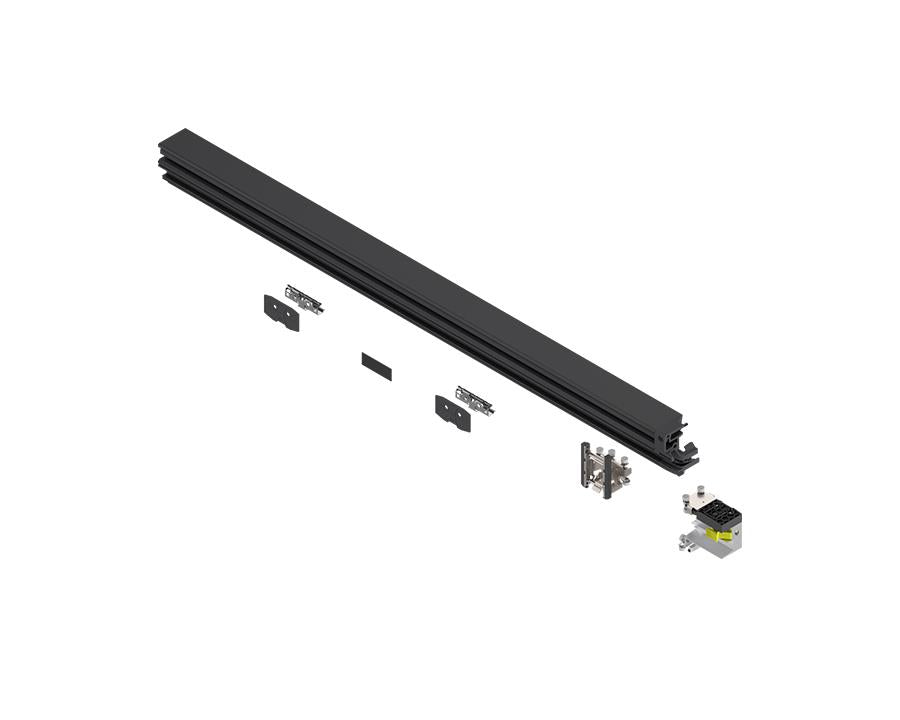

Type: Track Application: for REVEGO duo Length: 1257 mm Material: Aluminium Colour / Finish: Black Fixing Method: For sliding in and screwing on Item Package: set
Required Accessories (sold separately):
Blum System Screw Countersunk Head 6 x 14.5 mm (6611450HG) – must be used
Door Straightener CBR04DS – recommended for all REVEGO uno & duo systems
Notes:
The internal dimensions in the application (width x height x depth) determine the maximum space to be planned for the internal construction
Design the widest front first for combined applications
Certified durability of 40,000 opening and closing cycles
Manual operating force is less than 70 N according to the durability test
Drilling patterns, cut-to-size dimensions, and detailed parts lists can be found in the Blum Product Configurator
Assembly:
You will need a CNC machine or MINIPRESS top with EASYSTICK from Blum to machine the wooden parts
Both horizontal drillings and a track cut-out will be needed
Blum recommends using the drilling template for REVEGO pocket connectors for the horizontal drillings
