SKU:IWBRUHBS1956R2

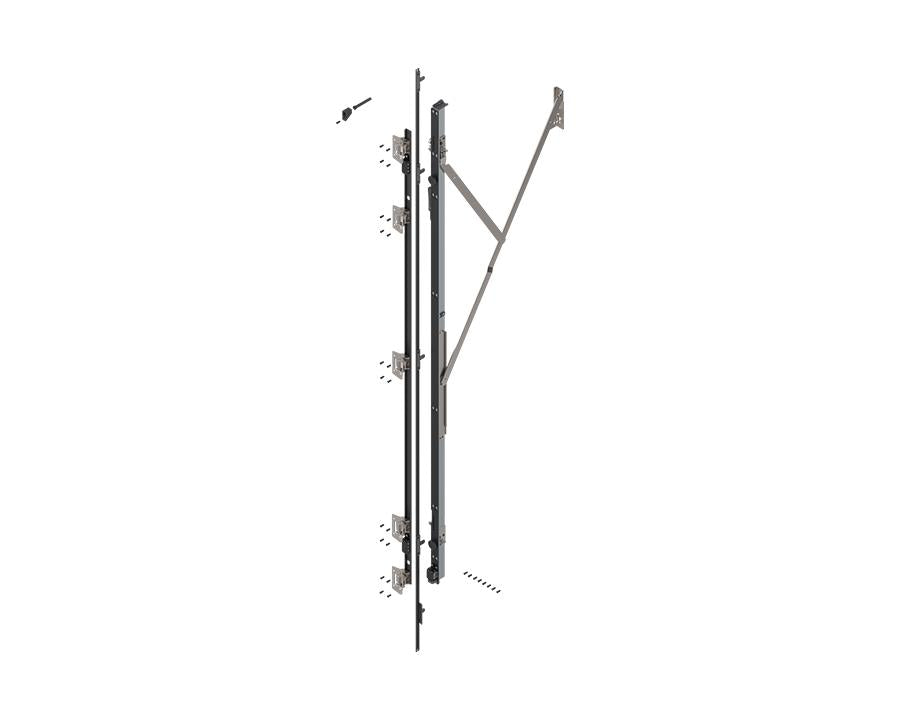

Blum Revego Uno Hinge Bracket Set with TIP-ON for Pocket Height 1807 – 1956mm. Right. 801T1000.R2 by W&B

Blum Revego Uno Hinge Bracket Set with TIP-ON for Pocket Height 1807 – 1956mm. Right. 801T1000.R2 by W&B

Regular price $2,205.08 AUD
Regular price Sale price $2,205.08 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Hinge Bracket by Wilson and Bradley – For REVEGO uno

  • Type: Hinge bracket
  • Application: Suitable for REVEGO uno system
  • Length: 1757 mm
  • Pocket height: Adjustable between 1807 mm and 1956 mm
  • Material: Steel with zinc-plated finish
  • Fixing method: Tool-free installation
  • Package: Complete set

Required Accessories (sold separately):

  • Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
  • Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Key Information:

  • Internal dimensions (width x height x depth) define the max space available for construction
  • Always start design with the widest front for multi-front setups
  • Tested for 40,000 open and close cycles
  • Manual force required is below 70 N per durability testing
  • Detailed drilling plans, cut-to-size info, and parts lists accessible via Blum Product Configurator

Assembly Instructions:

  • Use CNC or Blum MINIPRESS top with EASYSTICK to machine wooden parts
  • Horizontal drillings and track cut-outs are required
  • Blum recommends their drilling template for accurate placement of REVEGO pocket connectors
