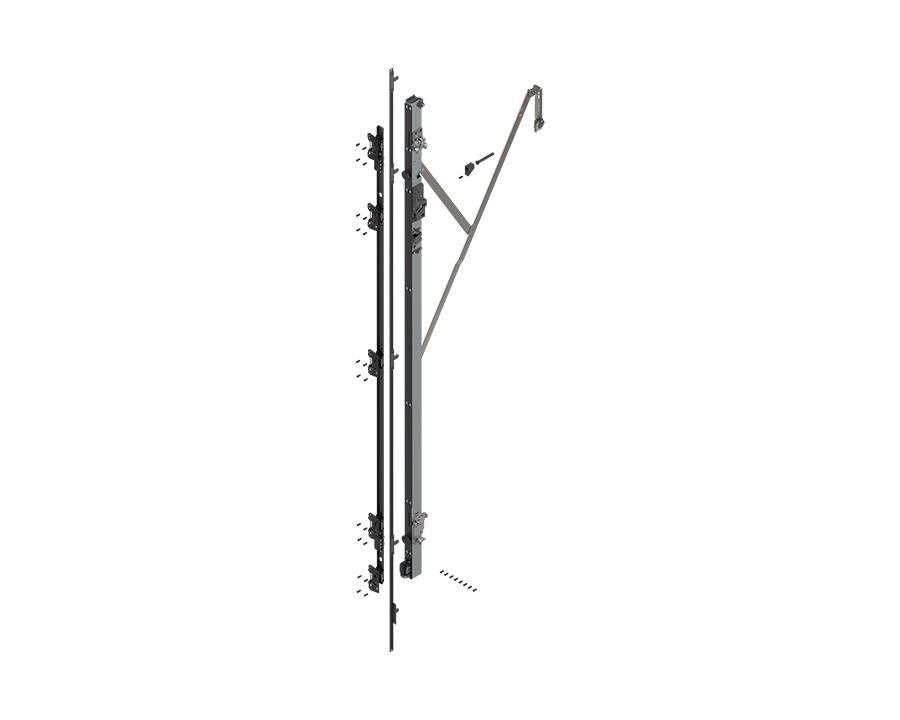

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 1957 – 2106mm. Left. 801T2000.L2 by W&B

Hinge Bracket by Wilson and Bradley – For REVEGO uno

• Type: Hinge bracket
• Application: Designed for REVEGO uno system
• Length: 1907 mm
• Pocket height: Adjustable from 1957 mm to 2106 mm
• Material: Steel with zinc-plated finish
• Fixing method: Tool-free
• Package: Supplied as a set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Important Notes:

• Internal dimensions (width x height x depth) dictate maximum space for internal construction
• Start with the widest front in combined applications
• Tested and certified for 40,000 opening and closing cycles
• Manual operating force under 70 N per durability testing
• Drilling patterns, cut-to-size details, and parts lists available in Blum Product Configurator

Assembly Guidelines:

• CNC machine or Blum MINIPRESS top with EASYSTICK required for machining wooden parts
• Both horizontal drillings and track cut-outs are necessary
• Blum recommends using their drilling template for precise placement of REVEGO pocket connectors
