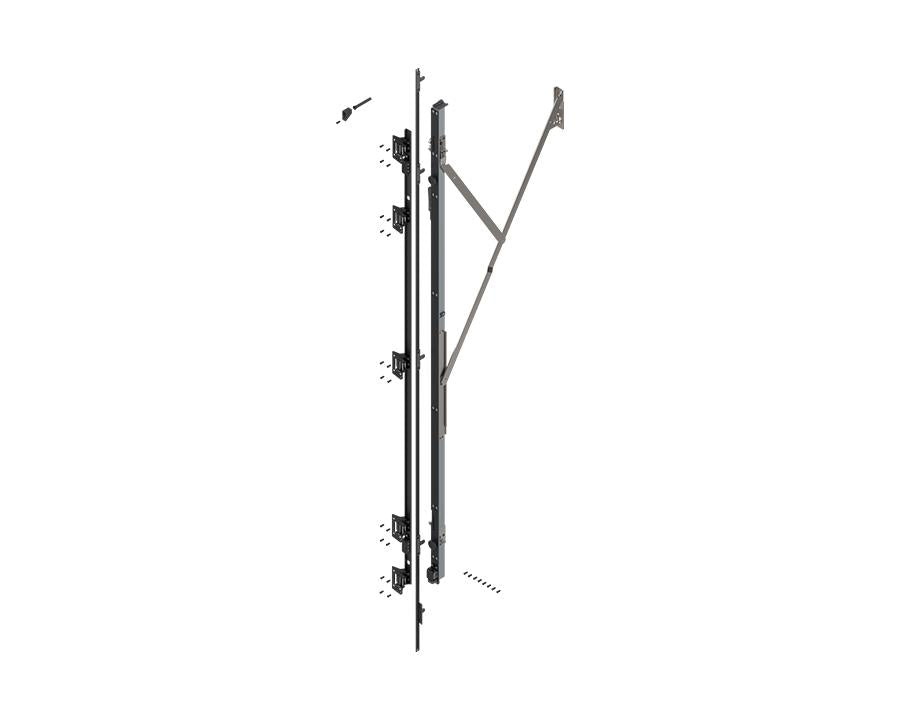

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 1957 – 2106mm. Right. 801T2000.R2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge bracket
• Application: Made for REVEGO uno system
• Length: 1907 mm
• Pocket height: Adjustable from 1957 to 2106 mm
• Material: Zinc-plated steel
• Fixing method: Tool-free installation
• Package: Set

Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) is required
• Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Notes:

• The internal dimensions (width x height x depth) set the max space for internal build
• Start designing with the widest front in combined setups
• Tested for 40,000 open/close cycles durability
• Manual force needed is under 70 N, per tests
• Drilling patterns, size specs, and part lists available in Blum Product Configurator

Assembly:

• Requires CNC or Blum MINIPRESS with EASYSTICK for wood machining
• Both horizontal drillings and track cut-outs necessary
• Use Blum’s drilling template for REVEGO pocket connectors for accurate drilling
