SKU:IWBRUHBS2556R2

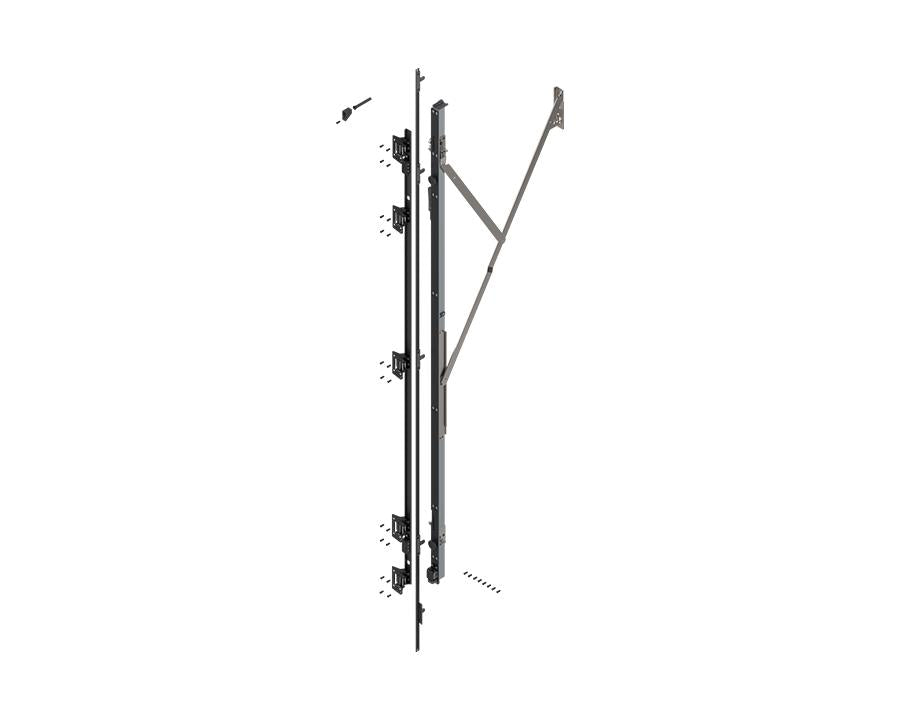

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2107 – 2256mm. Right. 801T3000.R2 by W&B

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2107 – 2256mm. Right. 801T3000.R2 by W&B

Regular price $2,249.28 AUD
Regular price Sale price $2,249.28 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Hinge Bracket by Wilson and Bradley – for REVEGO uno

  • Type: Hinge bracket
  • Application: Designed for REVEGO uno
  • Length: 2507 mm
  • Pocket Height: 2107 – 2256 mm
  • Material: Zinc-plated steel
  • Fixing: Tool-free
  • Package: Supplied as a set

Required Accessories (sold separately):

  • Blum countersunk screw 6 x 14.5 mm (6611450HG) is mandatory
  • Door straightener CBR04DS is recommended for all REVEGO uno & duo systems

Key Details:

  • Internal dimensions (width x height x depth) define max space for internal components
  • Start by designing the widest front in multi-front setups
  • Tested durability up to 40,000 open/close cycles
  • Manual force required is under 70 N based on durability testing
  • Drilling templates, cut-to-size specs, and parts lists available via Blum Product Configurator

Installation Tips:

  • Wood parts must be machined using CNC or Blum MINIPRESS with EASYSTICK
  • Horizontal drillings and track cut-outs are essential
  • Use Blum’s drilling template for accurate pocket connector positioning
